RT-SVX076A-EN
19

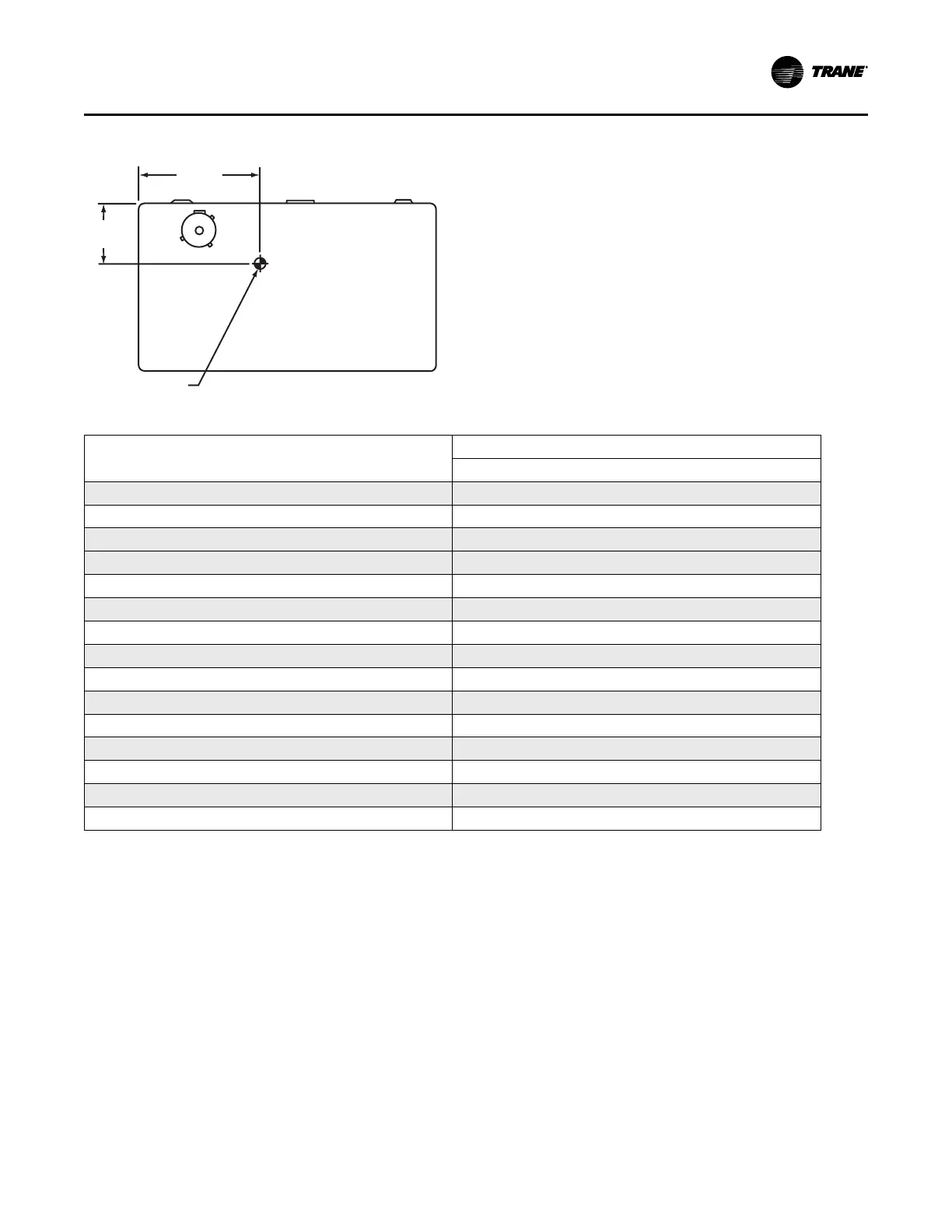

Figure 10. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 2. Factory installed options (FIOPS)/accessory net weights (lb)
Accessory
TZJ150-300
12.5, 15, 17.5, 20, 25 Tons
Barometric Relief 40
Economizer 91
Electric Heaters 75
Low Leak Economizer - Downflow 150
Low Leak Economizer - Horizontal 180
Oversized Motor
(a)
30
Powered Convenience Outlet 50
Powered Exhaust 110
Reheat Coil 33
Roof Curb 235
Smoke Detector, Supply
5
Smoke Detector, Return
5
Through-the-Base Electrical
10
Unit Mounted Circuit Breaker 10
Unit Mounted Disconnect 10
Notes:
1. Weights for options not listed are less than 5 pounds.
2. Net weight should be added to unit weight when ordering factory-installed accessories.
3. Weights are approximate.
(a)
Oversized motor only allowed on the 25 ton.
Dimensions and Weights
