18-EB30D1-1G-EN
5
Step 2 — Determine Unit Clearances

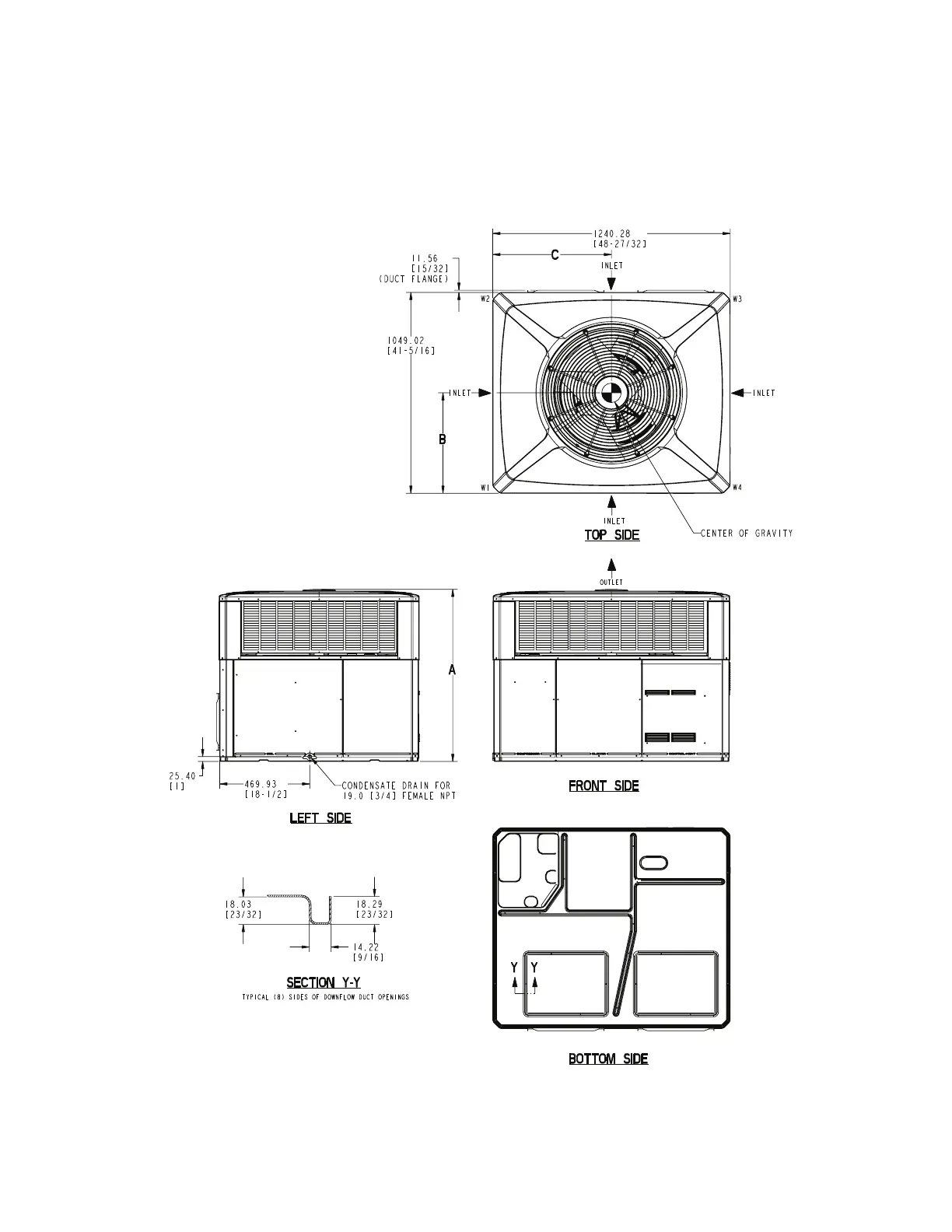

Figure 1. 2 — 3 TON MODELS
Note: The view labeled Bottom Side
represents the base as viewed looking
up from underneath the unit.
