8
18-EB30D1-1G-EN

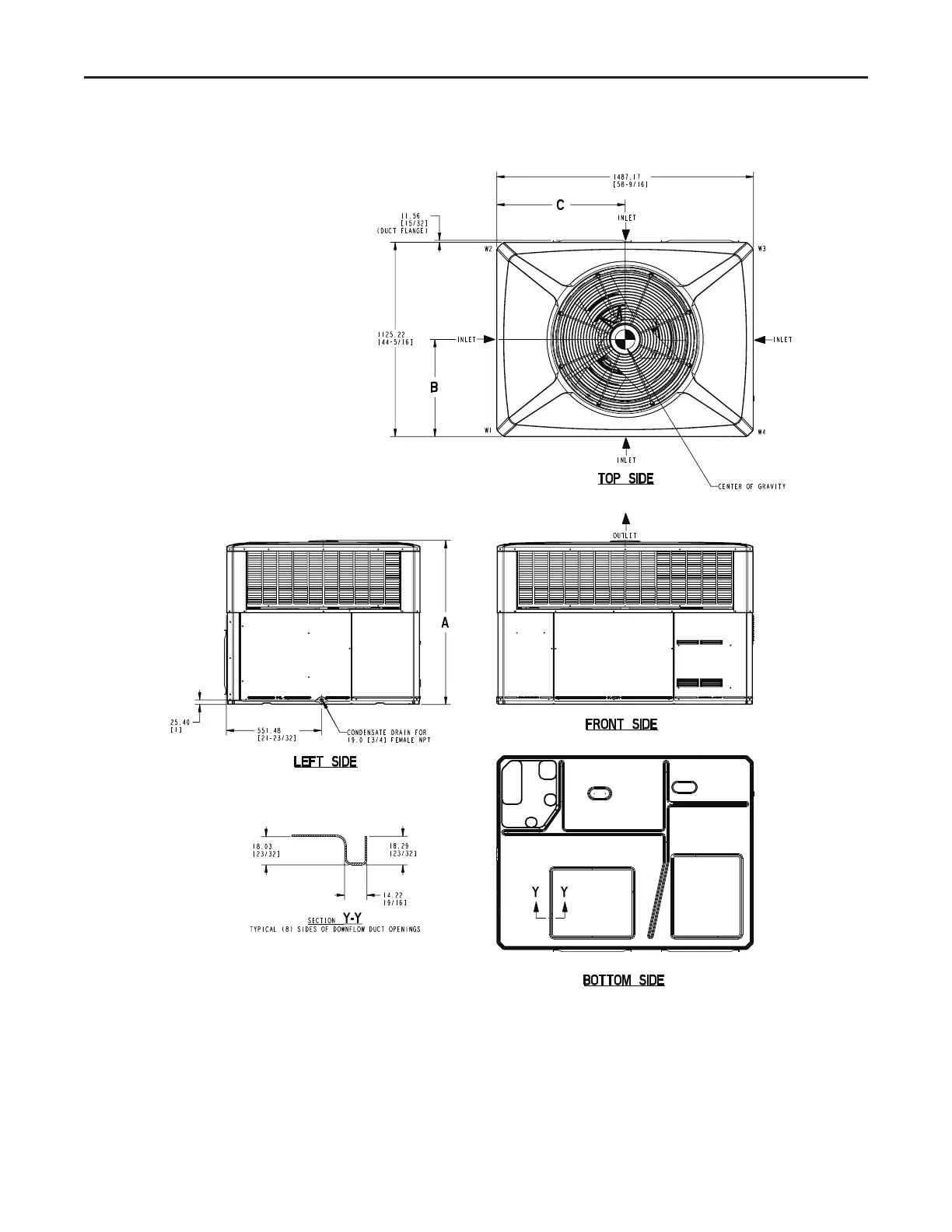

Figure 4. 3.5 — 5 TON MODELS
Note: The view labeled Bottom Side
represents the base as viewed looking
up from underneath the unit.
SStteepp22——DDeetteerrmmiinneeUUnniittCClleeaarraanncceess
