Trane 4TTX7 User Manual

18-AC125D1-1A-EN 16 Jun 2022
Supersedes (New)
Trane - by Trane Technologies (NYSE: TT), a
global climate innovator - creates comfortable,
energy efficient indoor environments for com-
mercial and residential applications. For more
information, please visit trane.com or
tranetechnologies.com.
The AHRI Certified mark indicates Trane U.S. Inc. participation in
the AHRI Certification program. For verification of individual certi-
fied products, go to ahridirectory.org.
Trane has a policy of continuous data improvement and it reserves
the right to change design and specifications without notice. We
are committed to using environmentally conscious print practices.
© 2022 Trane

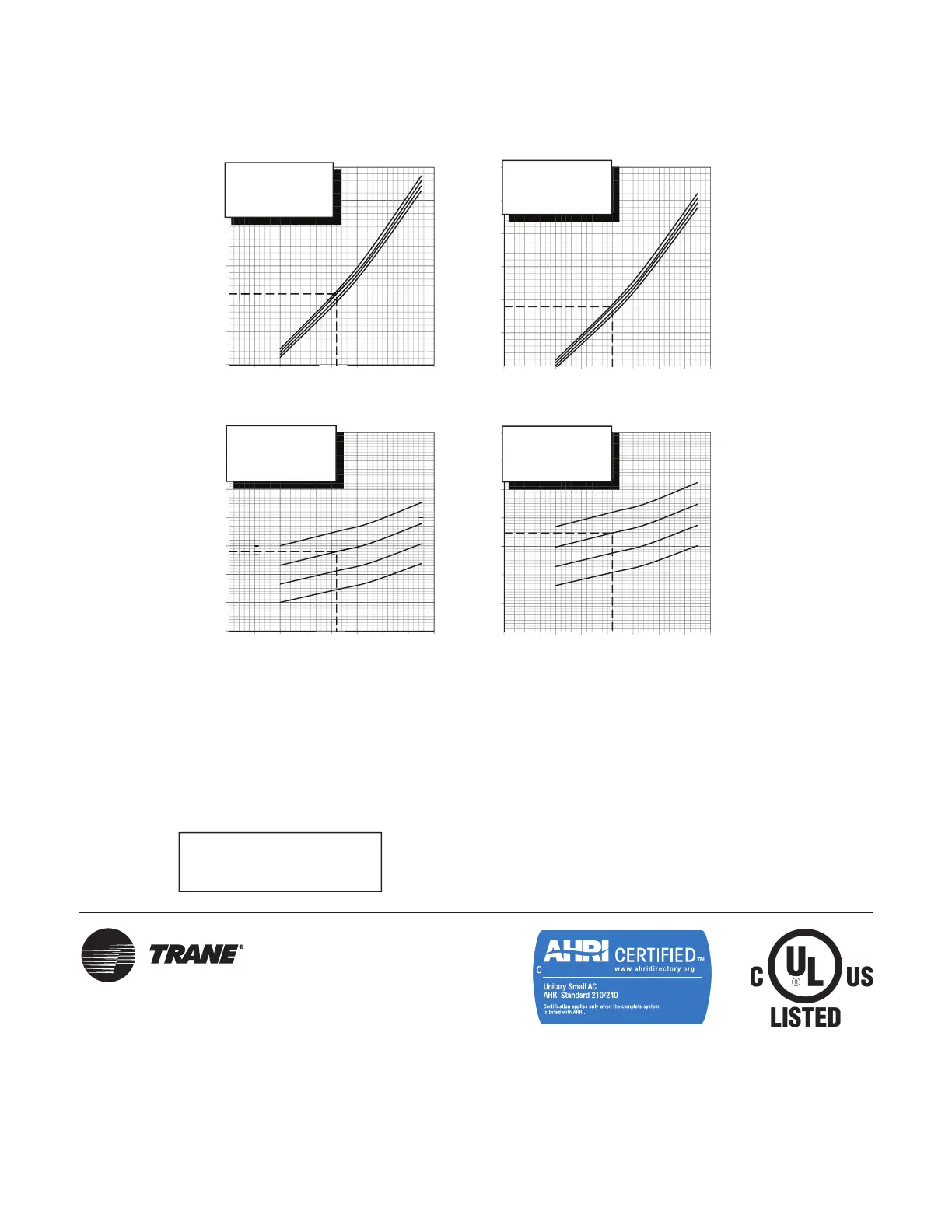

PRESSURE CURVES FOR4TTX7060E1
FIRSTSTAGE SECONDSTAGE
TAM7B0C60H51 TAM7B0C60H51
CoolingwithThermal ExpansionValve CoolingwithThermal ExpansionValve
LIQUID PRESSURE (PSIG)
OUTDOOR TEMPERATURE(Degree F)
SUCTION PRESSURE (PSIG)
OUTDOOR TEMPERATURE(Degree F)
COOLING PERFORMANCE CAN BE CHECKED WHEN THE OUTDOORTEMP IS ABOVE65DEG F.
TO CHECK COOLING PERFORMANCE, SELECT THEPROPER INDOOR CFM, ALLOWPRESSURES TO STABILIZE. MEASURE INDOOR WETBULB
TEMPERATURE, OUTDOORTEMPERATURE, LIQUID ANDSUCTION PRESSURES. ON THEPLOTS LOCATE OUTDOORTEMPERATURE (1);
LOCATE INDOOR WETBULB(2); FIND INTERSECTION OF OD TEMP. & ID W.B. (3); READ LIQUID (4) OR SUCTION(5) PRESSURE IN LEFT COLUMN.
EXAMPLE: FIRSTSTAGE EXAMPLE: SECOND STAGE
(1) OUTDOOR TEMP. 82 F. (1) OUTDOOR TEMP. 82 F.
(2) INDOOR WETBULB67F. (2) INDOOR WETBULB67F.
(3)AT INTERSECTION (3)AT INTERSECTION
(4)LIQUIDPRESSURE @1160CFM IS 307PSIG (4)LIQUIDPRESSURE@1515 CFM IS 289 PSIG
(5)SUCTION PRESSURE @1160CFM IS 138PSIG (5 )SUCTION PRESSURE @1515 CFM IS 145PSIG
INTERCONNECTINGLINES
ACTUAL:
GAS-1-1/8" O.D.
LIQUID PRESSURE SHOULD BE +/-10PSI OF CHART
LIQUID -3/8"O.D.
SUCTION PRESSURESHOULDBE+/- 3PSIG OF CHART
DWG.NO.4TTX7060E1
110
120
130
140
150
160
170
180
40 50 60 70 80 90 100 110 120
110
120
130
140
150
160
170
180
40 50 60 70 80 90 100110 120
200
250
300
350
400
450
500
40 50 60 70 80 90 100110 120
200
250
300
350
400
450
500
40 50 60 70 80 90 100 110 120
(1)
(1)
(3)
(3)
(5)
(4)
(2)
(2)
INDOOR ENTERING
WETBULBCURVES
TOPTOBOTTOM71,
67, 63 AND59DEG F.
INDOOR ENTERING
WETBULB CURVES
TOPTOBOTTOM71,
67, 63 AND59DEG F.
INDOOR ENTERING
WETBULBCURVES
TOPTOBOTTOM 71,
67, 63 AND59DEG F.
INDOOR ENTERING
WETBULB CURVES
TOPTOBOTTOM71,
67, 63 AND59DEG F.
(2)
(1)
(4) (3)
(2)
(1)
(3)
(5)
