8
18-EB31D1-1F-EN

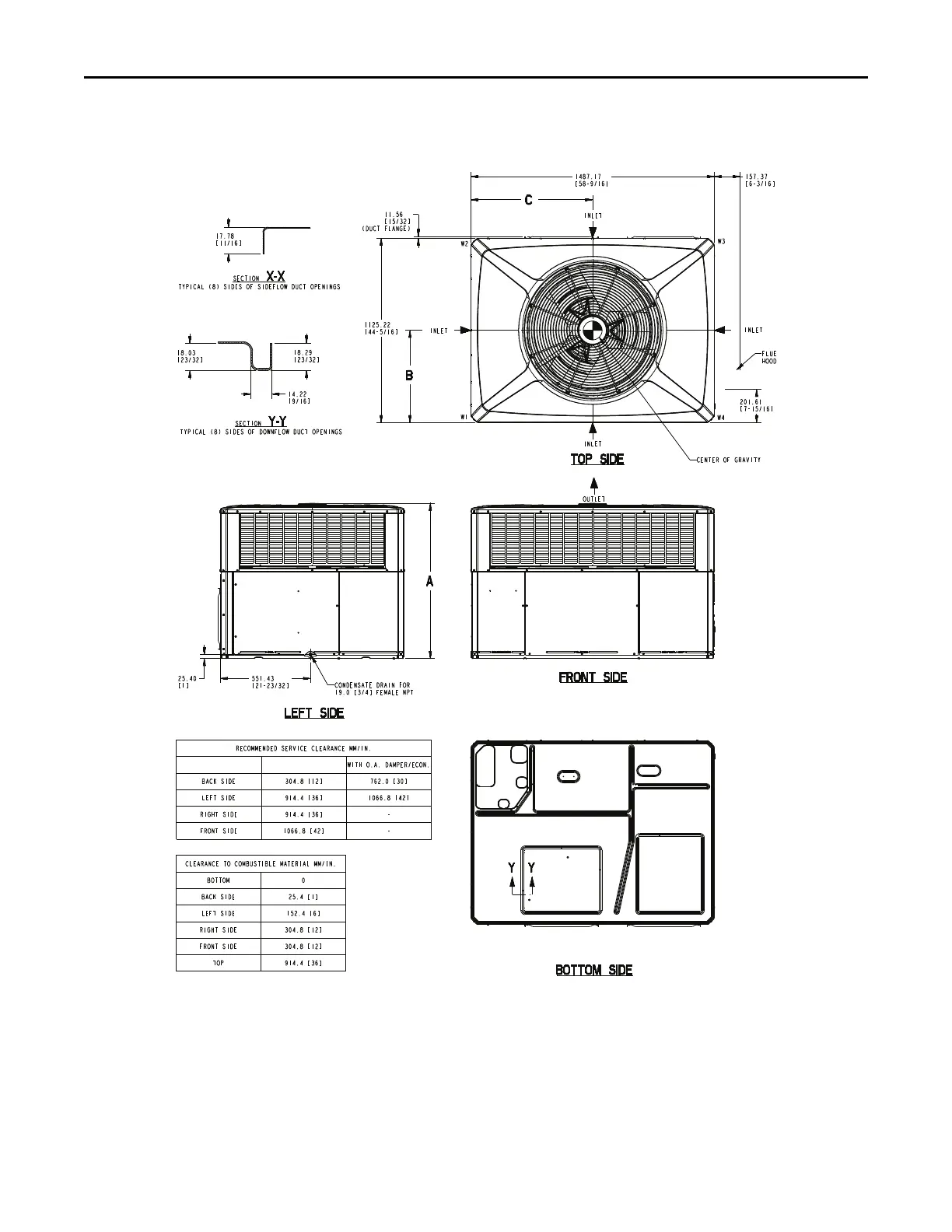

Figure 4. 4YCC4042–4060
Note: The view labeled
“Bottom Side” represents
the base as viewed looking
up from underneath the unit.
SStteepp 22 —— DDeetteerrmmiinnee UUnniitt CClleeaarraanncceess
