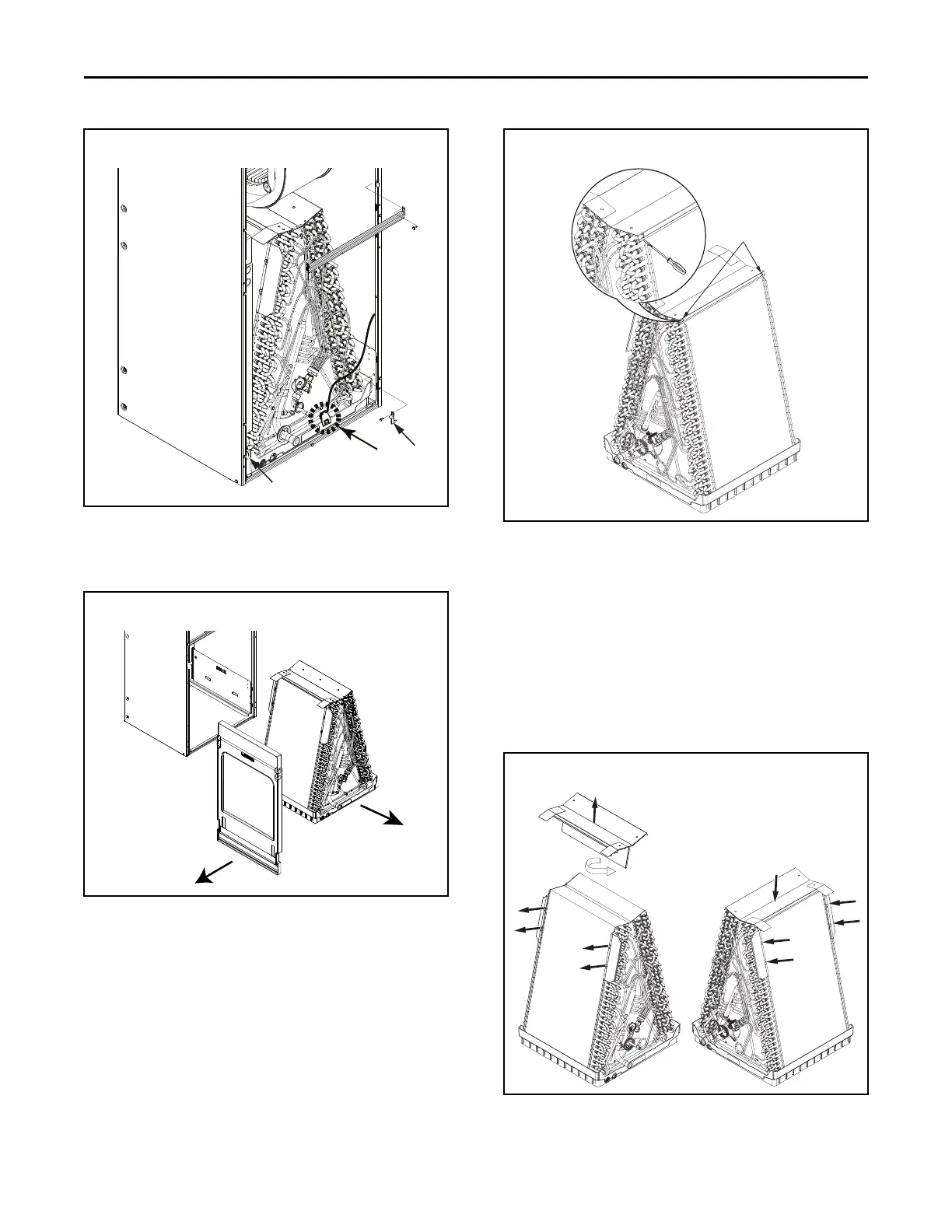

Figure 16. All Models
5. Make note of the horizontal drain pan orientation
(up/down).
6. Slide the coil assembly out.
Figure 17. All Models
IImmppoorrttaanntt:: For Horizontal Right applications, ON
SOME MODELS the top panel assembly of
the coil must be rotated for proper
condensate management.
7. On the right side of the top baffle, position a
flathead tip underneath the top baffle flange and
pivot the screwdriver downward to release the front
tab as shown below.
8. Repeat for right rear tab to release top baffle
assembly from coil.
Figure 18. All models
9. Rotate 180 degrees and snap all four corner tabs to
lock in place.
10. Remove left side water diverter brackets and screws
and reinstall on the right side.
The coil slabs are different and the mount hole
locations will vary. See the illustrations on the
following pages that correspond to the unit tonnage to
see the correct mounting position of the water diverter
bracket.
IImmppoorrttaanntt:: The water diverter brackets are not
symmetrical and will vary by tonnage.
Figure 19. All models
UUnniitt CCoonnvveerrssiioonn IInnssttrruuccttiioonnss
