Trane 7½ - 20 Tons - Page 48

48 SSP-PRC001-EN
Dimensional Data
5 - 10 Ton

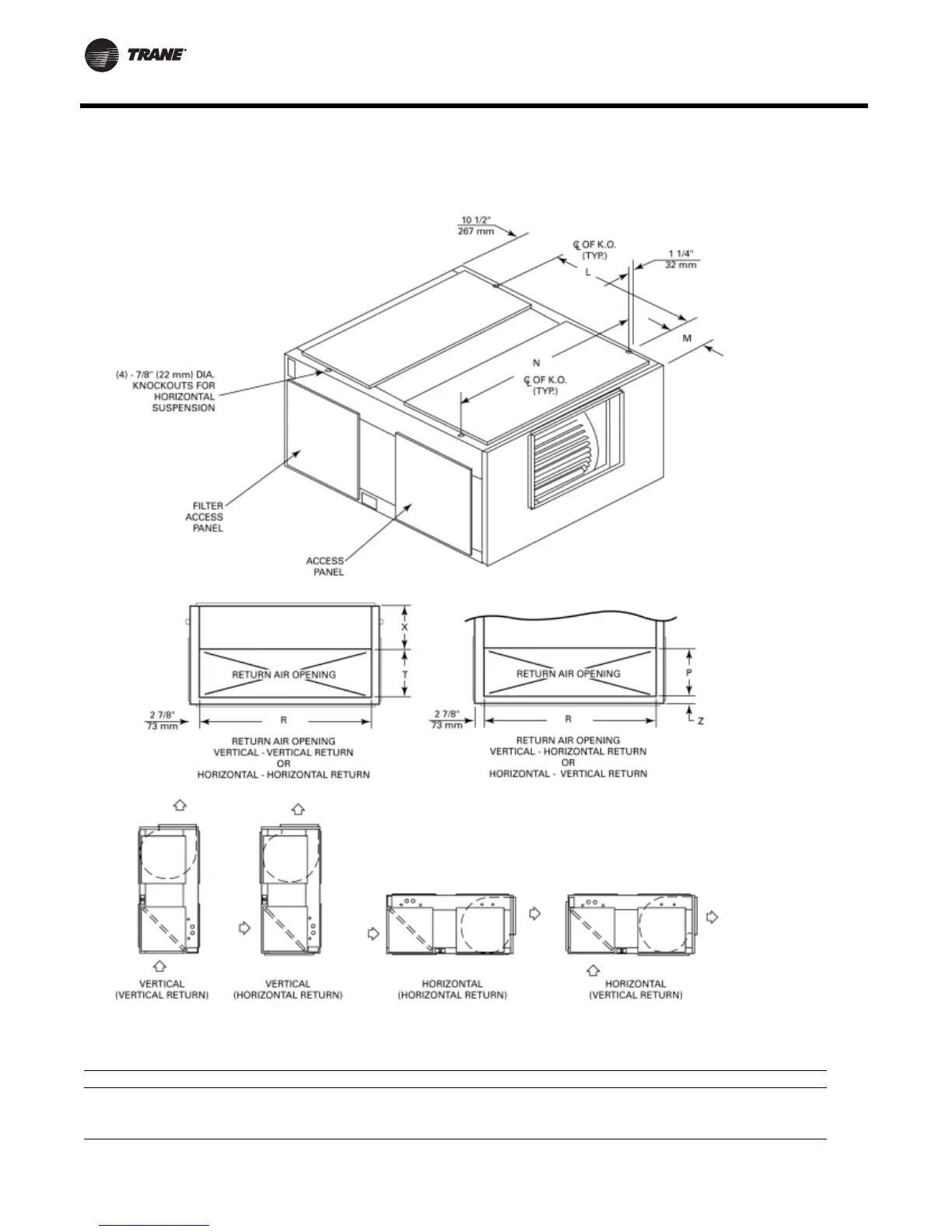

Figure 26. 5-10 Tons TWE060A, 090A, 120A; TWE060B, 090B, 120B Air Handlers
Table 41. Air Handler Dimensions (in.)
Tons Model No. L M N P R T X Z
5 TWE060A,060B 34-5/8 2 7/8 35-5/8 12 1/4 32-1/4 12 1/2 7 5/8 2
7½ TWE090A, 090B 36-7/8 6 5/8 45-1/8 16-1/8 41-3/4 16-1/4 6 7/8 1 3/4
10 TWE120A, 120B 36-7/8 6 5/8 61-1/8 16-1/8 57-3/4 16-1/4 6 7/8 1 3/4
