Trane 7½ - 20 Tons - Dimensional Data - 71;2 & 10 Ton Air Handlers

SSP-PRC001-EN 47
Dimensional Data
7½ & 10 Ton

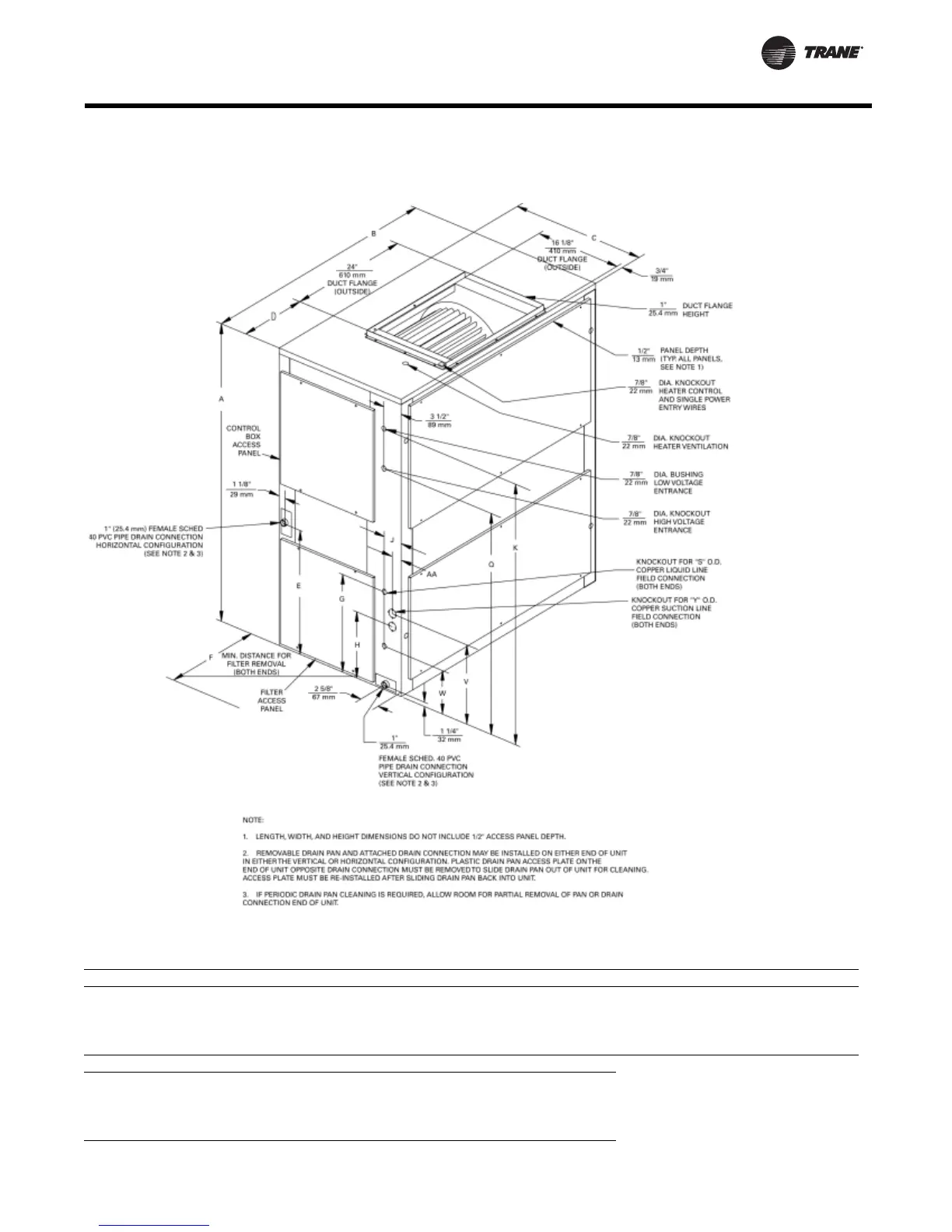

Figure 25. 7½ & 10 Tons TWE090A, 120A; TWE090B, 120B Air Handlers. All dimensions are in inches.
Table 40. Air Handler Dimensions (in.)
Tons Model No. A B C D E F G H J K
7½ TWE090A 54 47-1/2 25 11-3/4 22-3/8 22 — 17-3/4 4 45-1/4
7½ TWE090B 54 47-1/2 25 11-3/4 22-3/8 22 20-1/8 16 2-1/8 45-1/4
10 TWE120A 54 63-12 25 19-3/4 22-3/8 22 — 17-3/4 4 45-1/4
10 TWE120B 54 63-1/2 25 19-3/4 22-3/8 22 20-1/8 16 2-1/8 45-1/4
Tons Model No. Q S V W Y AA
7½ TWE090A 38-1/8 1/2 — 15 1-3/8 2
7½ TWE090B 38-1/8 3/8 18-3/4 14 1-1/8 2-1/8
10 TWE120A 38-1/8 1/2 — 15 1-3/8 2
10 TWE120B 38-1/8 3/8 18-3/4 14 1-1/8 2-1/8
