SSP-PRC001-EN 53
Dimensional Data
Accessories, Electric Heater

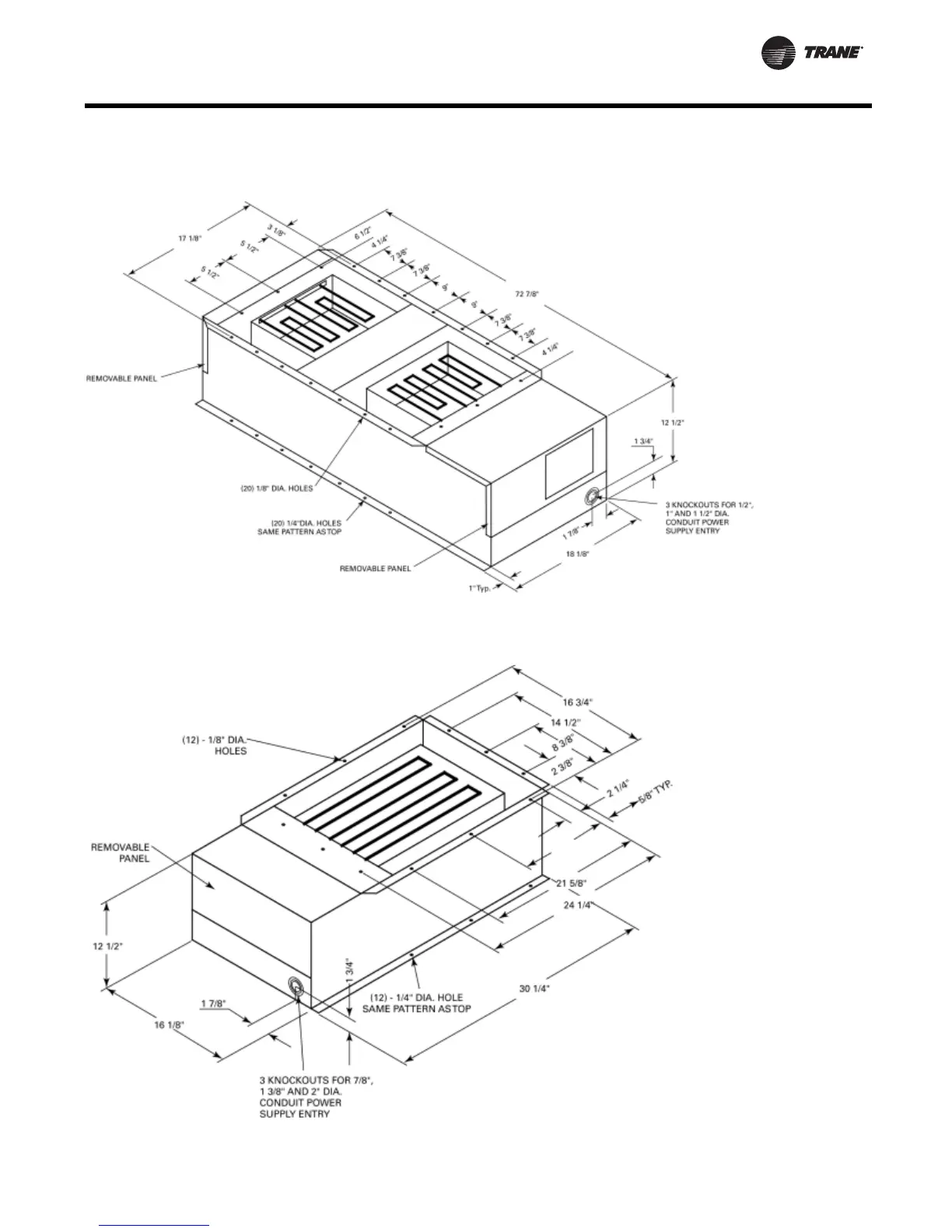

Figure 33. Electric Heater for 5, 7½ and 10 Ton Air Handlers. All dimensions are in inches.
Figure 34. Electric Heater for 15 and 20 Ton Air Handlers. All dimensions are in inches.
