54 SSP-PRC001-EN
Dimensional Data
Accessories, Discharge Plenum and Grille
Table 44. Discharge Plenum and Grille
Tons Model No. A B C
5 BAYPLNM015 37-15/16 21-15/16 28
7½ BAYPLNM016 47-1/2 25 28
10 BAYPLNM017 63-1/2 25 28
Table 45. Discharge Plenum and Grille Dimensions (in.). For use with Electric Heat
Tons Model No. A B C
5 BAYPLNM025 37-15/16 21-15/16 29
7½ BAYPLNM026 47-1/2 25 29
10 BAYPLNM027 63-1/2 25 29
15 BAYPLNM028 79-1/2 27-11/16 35
20 BAYPLNM029 92-1/2 30-7/16 35

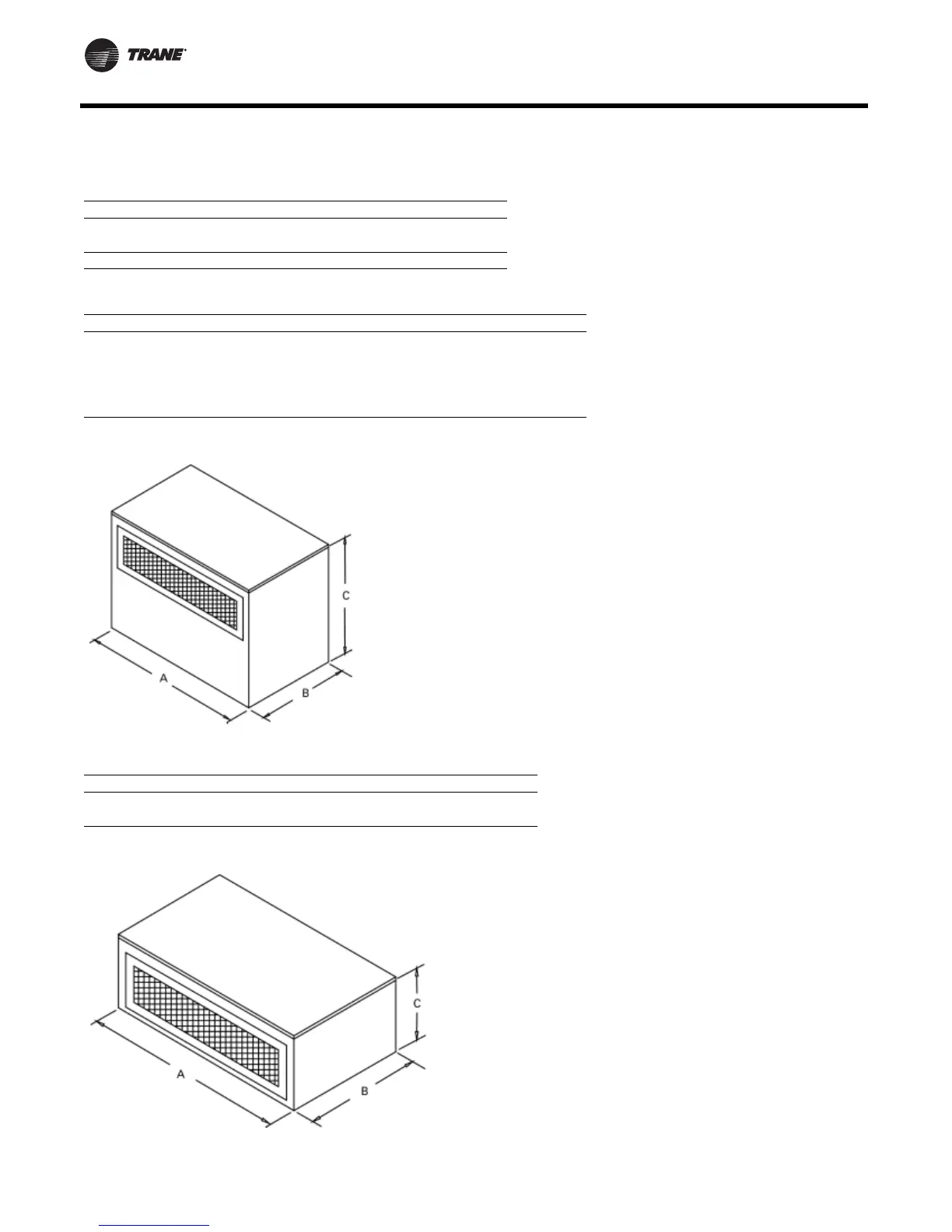

Figure 35. Discharge Plenum and Grille (with Electric Heat)
Table 46. Discharge Plenum and Grille Dimensions (in.) - No Heat
Tons Model No. A B C
15 BAYPLNM018 79-1/2 27-11/16 22
20 BAYPLNM019 92-1/2 30-7/16 24
Figure 36. Discharge Plenum and Grille (without Electric Heat)
