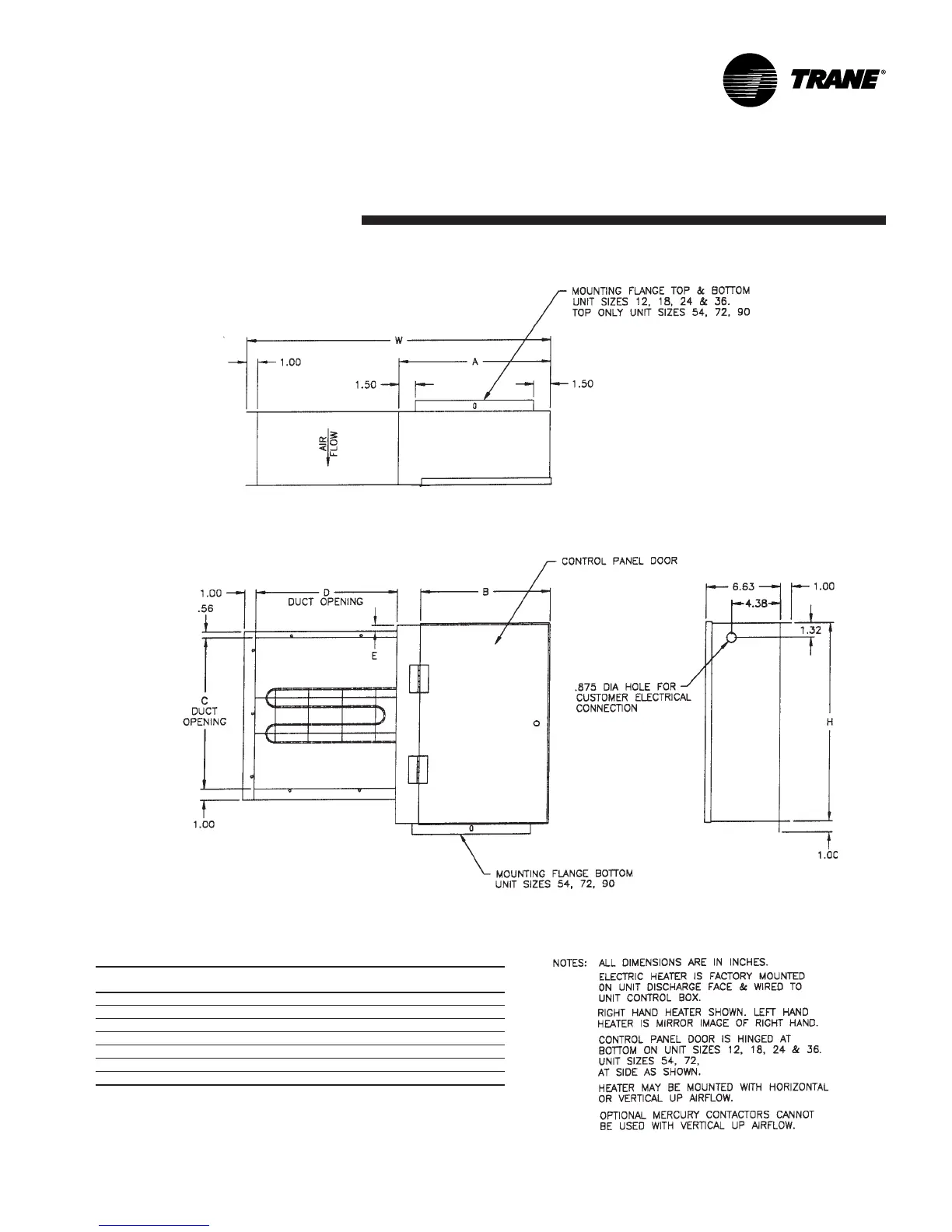

Trane BCVC - Electric Heat Dimensions and Weights

BCXC-SVX01A-EN 13
Dimensions
and WeightsInstallation
Electric Heat
Electric Heat Dimensions and Weights, in-lbs.
Unit
Size H W A B C D E weight
12 14.06 17.88 8.13 6.79 10.50 7.75 0.03 10.0
18 14.06 19.88 10.13 8.79 10.50 7.75 0.03 10.8
24 18.06 21.25 7.63 6.29 13.50 12.63 0.80 11.3
36 18.06 27.25 13.63 12.29 13.50 12.63 0.80 12.8
54 18.06 27.25 13.63 11.67 13.50 12.63 0.22 16.0
72 18.06 27.25 13.63 11.67 13.50 12.63 0.22 17.4
90 18.06 27.25 13.63 11.67 13.50 12.63 1.16 19.2
& 90 ARE HINGED
top view
front view
right side view
