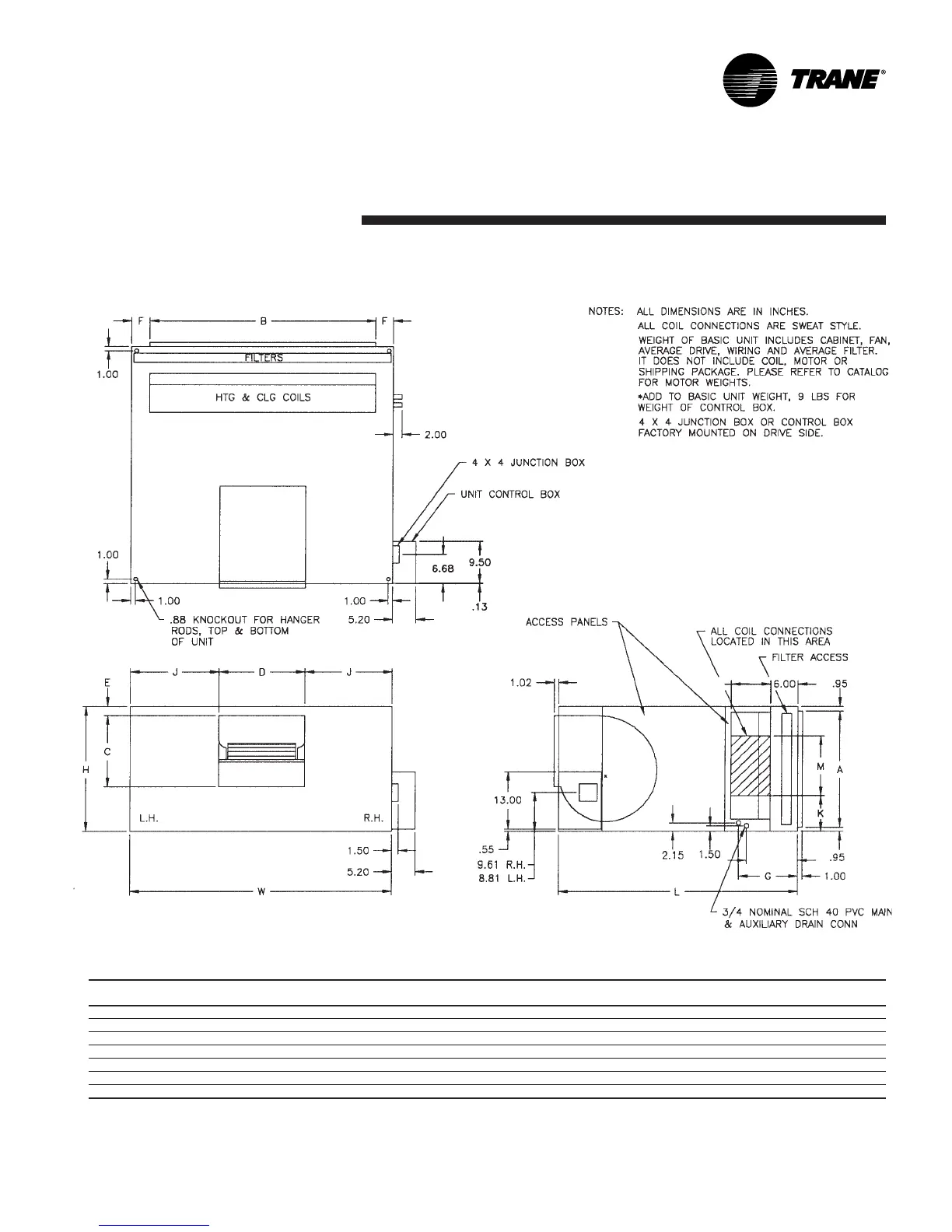

Trane BCVC - Horizontal Blower Coil Dimensions and Weights

BCXC-SVX01A-EN 9
Dimensions
and WeightsInstallation
Horizontal Blower Coil
Horizontal Blower Coil Unit Dimensions and Weights, in-lbs.
Unit unit
Size H W L A B C D E F G (RH) G (LH) J K M weight
12 14.00 24.00 40.75 12.09 18.00 10.56 7.09 0.55 3.00 10.79 14.79 8.46 2.82 6.80 71.5
18 14.00 28.00 40.75 12.09 22.00 10.56 7.09 0.55 3.00 10.79 14.79 10.46 2.82 6.80 77.4
24 18.00 28.00 46.00 16.09 22.00 13.56 12.56 1.30 3.00 10.79 14.79 7.72 3.58 9.00 104.1
36 18.00 40.00 46.00 16.09 34.00 13.56 12.56 1.30 3.00 10.79 14.79 13.72 3.57 9.00 121.6
54 22.00 40.00 49.00 20.09 34.00 13.56 12.56 0.72 3.00 10.79 14.79 13.72 4.21 10.43 138.9
72 22.00 48.00 49.00 20.09 40.00 13.56 12.56 0.72 4.00 10.79 14.79 17.72 4.18 10.43 152.2
90 28.00 48.00 52.00 26.09 40.00 13.56 12.56 1.66 4.00 10.79 14.79 17.72 4.81 15.61 174.8
11.25
12.79
front view
top view
right side view
*NOTE: ON UNITS WITHOUT A
BOTTOM FILTER ACCESS SECTION
*
