CAUTION: in case two units have to be installed side by side, the distance of respect must be doubled.
After the unit has reached the final position, fix the anti-vibration bolts.
4.3
CONTROL OF COMPRESSOR FASTENING
Compressors are fitted on shock absorbers. For fixing through spring anti-vibration mounts, remove
blockages put to fasten the compressors, as indicated on the label on compressors body.
Side of the unit that can be placed next to the wall. This means that with the unit at a distance less than the
optimal one of 700 mm the accessibility to some components is worse but in any case is ensured even if the
unit is leaning against the wall.

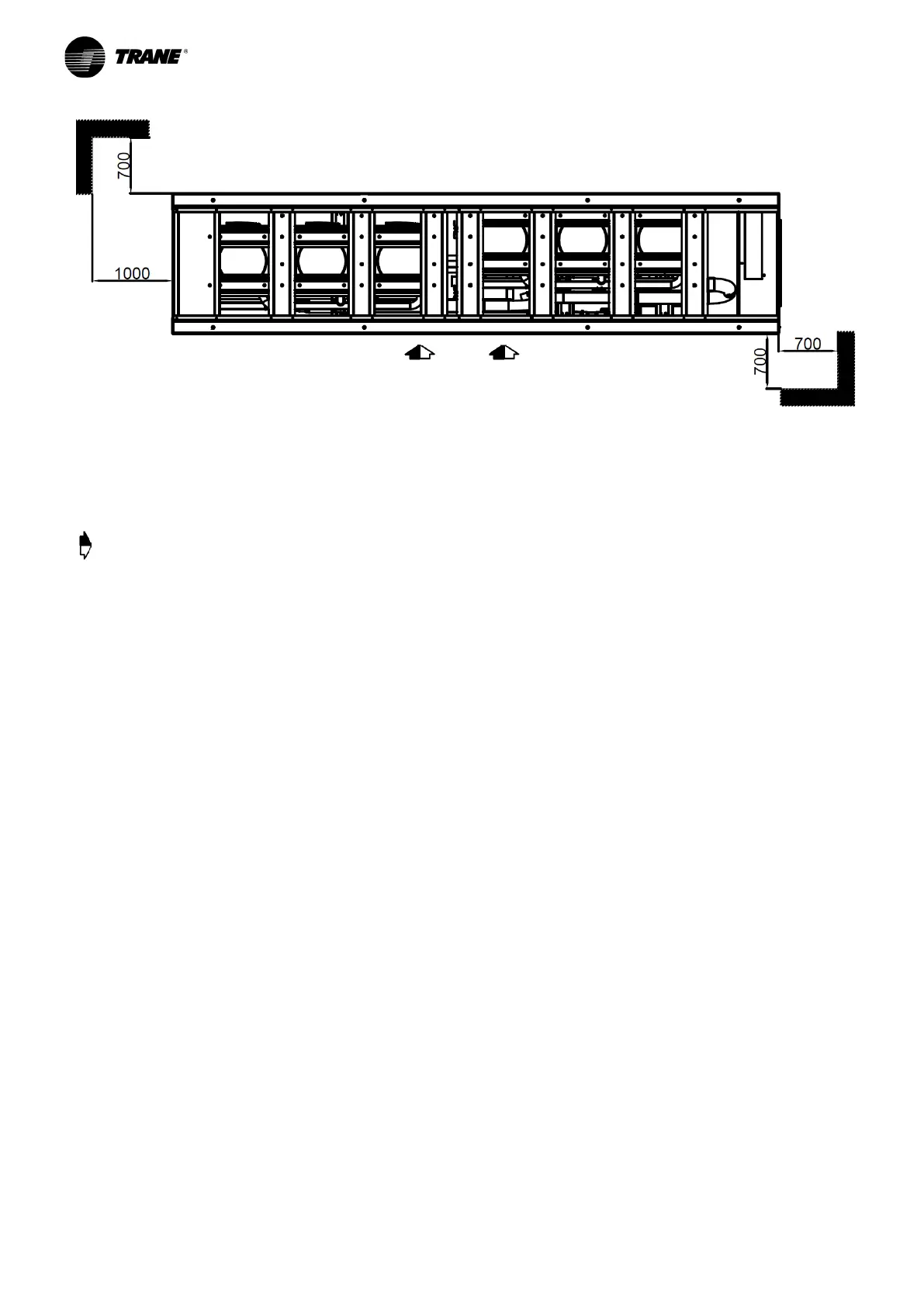

Figure 9 - minimum space requirements [mm] for
platform 4 units (sizes with two refrigerant circuits
-
CGWF SE sizes from 555 to 700, CGWF HE sizes
from 585 to 700 and CXWF sizes from 670 to 835)
