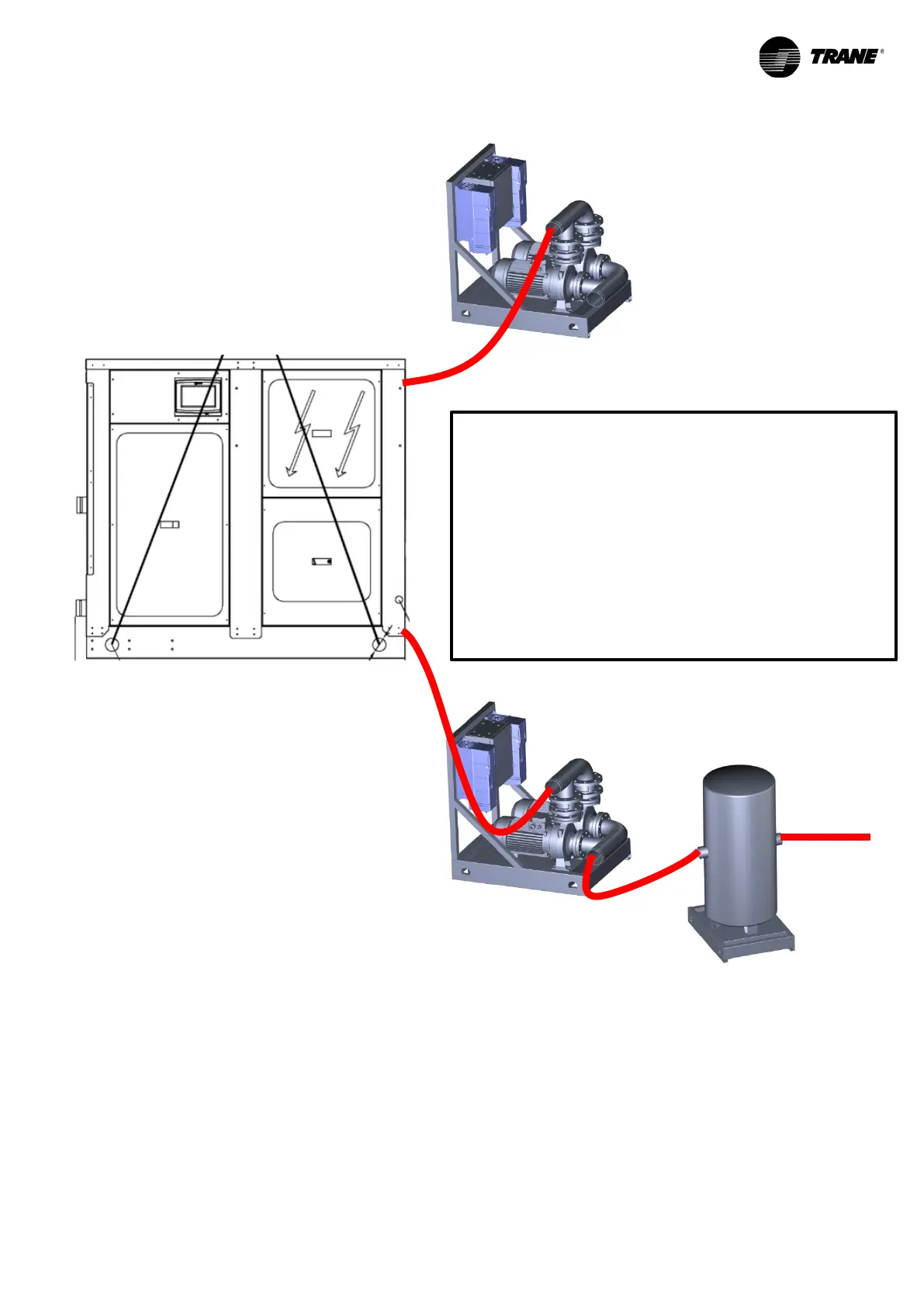

Example of a possible configuration:
IMPORTANT: No hydraulic kits are provided for the biggest 4 sizes of CGWF HE (585 ÷ 700) and CXWF (670 ÷ 835)
Optional Hydraulic accessories on the price list
- “Y” water strainer (sold separately), consists of body and stainless steel mesh (*), with replaceable filter through the
inspection cap.
- Automatic water filling (sold separately).
- Water gauges kit
- Victaulic kit (**)
IMPORTANT: water strainer and flow switch must be installed on water circuit (user side) in order to keep the warranty.
Since no water flow control device is installed on the unit, the flow switch is always provided as a loose accessory
(optional) and must be installed by the customer.
(*) Water strainer with meshes not over 0.5mm
CGWF / CXWF
without hydraulic kit
Hydraulic and electrical connections between hydraulic kit(s)
and the unit are at customer care.
Please consult the electrical drawing of the unit and the
electrical drawing of the hydraulic kit
electrical connections between them.
Terminals to be connected have the same labels on the
electrical drawing of the unit and on the electrical drawing of
the hydraulic kit. For further support please contact Trane.
The hydraulic kit requires a power supply line of its own.
Double pump hydraulic kit
Double pump hydraulic kit with
