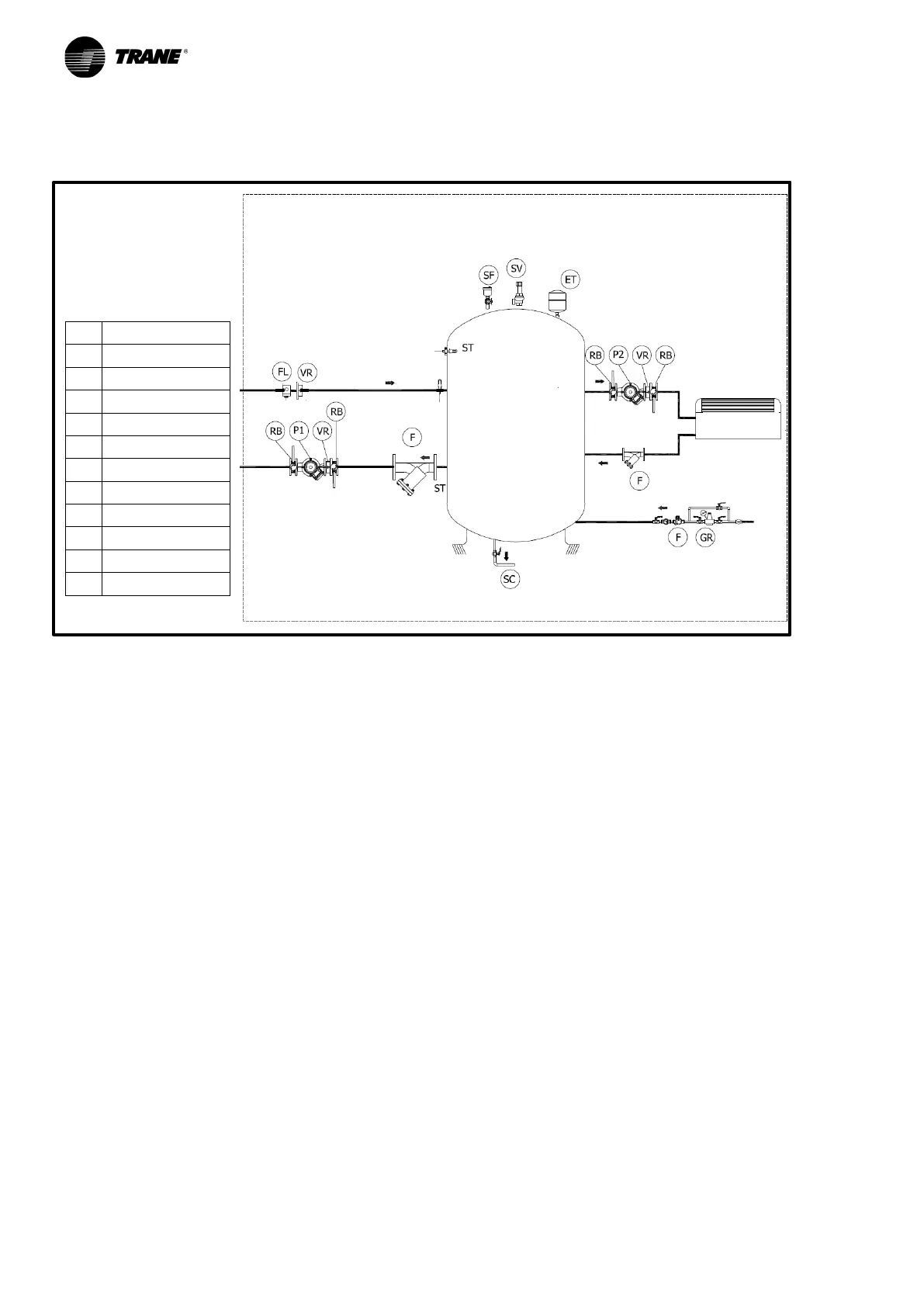

7.6.3 Customer plant sketch on the condenser side of CGWF SE / CGWF HE / CXWF units
with no on board unit pump
Figure 25
IMPORTANT: the steel mesh strainer in the customer plant is obligatory in order
to keep the warranty, the flow switch is optional
P1 Primary Pump
P2 Secondary Pump
ST Temperature Probe
FL Flow Switch
SC Drainage
SF Vent Valve
ET Expansion Vessel
GR Filling group
F Steel Mesh Strainer
VR Check Valve
SV Safety Valve
RB Interception valve
CUSTOMER PLANT
HOT WATER
TANK
AIR CONDITIONING
WATER PUMP
FANCOIL
