AFDH-SVN01A-EN 27
AFDH Drive Package Specifications

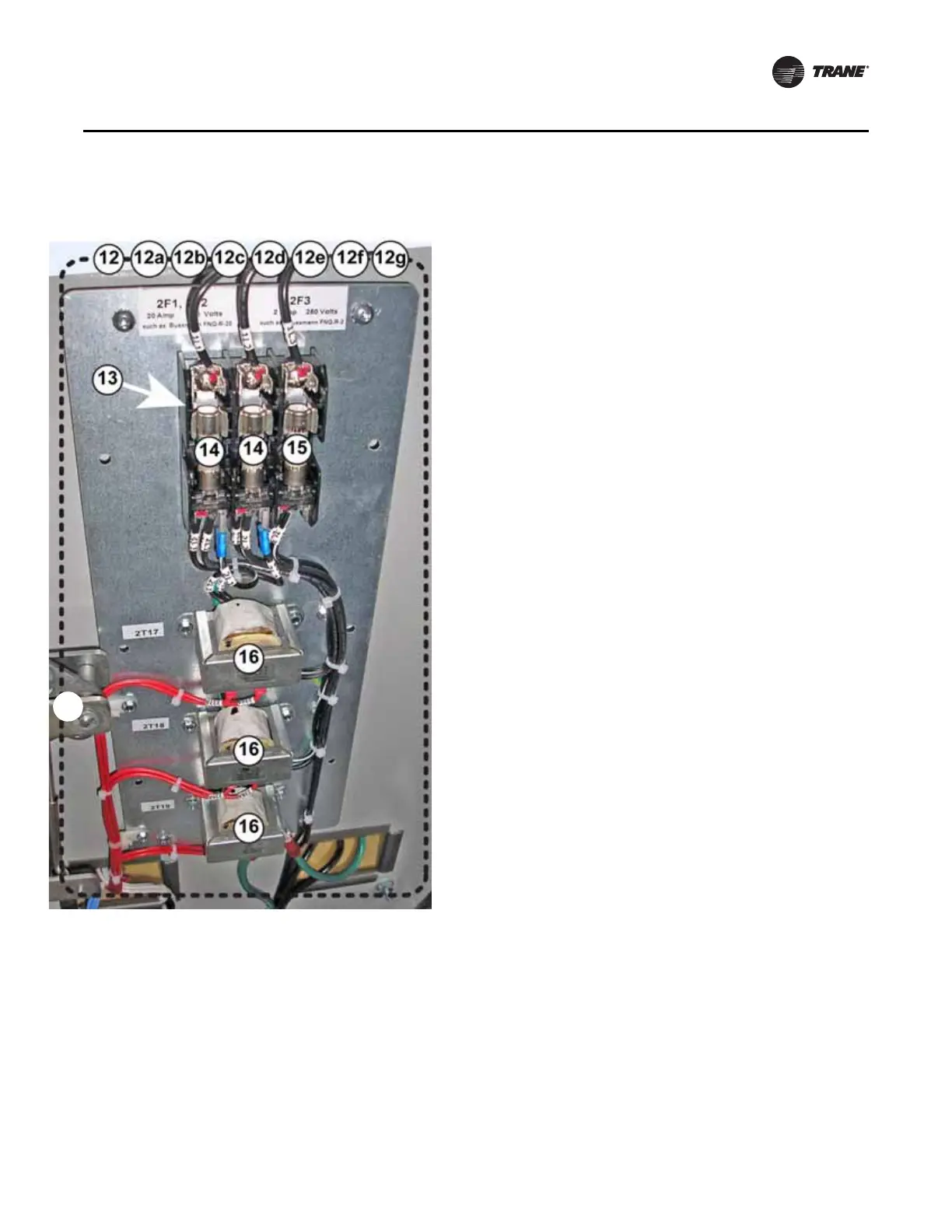

Figure 12. (continued from previous page)
12.Custom enclosure components mounted on left
interior wall of cabinet. For the component part
numbers by drive model size refer to the tables listed
below:
a.D-Frame 302 amp drive see Tabl e 6
b.D-Frame 361 amp drive see Ta bl e 7
c.D-Frame 443 amp drive see Table 8
d.E-Frame 540 amp drive see Tab l e 9
e.E-Frame 590 amp drive see Tab le 10
f.E-Frame 678 amp drive see Tabl e 11
g.E-Frame 730 amp drive see Tab l e 1 2
13.Fuse holder; 3 Pole (for fuses 2F1, 2F2, and 2F3)
14.Left hand fuse = 2F1 and middle fuse = 2F2. Both fuses
have identical voltage and amperage ratings
15.Fuse 2F3
16.Potential Transformers (PTs). From top to bottom: PT
2T17, 2T18, and 2T19. All three PTs have identical
ratings
