Wiring Diagrams
WSHP-SVX01L-EN 11 5

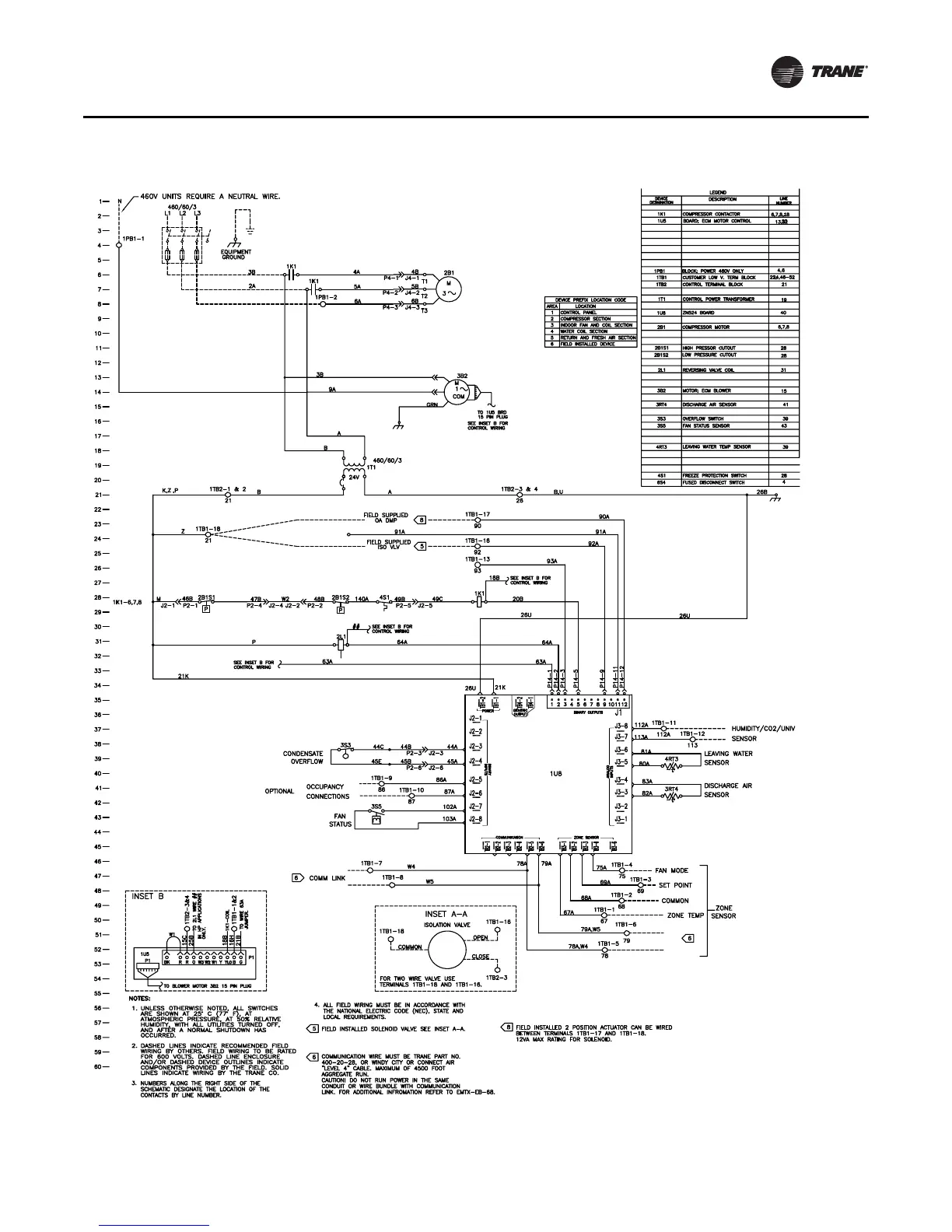

Figure 91. Tracer ZN524 460V-60 Hz - 3 ph
(a)
- (ECM Motor Wiring Diagram)
(a) Wiring diagrams provided in the catalog are generic. A unit specific As Built wiring diagram is located on the unit control panel.
