Unit Dimensions and Weights
12 WSHP-SVX01L-EN
GEV ½-5 tons and EXV 1½-6 tons
clearance dimensions
Access to the unit for service purposes should be provided
at installation. All configurations require an 24 in. (610
mm) surround clearance (see Figure 3, p. 12) from other
mechanical and electrical equipment (where shown) to
enable panel removal from the unit for service/
maintenance ability. Some local codes require a greater
service clearance than listed below. Check all code
requirements prior to unit installations. Units in a free
return application will require more than a 1 in. (25.4 mm)
clearance to provide proper air flow to the units air-to-
refrigerant coil.
GEV 6–10 Tons Clearance Dimensions
Minimum access for service clearances are provided
below (see Figure 4, p. 12). Any one unit side other than
the control panel or return-air side may be placed against
a wall. The unit may be serviced through the three
remaining open sides. Some local codes require a greater
service clearance than listed below. Check all code
requirements prior to unit installations.
GEV 12½–25 Tons Clearance Dimensions
Figure 5, p. 12 outlines the minimum required unit service
clearances. Any one unit side other than the control panel
or return-air side may be placed against a wall. The unit
may be serviced through the three remaining open sides.
Some local codes require a greater service clearance than
listed below. Check all code requirements prior to unit
installations.

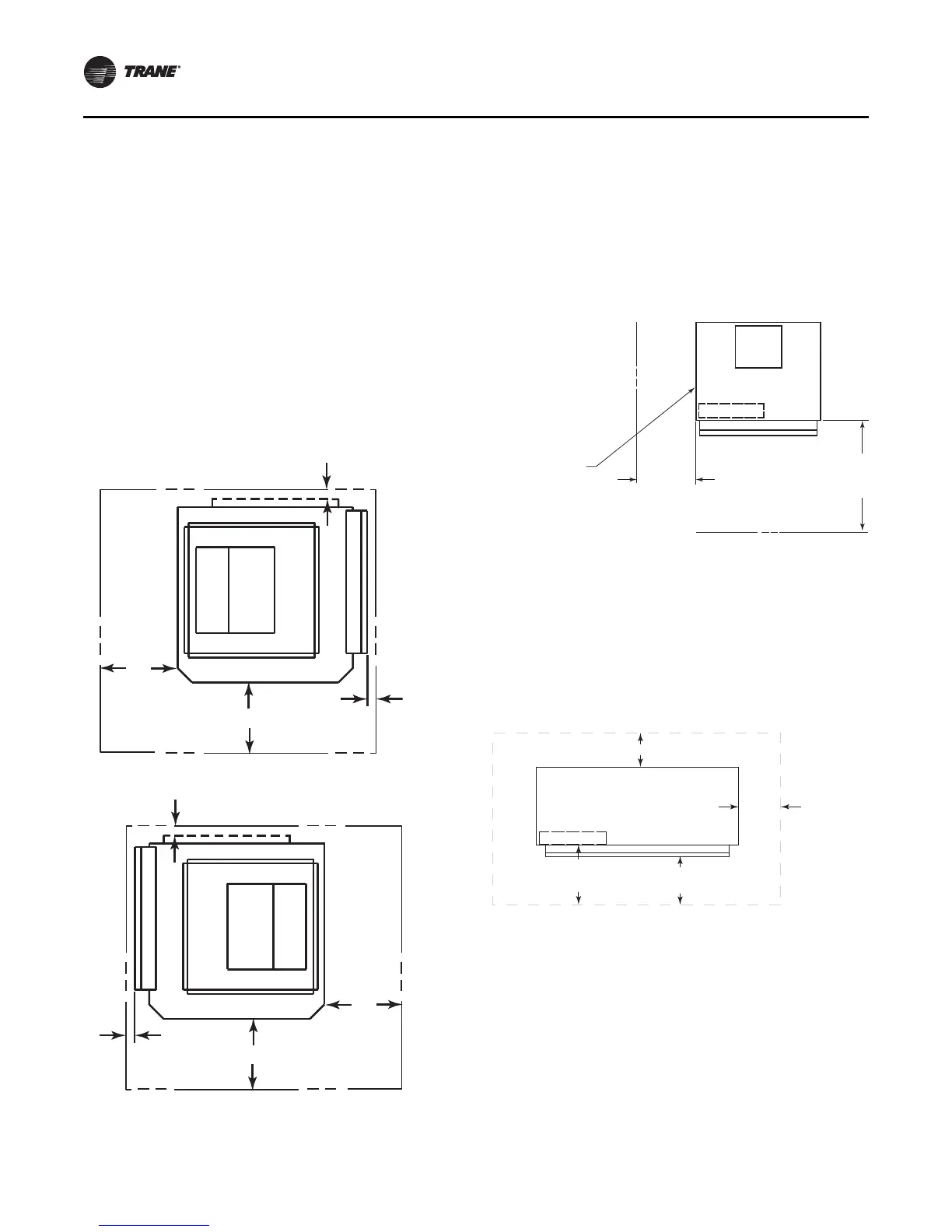

Figure 3. GEV ½-5 tons and EXV 1½-6 tons clearance
dimensions
1"
(25.4)
36"
(914)
1"
(25.4)
24"
(610)
UNIT FRONT
RIGHT RETURN
TOP/BACK SUPPLY
1"
(25.4)
36"
(914)
1"
(25.4)
24"
(610)
UNIT FRONT
LEFT RETURN
TOP/BACK SUPPLY
Figure 4. GEV 6–10 tons clearance
Figure 5. GEV 12½–25 tons clearance
ACCESS PANEL FOR
SHEAVES AND BELTS
20"
(508)
SERVICE
CLEARANCE
FRONT RETURN
TOP SUPPLY
36"
(914)
SERVICE
CLEARANCE
CONTROL BOX
UNIT FRONT
NEC REQ.
MIN. 36" (914)
C.B. TO WALL
CLEARANCE
16" (406) TO
FILTER FRAME
FOR RETURN-AIR
18" (457)
MIN. SERVICE
CLEARANCE FOR
EITHER LEFT
OR RIGHT SIDE
IS 18" (457). FOR
FAN SHAFT REMOVAL,
A 22" (559) CLEARANCE
MUST BE PROVIDED
ON EITHER THE
LEFT OR RIGHT SIDE.
FRONT RETURN-AIR
BACK SUPPLY-AIR
