Trane EXHF - GEV 6-10 T 60 Hz; 6 and 7,5 Ton 50 Hz, Waterside Economizer

Unit Dimensions and Weights
WSHP-SVX01L-EN 49

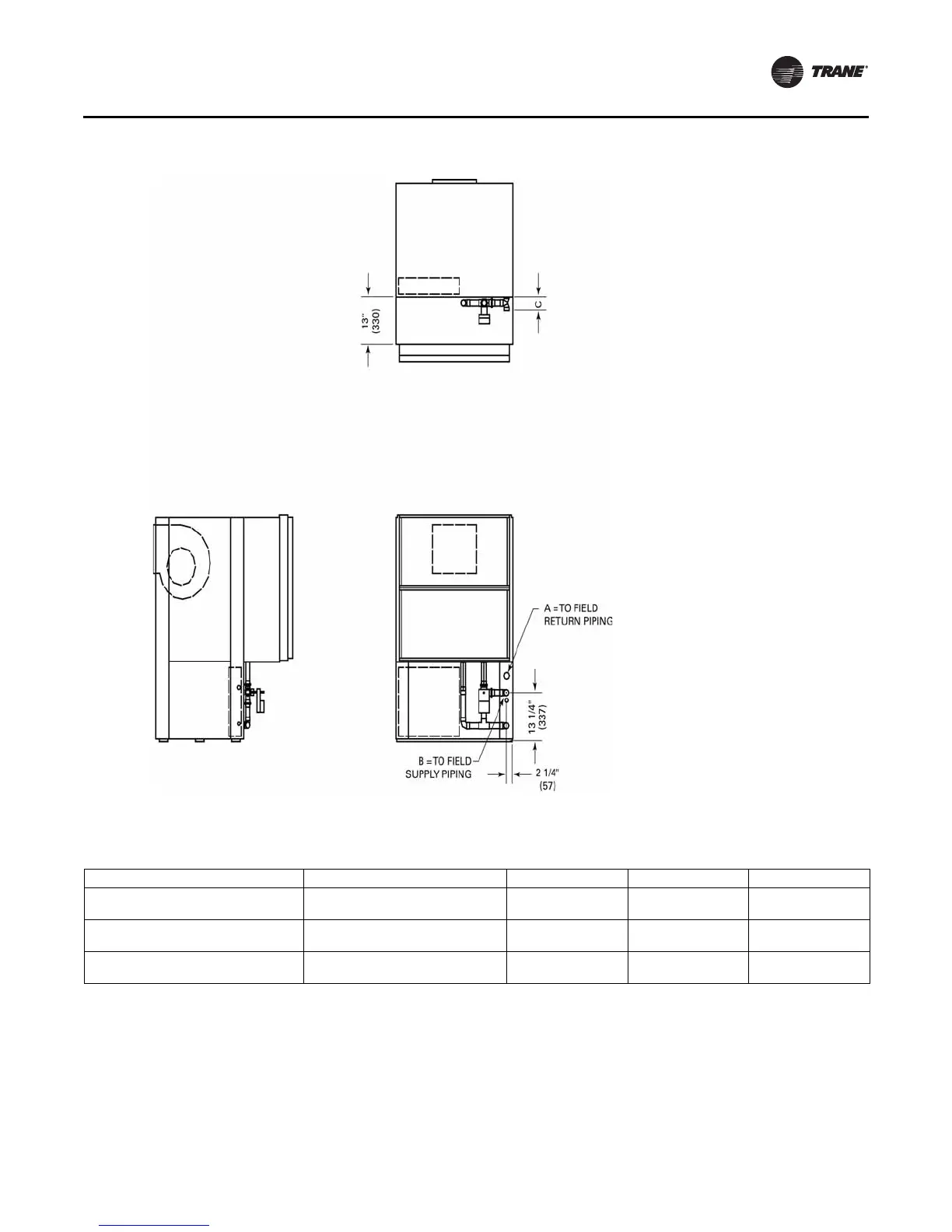

Figure 42. GEV 6-10 tons (072-120) 60 Hz; 6 and 7½ ton (072 and 090) 50 Hz, waterside economizer
(a)
(a)Entering water is on the AB port.
Table 28. GEV 6-10 tons (072-120) 60 Hz; 6 and 7½ ton (072 and 090) 50 Hz, waterside economizer
Unit (60 Hz) Unit (50 Hz) A B C
6—
1-1/4
(32)
1-3/8
(35)
4
(102)
7-1/2 ton 6 ton
1-1/4
(32)
1-1/4
(32)
4
(102)
10 ton 7-1/2 ton
1-1/2
(39)
1-5/8
(41)
4-3/8
(111)
Note: All dimensions are in inches followed by millimeters in parenthesis.
