RT-SVX51H-EN
11

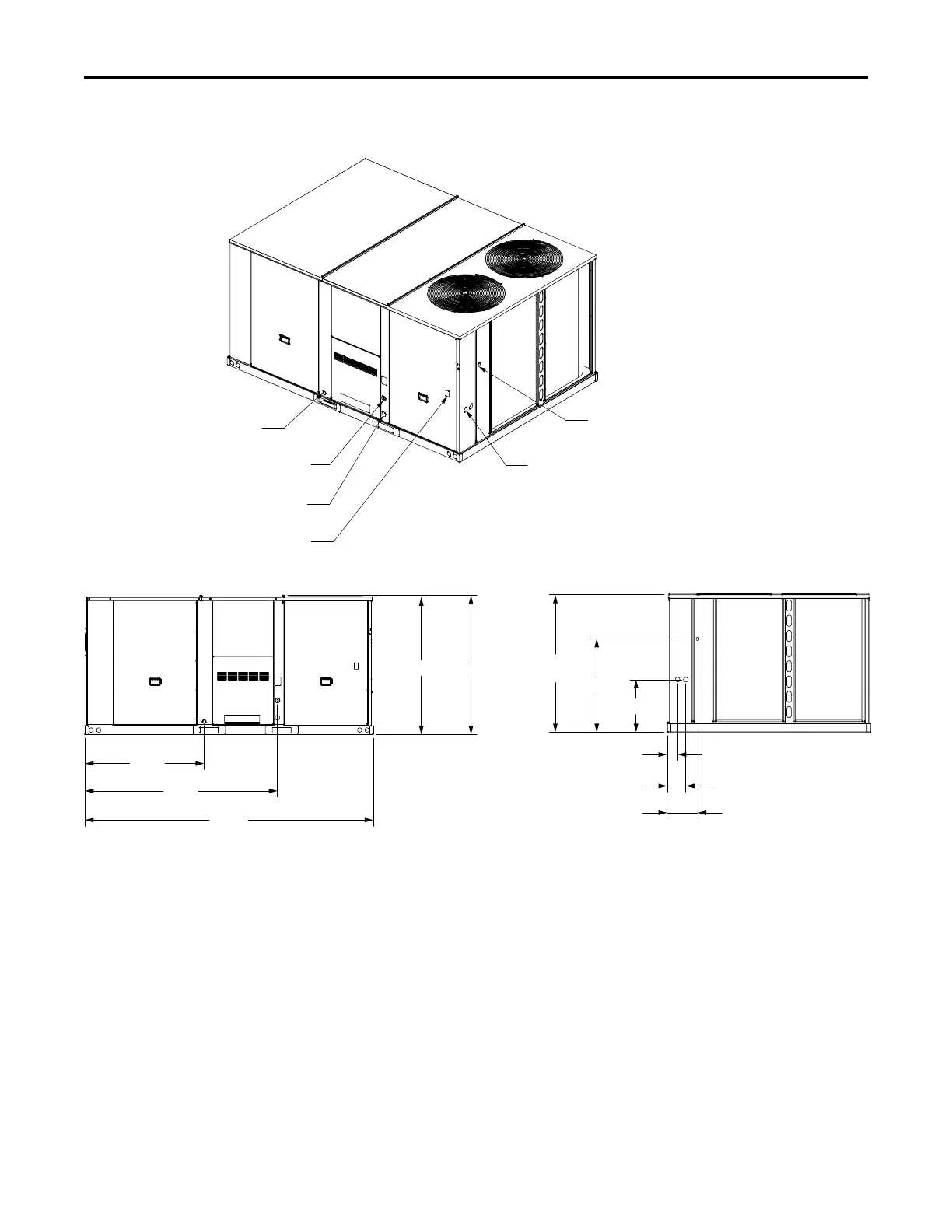

Figure 2. Cooling with optional electrical heat — overview (gas/electric)
REFRIGERANT GAUGE
ACCESS
CUSTOMER POWER
CONDUIT CONNECTION(ALTERNATE)
DISCONNECT
SWITCH ACCESS
GAS CONNECTION
(G*C UNIT-TBU GAS ONLY)
GAS CONNECTION(G*C UNIT ONLY)
CONDENSATE DRAIN
CONNECTION
Figure 3. Cooling with optional electrical heat — front and side views (gas/electric)
NOTES:
1.THROUGH THE BASE GAS AND ELECTRICAL IS NOT STANDARD ON ALL UNITS.
2.VERIFY WEIGHT, CONNECTION, AND ALL DIMENSION WITH INSTALLER DOCUMENTS BEFORE INSTALLATION.
123 1/8”
82 1/4”
(G*C UNITS ONLY)
50 7/8”
59 5/16”58 5/8”
13”
7 15/16”
4 1/2”
22 7/16”
39 13/16”
58 5/8”
DDiimmeennssiioonnaall DDaattaa
