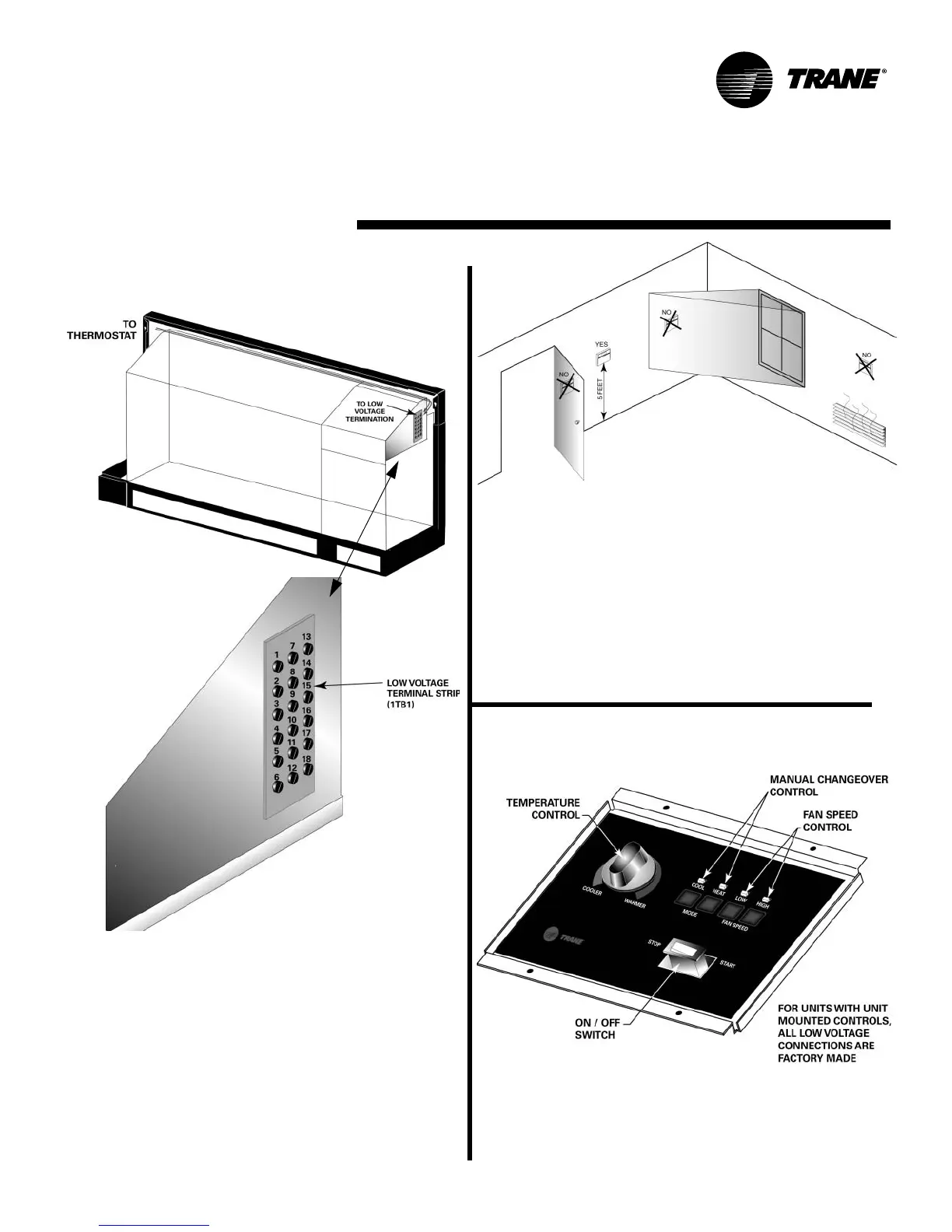

Wall Mounted Control
The thermostat hook-up to the unit is made at the unit
mounted 24 V (18-pole) low voltage terminal strip. This
strip is mounted on the exterior of the control box on
the right side of the unit.
For units that contain left hand piping, a low voltage
crossover to the 18-pole terminal strip may be neces-
sary. For this configuration, run the low voltage wires
behind the chassis to the right side of the console unit
for termination to the terminal strip.
Unit Mounted Controls
(Option)
For units with unit mounted controls, all low voltage con-
nections are factory made.
17
Thermostat Location
Location of the thermostat or zone sensor is an important
element of effective room control.
Areas where the thermostat/zone sensor should not be
mounted include: Behind doors or corners; Near hot or
cold air ducts; Near radiant heat (heat emitted from appli-
ances or sun); Near concealed pipes or chimneys; On out-
side walls or other non conditioned surfaces; In air-flows
from adjacent zones or other units.
