Installation
Instructions
Receptacle Plug
(Option)
For units with the factory provided disconnect op-
tions, the receptacle plug may now be connected to
the electrical outlet.
20
Factory Installed Pump Kit
(Option)
All wiring to the pump kit option is factory made. NO FIELD wiring will be required. Field hook-up to the sys-
tem water loop is made at the bottom of the pump box. This side of the system is usually hard piped to the
pump box.
A two-position valve is installed on the pump kit. A second shut-off valve will not be required at the unit. Con-
nection from the pump kit to the unit is hard piped at the factory. This hard piped assembly contains pressure/
temperature ports at the water-in/out union.
See literature number WSHPC-IN-5 (72-9006-03) for specific information related to the pump kit.

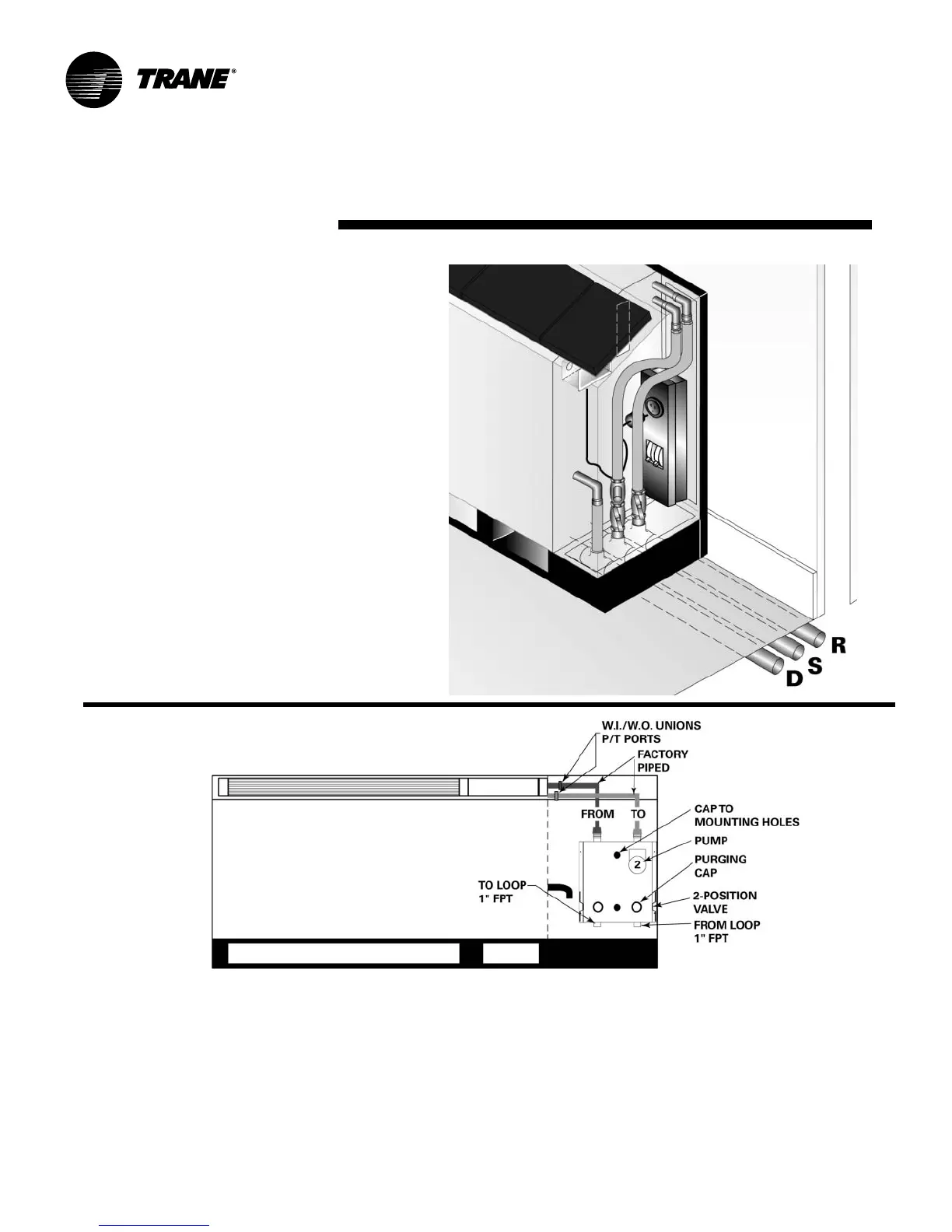

UNIT FRONT
