7
WSHP-PRC004-EN
Features and
Benefits
Field Flexibility
Piping and electrical connections to the
console are made in either the left or
right hand end pocket. The unit
refrigeration platform and the unit
control box is maintained in the same
location whether left or right hand
piping, standard unit cabinetry, extended
unit cabinetry, or low height unit
cabinetry has been specified. This cloned
platform poses a common look and feel
to the installer, as well as aids in
troubleshooting during service or
maintenance checkups.
Differences
Right Hand Piping
Console units ordered with a right hand
piping connection have the end pocket
located on the right hand side of the unit.
This end pocket provides room for
connecting field supply, return, and
condensate piping to the unit. It also
provides space for the high and low
voltage connections.
See Figure FB-3 for
right hand piping.
Left Hand Piping
Console units ordered with a left hand
piping connection have the end pocket
located on the left hand side of the unit.
This end pocket provides room for the
field supply, return, and condensate
piping connection to the unit. Installation
for the high voltage connection is also
made in the left hand end pocket.
Installing the low voltage controls
(thermostat/sensor hookup) is ALWAYS
made on the right hand side of the unit.
The low voltage termination for
thermostat or sensor wires may be run
along the back side of the chassis to the
right hand side of the unit for
connection.
See Figure FB-4 for left hand
piping.
Note:
Units containing the unit mounted
control option will ship from the factory
prewired. No low voltage hookup is
required.

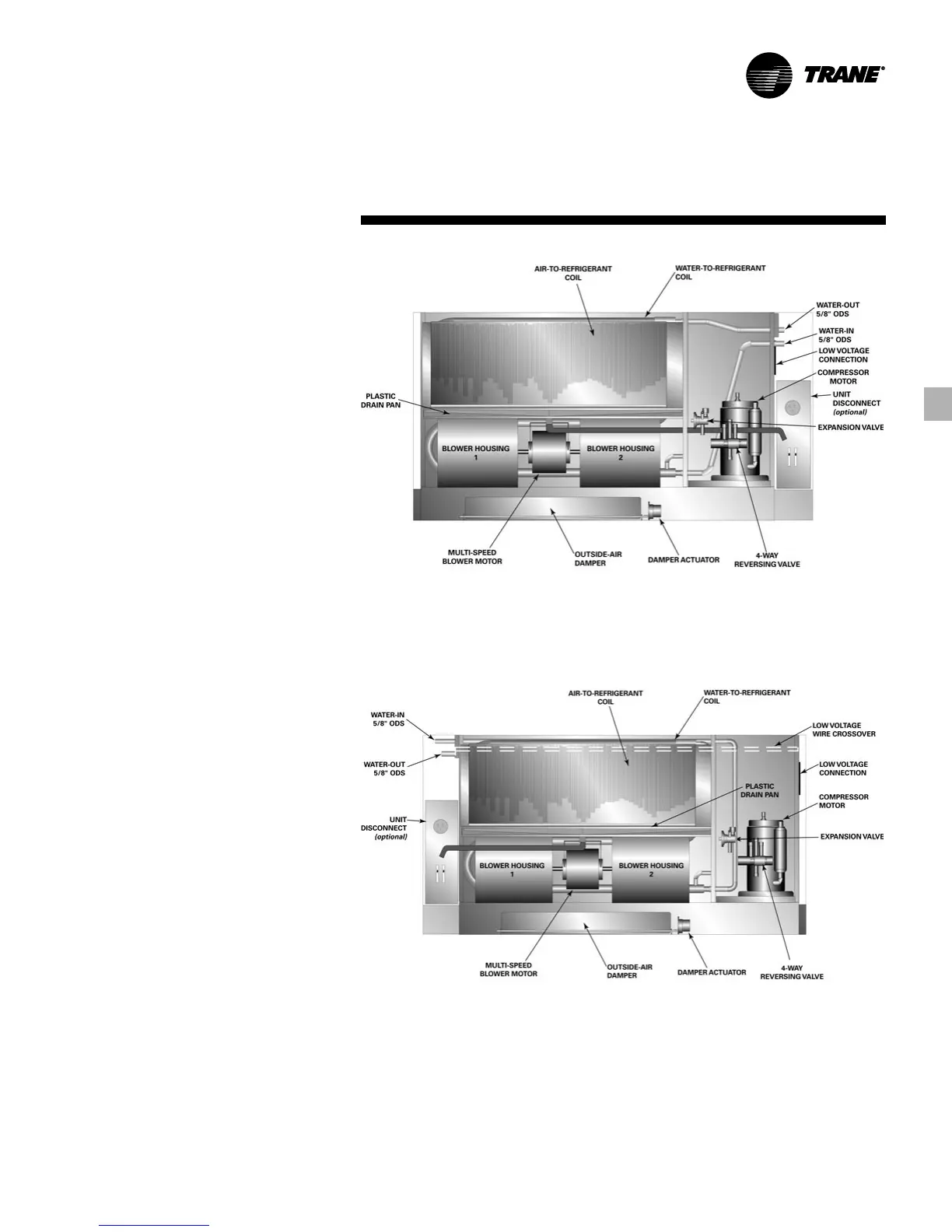

Figure FB-3 – Right Hand Piping
Figure FB-4 – Left Hand Piping
