Unit Clearance

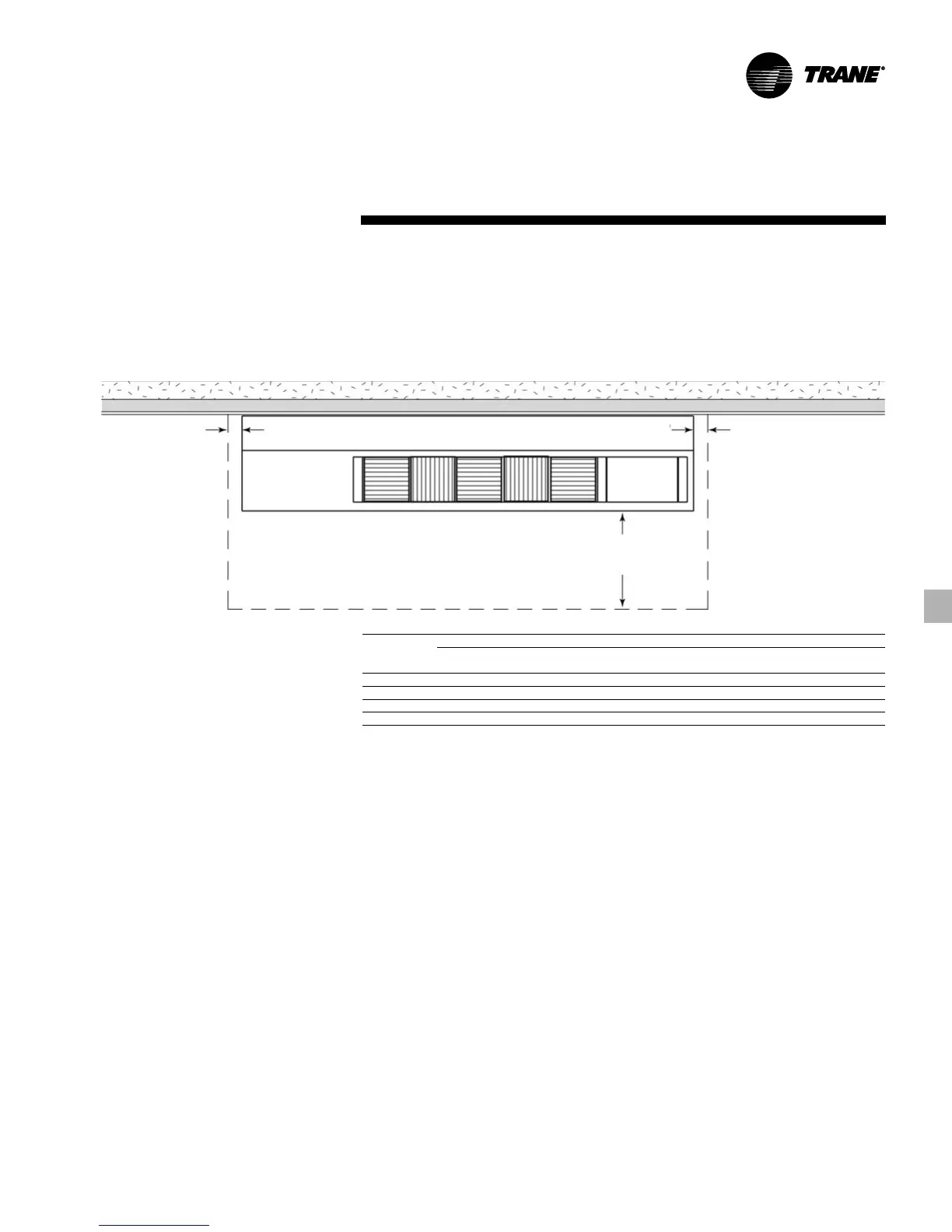

Access to the unit for servicing purposes should be provided at installation. All
configurations require clearance from other mechanical and electrical equipment on
three service sides (shown below). This enables panel removal from the unit for
service/maintenance ability.
Without Pallet With Pallet
Unit Weight Chassis Weight Unit Weight Chassis Weight
Unit Size (lbs) [kg] (lbs) [kg] (lbs) [kg] (lbs) [kg]
006 192 [87.1] 144 [65.3] 222 [100.7] 174 [78.9]
009 204 [92.5] 156 [70.8] 234 [106] 186 [84.4]
012 203 [92.1] 155 [70.3] 233 [106] 185 [83.9]
015 210 [92.3] 162 [73.5] 240 [99.8] 192 [87.1]
1" [25.4 mm] 1" [25.4 mm]
12" [304.8 mm]
Dimensional
Data Clearance
