Design Advantages
The horizontal configuration model
GEH product offers a range of
capacities from 1/2 to 5 ton.
This innovative design offers superior
field flexibility at the jobsite along with
service accessibility.
Cabinet
The cabinet design includes a modular
platform that utilizes similar parts and
assemblies throughout the product
line. It is constructed of heavy gauge
(non-painted) galvanized metal for
maximum durability and corrosive re-
sistive exterior.
The cabinet front allows service ac-
cess for the controls and refrigeration
circuitry. Water-in/out connection and
high/low voltage hook-up is accom-
plished at the 45-degree corners on
the front-side of the equipment.
The new horizontal design offers six
product variations of return-air and
supply-air combinations which may
be order-specific or job-site modi-
fied.(See Figure 1 for service access
and Figure 2 for component platform
location).
Features and
Benefits

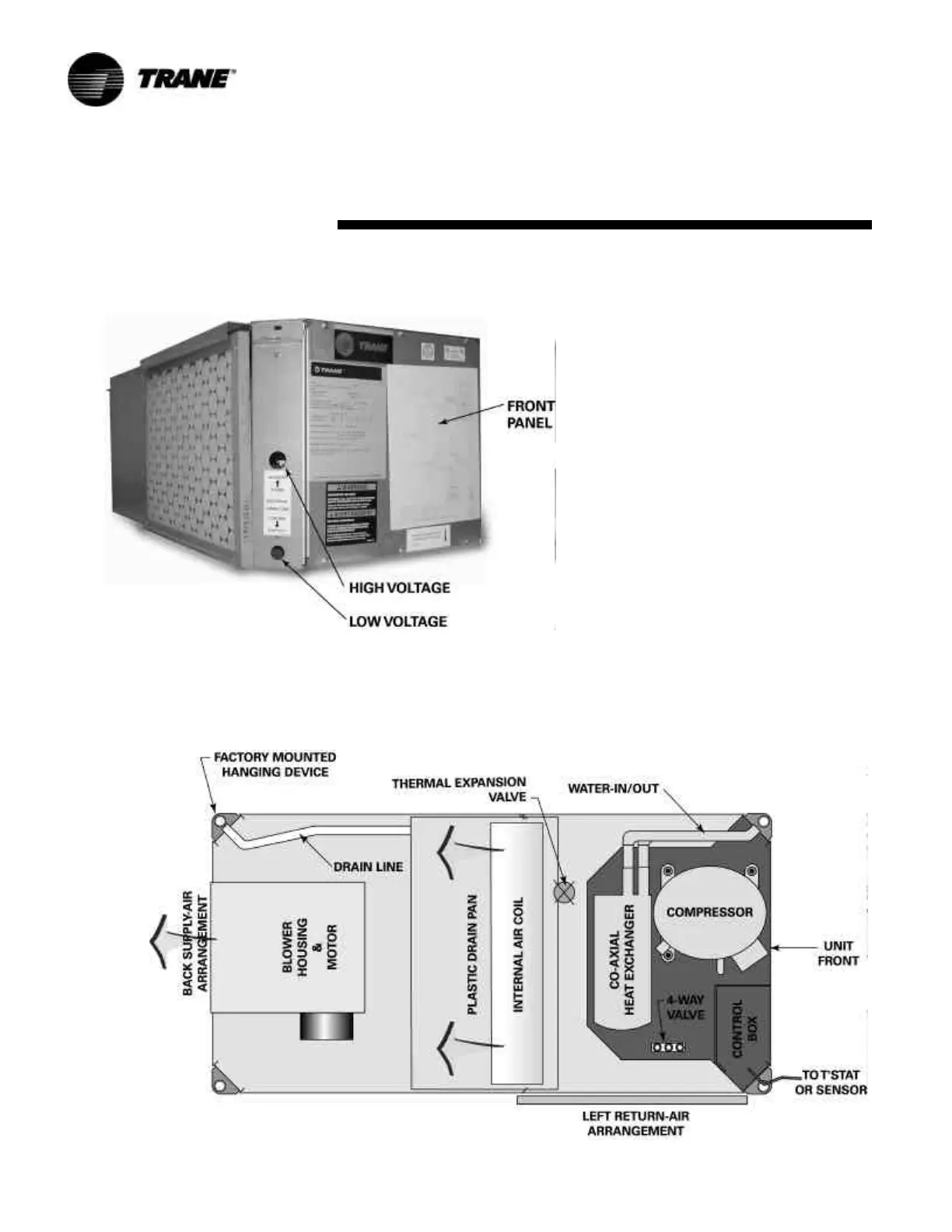

Figure 2: Component platform location
Figure 1: Horizontal service access
