WSHP-PRC001-EN 5
Design Advantages
Like it’s horizontal (GEH) counterpart,
the GEV offers a range of capacities
from 1/2- to 5-ton, and 12 1/2 through
25-ton. Only, with the vertical design,
Trane includes a 3 1/3-ton
configuration physically sized for
condominium installations.
The GEV configuration incorporates
the unique modular component
platform design of the horizontal
configuration to provide a repetitious
look and feel to installation and
maintenance personnel.
This orchestrated family share fea-
tures and benefits with only a few vari-
ances.
Cabinet
The cabinet design includes a modular
platform that utilizes similar parts and
assemblies throughout the product
line. It is constructed of heavy gauge
(non-painted) galvanized metal for
maximum durability and corrosive
resistive exterior.
The cabinet front allows service access
for the controls and refrigeration
circuitry. Water-in/out connection,
drain connection, and high/low
voltage hook-up is accomplished at
the 45-degree chamfered corners on
the front-side of the equipment.
The vertical design offers four product
variations of return-air and supply-air
combinations.
The 1/2 through 5-ton supply-air ar-
rangement may be field convertible
with service kit to aid in stocking of a
single unit variation. (See Figure 3 for
service access of the unit. See
Figure 4 for component platform
location.)
Features and
Benefits

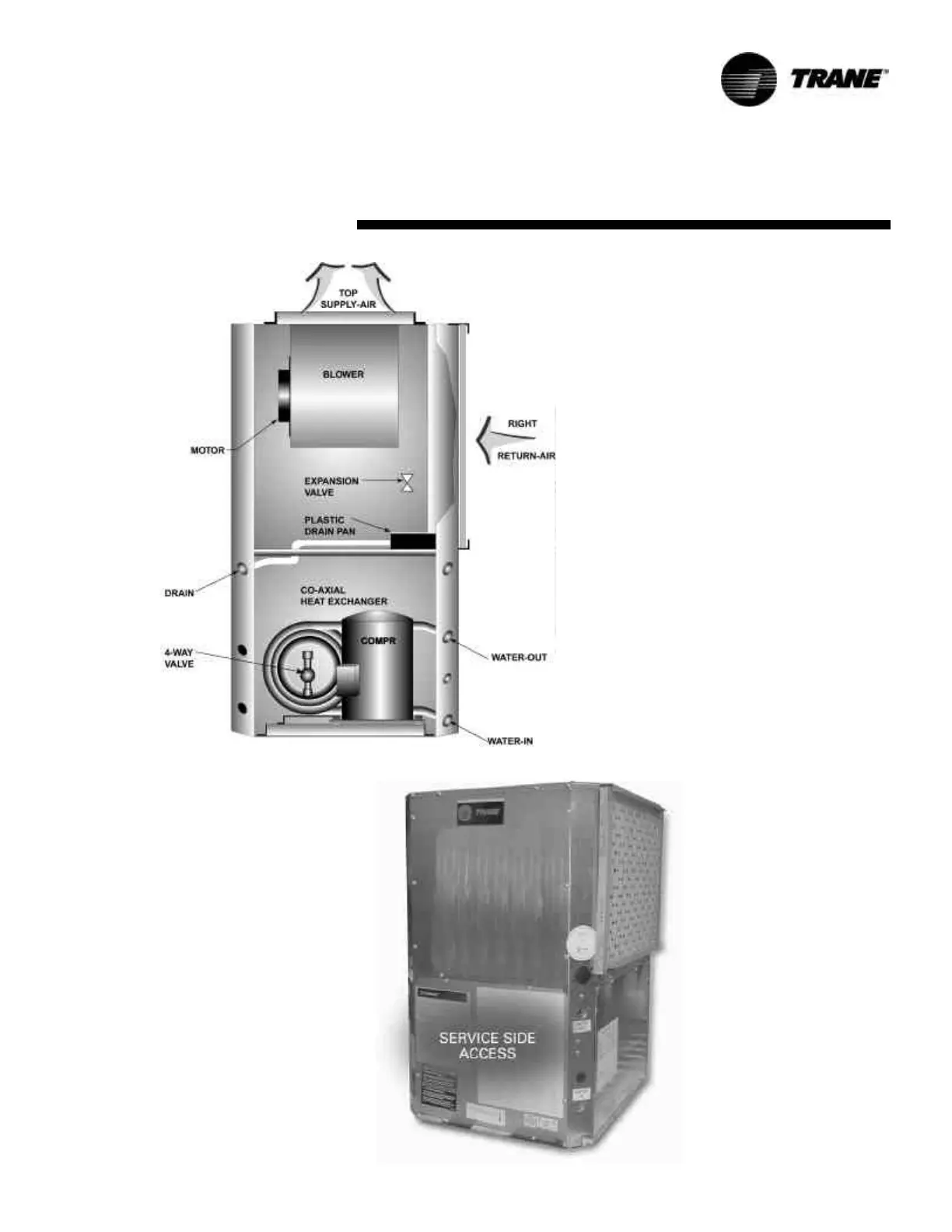

Figure 3: Service access of
small tonnage vertical
Figure 4: Component platform location
