Field Convertible
The bullet listing below shows the
available return-air/supply-air combi-
nations on the GEH model whether
specified by order or modified on-site
to meet your unique installation re-
quirement. The six combinations in-
clude:
Left return-air with left supply-air
combination
Left return-air with rear supply-air
combination
Left return-air with right sup-
ply-air combination
Right return-air with left sup-
ply-air combination
Right return-air with rear
supply-air combination
Right return-air with right
supply-air combination
See Figure 5 for the six convertible
combinations.
More Flexibility
The GEV model is also capable of
on-site modifications. With the vertical
configuration, the supply-air is easily
converted from a top supply-air to a
back supply-air with a service retrofit
kit. The return-air option is order spe-
cific. The four combinations include:
Right return-air with top sup-
ply-air combination
Right return-air with back sup-
ply-air combination
Left return-air with top supply
-air combination
Left return-air with back sup-
ply-air combination
See Figure 6 for the four supply-air/
return-air combinations.
Features and
Benefits
1
2
3
4
5
6
UNIT
FRONT
UNIT
FRONT
UNIT
FRONT
UNIT
FRONT
UNIT
FRONT
UNIT
FRONT

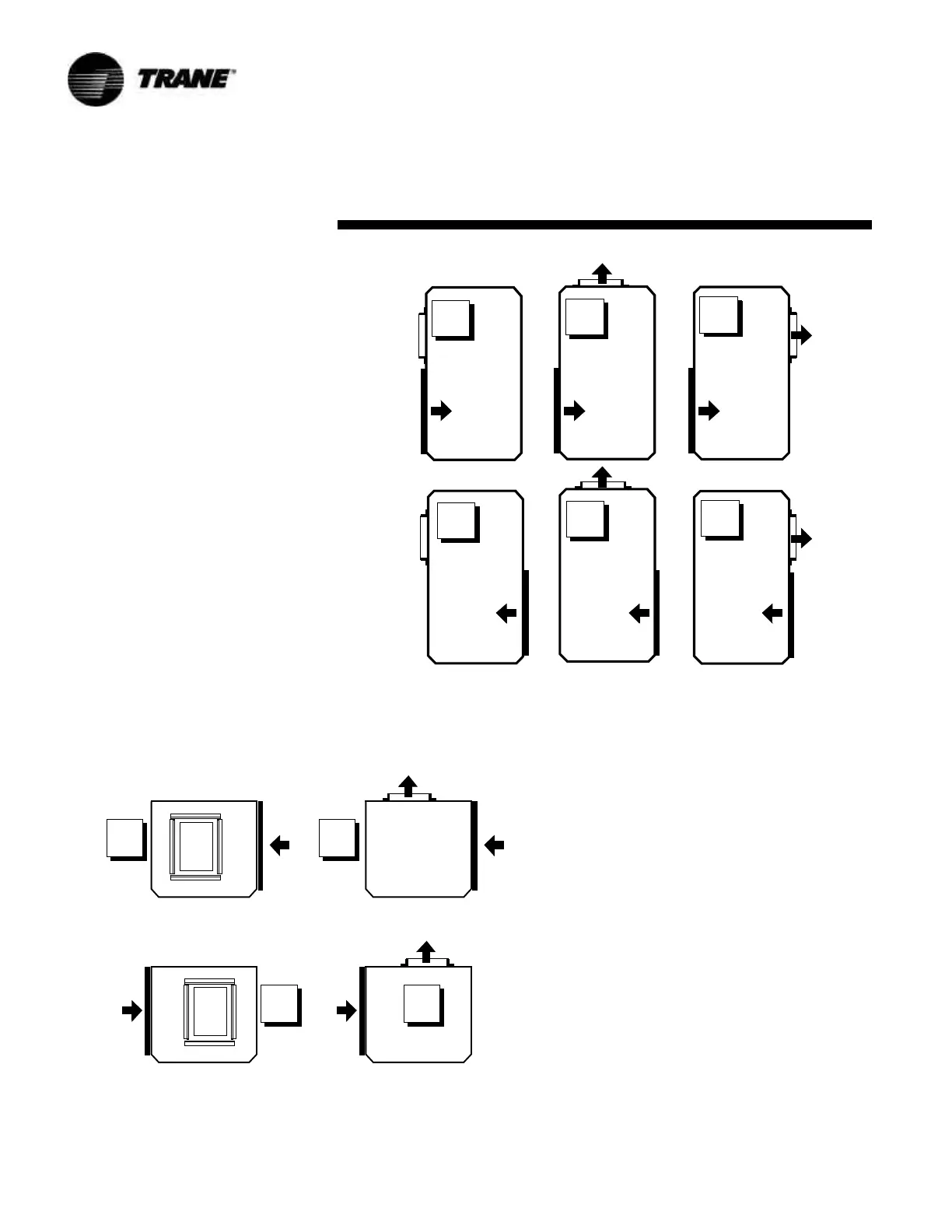

Figure 5: Six convertible combinations (GEH 1/2 through 5-ton)
1
2
3
4
5
6
UNIT
FRONT
1
UNIT
FRONT
2
UNIT
FRONT
3
UNIT
FRONT
2
1
3
4
Figure 6: Four combinations (GEV 1/2 through 5-ton)
4
