22
WSHP-SVX01AA-EN

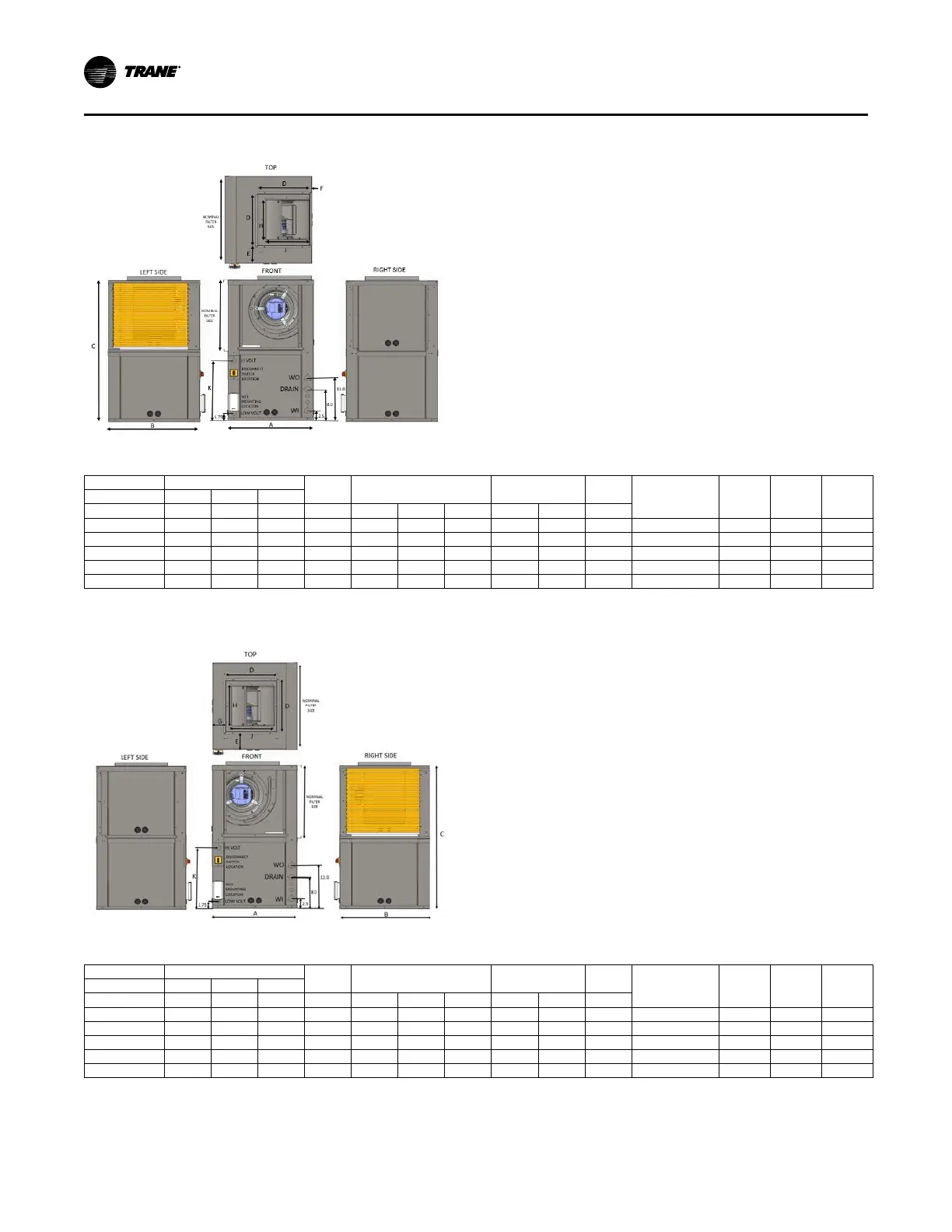

Figure 12. Left return/top supply (GEVG)
Table 10. Dimensional data left return/top supply (GEVG)
Cabinet
Duct
Collar
Duct Collar Location
Blower
Opening
Hi Volt Nominal
Filter Size
W.I.
NPTI
W.O.
NPTI
Drain
NPTI
Width
Depth Height
Unit A B C D E F G H J K
006-012 19.0 19.0 30.00 11.38 3.70 1.40 3.50 8.00 7.70 12.25 14 x 16
1/2 1/2 3/4
015-018 21.50 21.5 34.00 13.25 4.00 1.00 3.50 10.50 9.60 14.25 16 x 19
1/2 1/2 3/4
024-030 21.50 23.00 36.00 13.25 4.75 0.63 3.50 10.50 11.30 15.25 17 x 20
3/4 3/4 3/4
036-042 21.5 26.00 38.00 13.25 6.25 0.63 3.50 11.80 11.30 16.25 18 x 23
3/4 3/4 3/4
048-060 24.0 32.5 42.00 17.75 7.25 0.75 3.50 13.70 13.50 18.25 20 x 30 1 1
3/4
Note: Units in a free return application will require more than a 1 in. clearance to provide proper air flow to the unit’s air-to-refrigerant coil.
Figure 13. Right return/top supply (GEVG)
Table 11. Dimensional data right return/top supply (GEVG)
Cabinet
Duct
Collar
Duct Collar Location
Blower
Opening
Hi Volt Nominal
Filter Size
W.I.
NPTI
W.O.
NPTI
Drain
NPTI
Width
Depth Height
Unit A B C D E F G H J K
006-012 19.0 19.0 30.00 11.38 3.70 1.40 3.50 8.00 7.70 12.25 14 x 16
1/2 1/2 3/4
015-018 21.50 21.5 34.00 13.25 4.00 1.00 3.50 10.50 9.60 14.25 16 x 19
1/2 1/2 3/4
024-030 21.50 23.00 36.00 13.25 4.75 0.63 3.50 10.50 11.30 15.25 17 x 20
3/4 3/4 3/4
036-042 21.5 26.00 38.00 13.25 6.25 0.63 3.50 11.80 11.30 16.25 18 x 23
3/4 3/4 3/4
048-060 24.0 32.5 42.00 17.75 7.25 0.75 3.50 13.70 13.50 18.25 20 x 30 1 1
3/4
Note: Units in a free return application will require more than a 1 in. clearance to provide proper air flow to the unit’s air-to-refrigerant coil.
