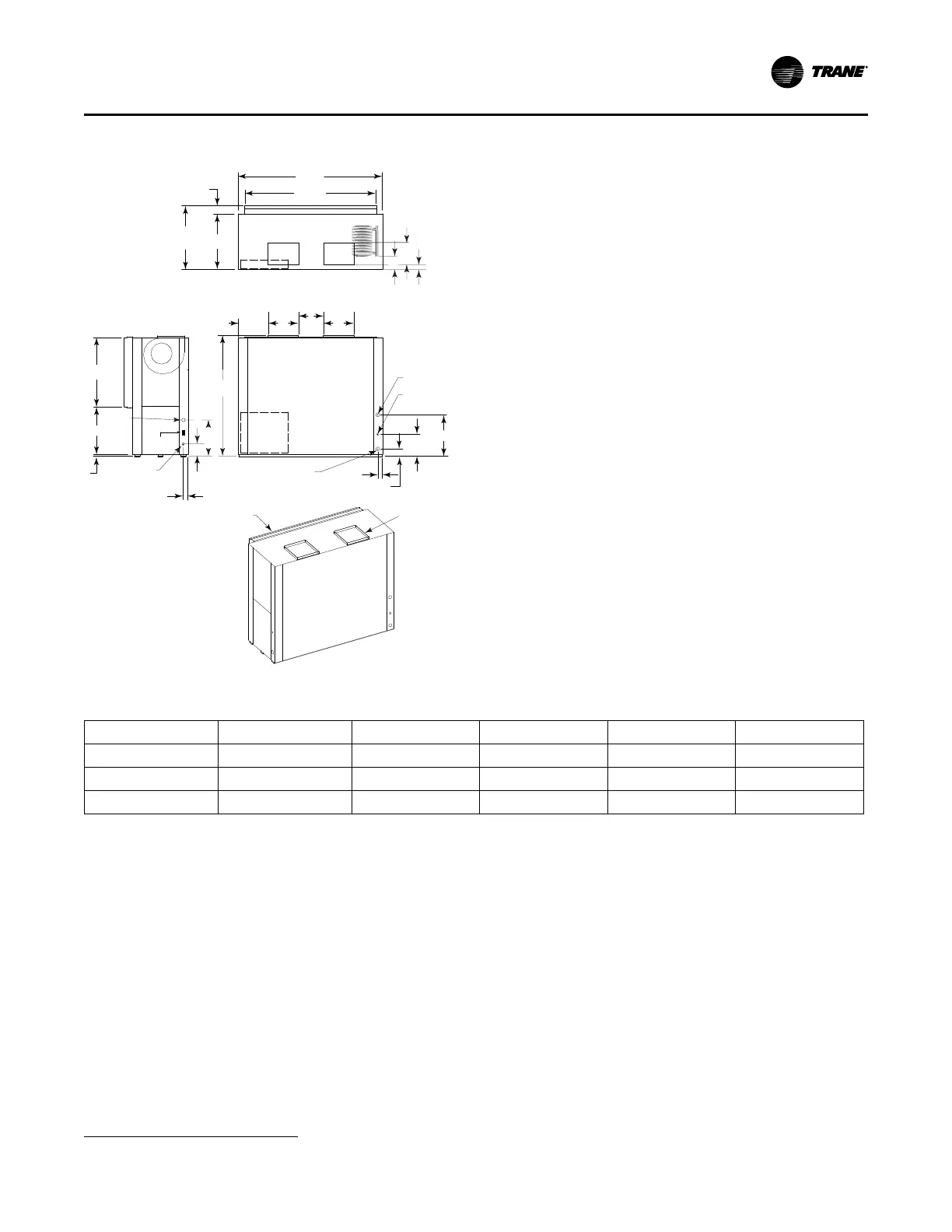

Figure 32. Back return/top supply
10
GEVE 20 and 25
tons (60 Hz); GEVE 15 and 20 tons (50 Hz)
W.I. 2"
NPTI
2 5/8"
4 1/4"
12 1/2"
D
B
DRAIN 3/4"
NPTI
W.O. 2"
NPTI
38 7/8"
27 1/8"
68"
A
C
A
1"
HIGH VOLTAGE
7/8" O.D.
2 3/8"
74 1/2"
81 5/8"
31 1/2"
36 1/4"
4 3/4"
68"
6 7/8"
19 1/8"
1 1/4"
RETURN AIR
OPENING
SUPPLY OPENING
WITH 1" DUCT
FLANGE
B
1 1/4"
6 1/4"
20 1/2"
CONTROL
BOX ACCES
S
TOP VIEW
FRONT VIEW
SIDE VIEW
24 VOLT
1 1/8"
O.D.
WCI mounting
location
Table 23. Dimensional data back return/top supply GEVE 20 and 25 tons (240 and 300) 60 Hz; GEVE 15 and 20 tons
(180 and 240) 50 Hz
Unit (60 Hz) Unit (50 Hz)
A B C D
20 tons 15 tons
15-5/8 in. 13-1/2 in.
12 in.
20-7/8 in.
25 tons Std Static 20 tons Std Static
14-3/4 in. 15-7/8 in. 13-7/8 in. 23-1/2 in.
25 tons High Static 20 tons High Static
15-5/8 in. 13-1/2 in.
12 in.
23-1/2 in.
UUnniitt DDiimmeennssiioonnss
10.
NEC requires GEV072-300 front return must be non-ducted return.
