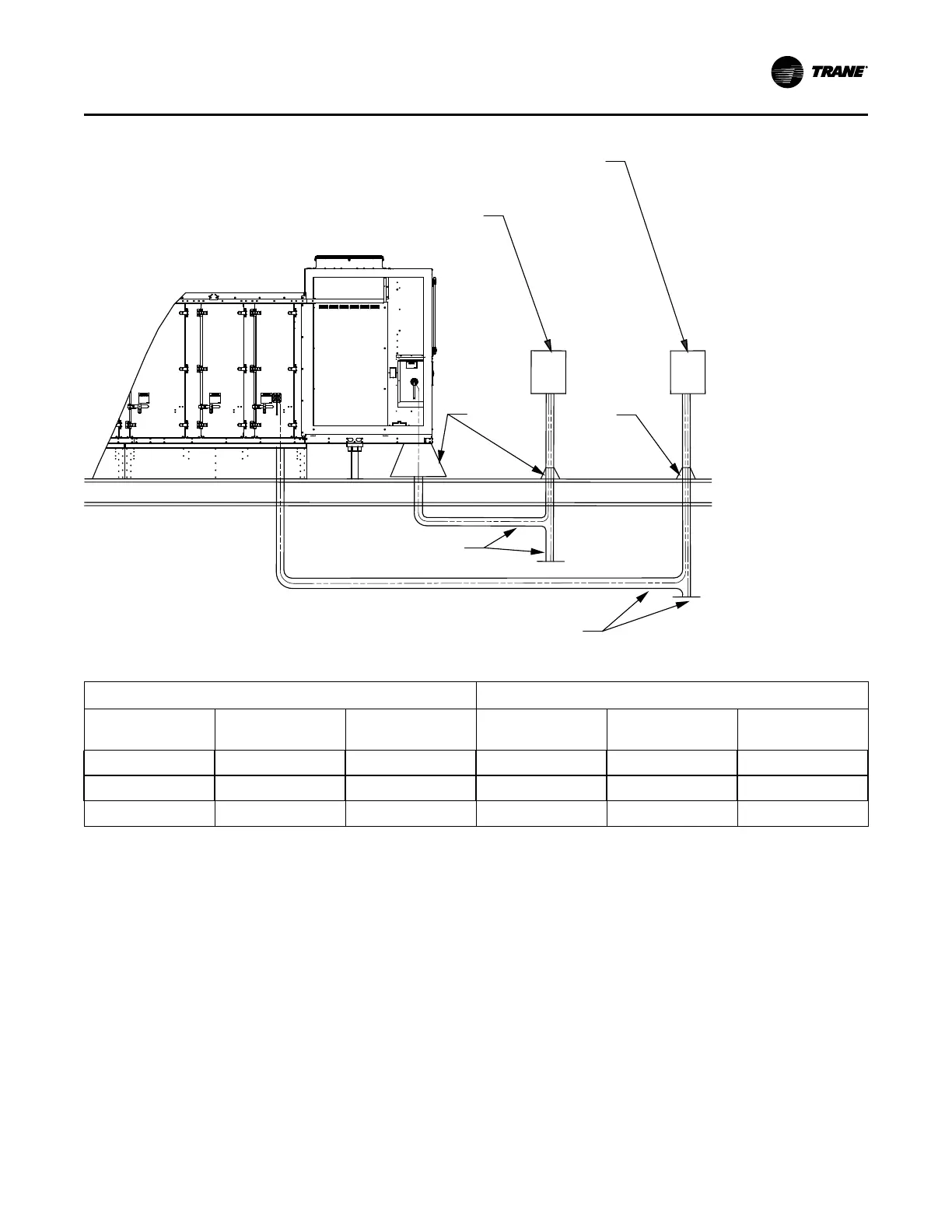

Figure 16. Typical field power wiring (20 to 75 ton)
3-WIRE POWER SUPPLY
PLUS GROUND
3-WIRE POWER SUPPLY
PLUS GROUND
PITCH
POCKET
PITCH
POCKET
FIELD SUPPLIED DISCONNECT SWITCH
RE 200/230 ONLY: ADDITIONAL FIELD SUPPLIED DISCONNECT SWITCH
Table 10. Customer connection wire range
Units with Main Power Terminal Block (All Voltages) Units with Main Power Disconnect Switch (All Voltages)
Block Size Wire Qty Connector Wire
Range
Block Size Wire Qty Connector Wire
Range
510 AMP 2 #6 — 250 kcmil 250 AMP 1 3/0 - 350 kcmil
760 AMP 2 #4 — 500 MCM 400 AMP 2 2/0 - 500 kcmil
600 AMP 2 2/0 - 500 kcmil
Note: Block size and disconnect size are calculated by selecting the size greater than or equal to 1.15 x (Sum of Unit Loads). See unit literature for unit
load values.
