Performance Data
Supply Fan Curves
Please see notes below for all supply fan curves. For
additional information or support, contact your local
Trane sales office or Trane representative.
IImmppoorrttaanntt::
1. Shaded area represents selectable area.
2. Supply fan performance curve includes
internal resistance of rooftop. To
determine total static pressure, add
system external static pressure to
appropriate component static pressure
drops (evaporator coil, filters,
economizer, reheat coil, heating
system, final filters).
3. Motor horsepower offerings are
designated by horsepower lines shown
on fan performance map.

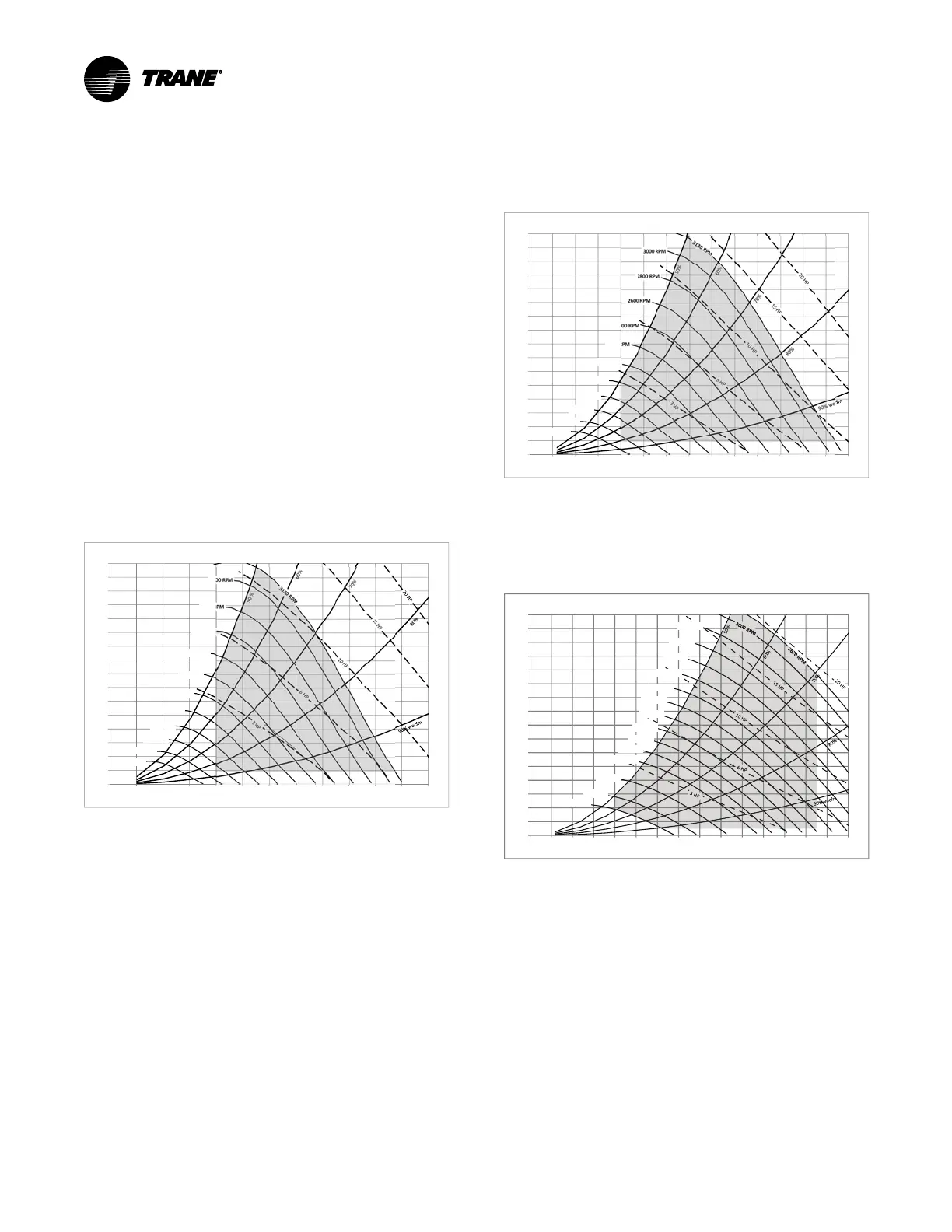

Figure 43. 20, 25 and 30 ton, 16.5 inch - 9 Blade - 80%
width supply fan
3000 RPM
2800 RPM
2600 RPM
2400 RPM
2200 RPM
2000 RPM
1800 RPM
1600 RPM
1400 RPM
1200 RPM
1000 RPM
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
Sta!c Pressure, Inches w.c.
Airflow, CFM
NNoottee:: Maximum airflow (for cULus approval) as
follows: 20 ton - 9000 CFM, 25 ton - 11,250 CFM,
30 ton - 13,500 CFM
Figure 44. 20, 25 and 30 ton, 16.5 inches - 9 blade -
100% width supply fan
3000 RPM
2800 RPM
2600 RPM
2400 RPM
2200 RPM
2000 RPM
1800 RPM
1600 RPM
1400 RPM
1200 RPM
1000 RPM
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000
Sta!c Pressure, Inches w.c.
Airflow, CFM
NNoottee:: Maximum airflow (for cULus approval) as
follows: 20 ton - 9000 CFM, 25 ton - 11,250 CFM,
30 ton - 13,500 CFM
Figure 45. 20, 25 and 30 ton, 20.0 inch - 9 blade - 80%
width supply fan
2500 RPM
2400 RPM
2300 RPM
2200 RPM
2100 RPM
2000 RPM
1900 RPM
1800 RPM
1700 RPM
1600 RPM
1500 RPM
950 RPM
60%
1300 RPM
1100 RPM
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
Sta!c Pressure, Inches w.c.
Airflow, CFM
NNoottee:: Maximum airflow (for cULus approval) as
follows: 20 ton - 9000 CFM, 25 ton - 11,250 CFM,
30 ton - 13,500 CFM
