38
RT-SVX063E-EN
Supply Fans
Remove Shipping Tie Down
Remove supply fan shipping tie down hardware. There
are four places on each fan where hardware needs to
be removed, shown in Figure 17, p. 38. Gently spin
each fan to verify there is no wheel-to-cone
interference. If adjustment is required, loosen fan shaft
set screw and reposition fan to get correct wheel/cone
overlap.

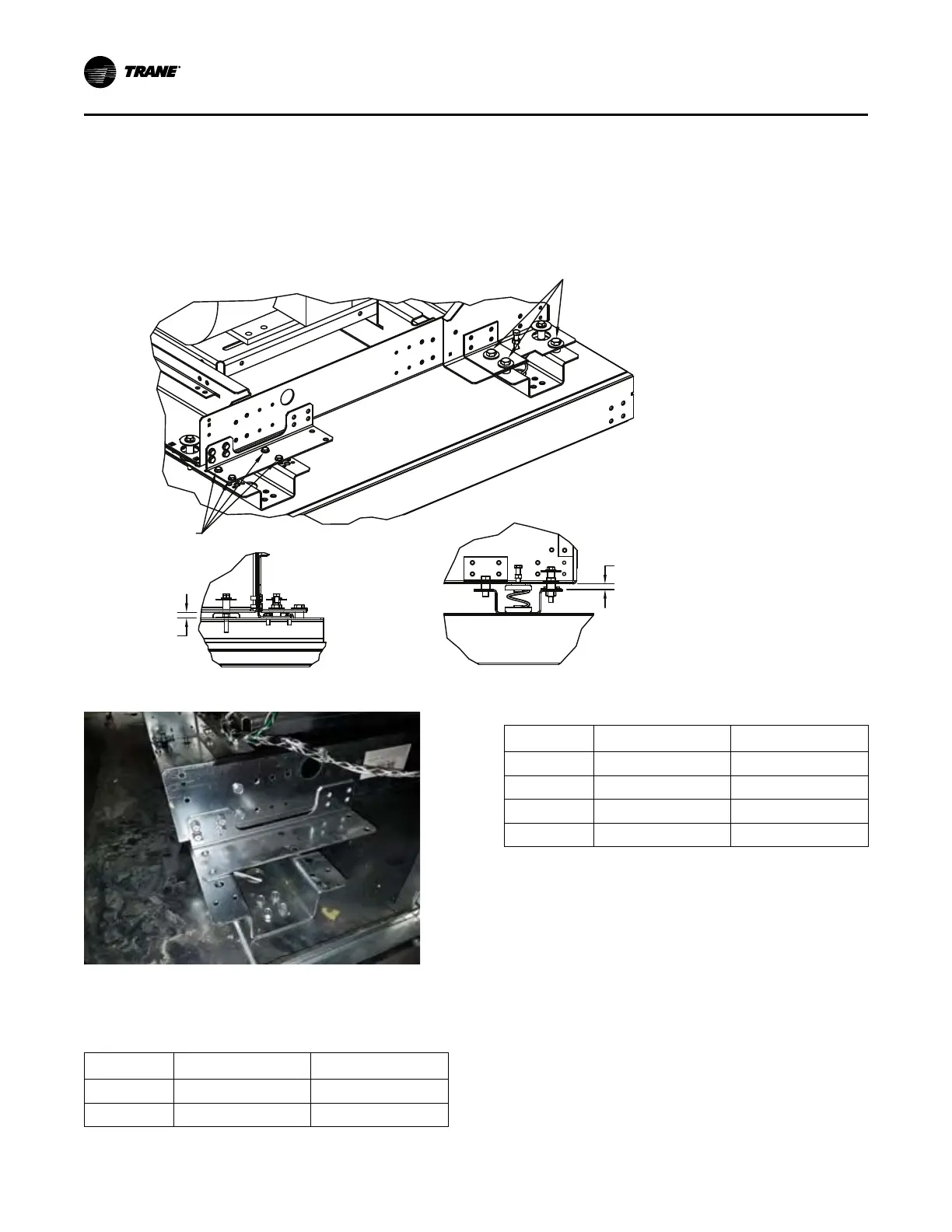

Figure 17. Remove shipping tie-downs
Tiedown
Tiedown
Clearance
Clearance
Figure 18. Shipping tie-down
IImmppoorrttaanntt:: Do NOT remove electrical ground wire
strap.
Table 11. Supply fan cone overlap measurements
Fan Size Cone Width G (in.) Overlap Q (in.)
165 5.18 0.18
182 6.44 0.38
Table 11. Supply fan cone overlap measurements
(continued)
Fan Size Cone Width G (in.) Overlap Q (in.)
200 7.05 0.41
222 7.83 0.45
245 8.62 0.50
270 9.45 0.55
IInnssttaallllaattiioonn
