24
RT-SVX063E-EN
Electrical Entry Details

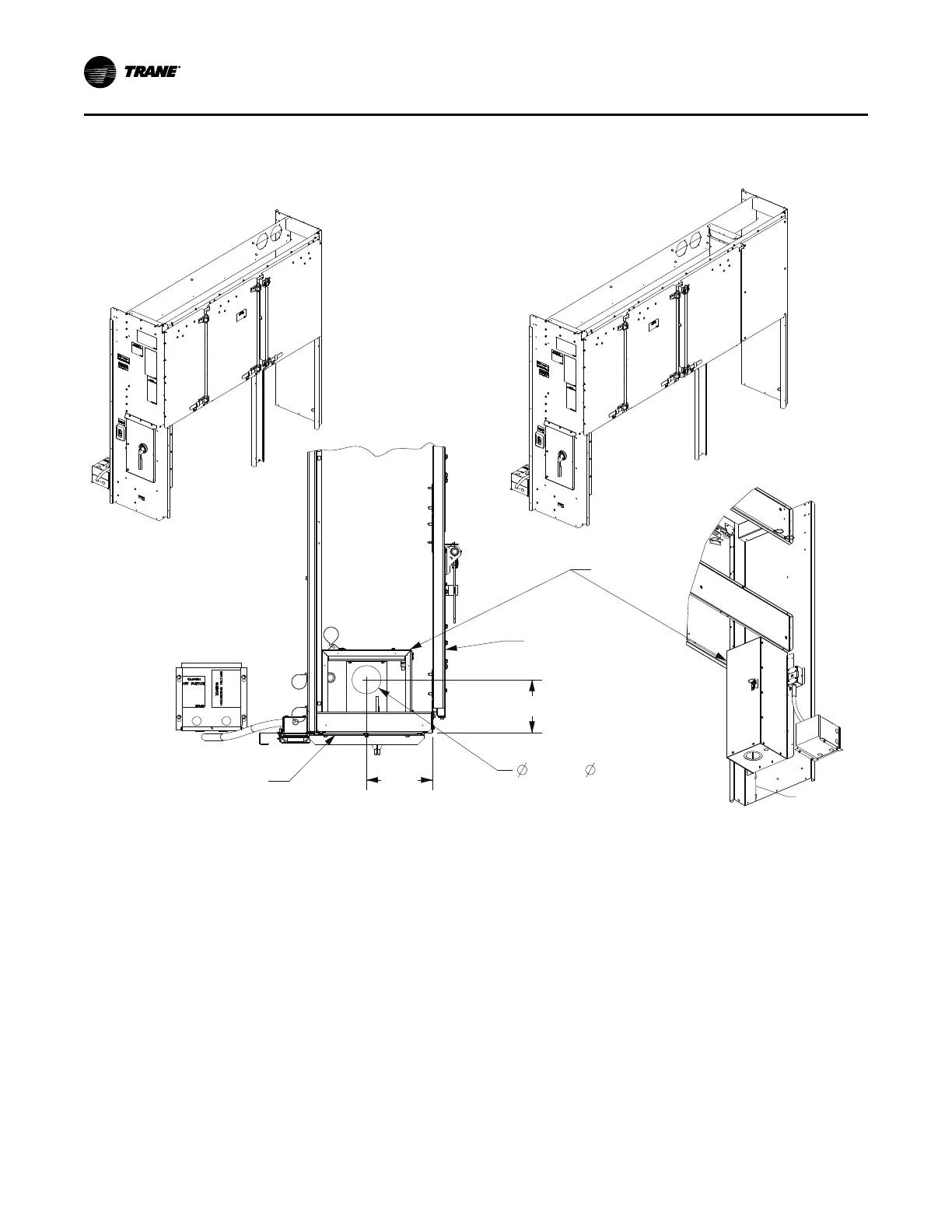

Figure 10. Electrical connections (inches)
6.48
8.06
3.54 OR 4.55
POWER BOX
TOP VIEW
ELECTRIC MAIN POWER ENTRY
REAR ISO VIEW
ELECTRIC MAIN POWER ENTRY
CONTROL BOX DOOR
CONTROL BOX SIDE PANEL
ISO VIEW
A & B CAB
ISO VIEW
C CAB
8.22
