suitable for models from 0070:
140V -160V -180V -190V -200V -210V -220V -230V
models from 0100 to 0270:
230V - 250V - 260V - 270V - 280V - 290V - 300V - 310V -
models 0340 - 0400
150V - 180V - 200V - 230V - 240V - 260V - 280V - 300V -
SETTING AND ADJUSTMENT

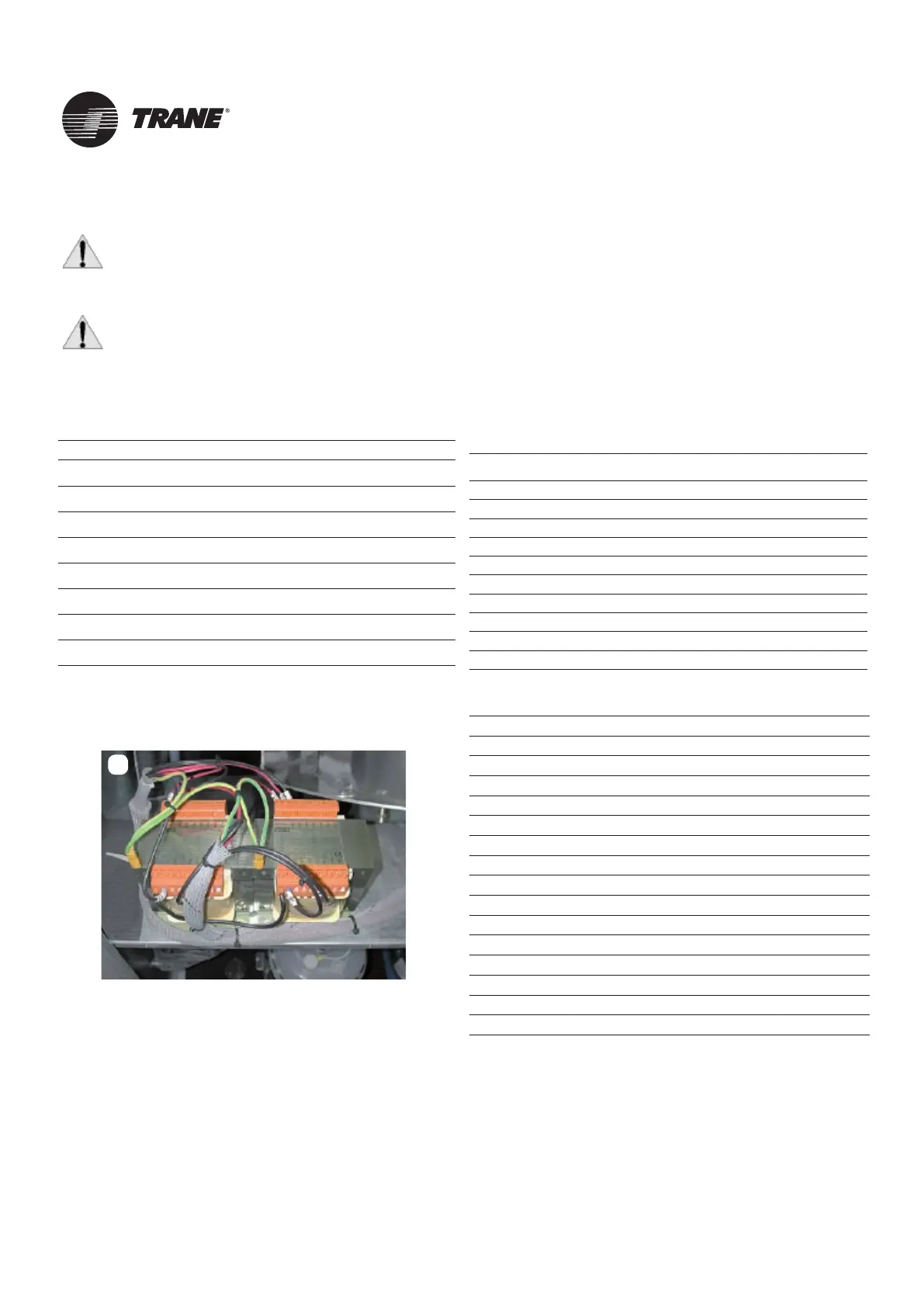

Selecting the power supply of the fans
WARNING! Before establishing the electrical
reconnect the power during the operation.
load loss from the exhaust duct must be less
than 100 Pa.
Models V
0070 195
0100 - 0200 310
0120 340
0170 260
0250 320
0270 340
0340 280
0400 300
HOW TO ADJUST FAN SPEED
EDCB/EUCB 0100
3
5700 7000 8000 9000 10200 11440
V Pa
230 129 73 14 - - -
250 181 124 65 - - -
260 206 150 91 8 - -
270 232 175 117 34 - -
280 257 201 142 59 - -
290 283 226 168 85 - -
300 309 252 194 111 - -
310 334 278 219 136 - -
320 360 303 245 162 20 -
340 411 355 296 213 69 -
360 462 406 347 264 121 -
380 514 457 399 316 172 -
400 565 508 450 367 223 20
EDCB/EUCB 0070
3
4280 4500 5000 5500 6060 6500
% V Pa
40 142 68 54 15 - - -
50 168 140 122 75 21 - -
55 180 180 160 109 50 - -
60 195 238 216 158 92 20 -
70 215 335 307 238 162 67 -
80 222 375 346 272 191 91 20
90 227 403 373 296 212 108 24
100 230 427 395 315 228 122 35
