P0V0-SVX001-1A-EN
19

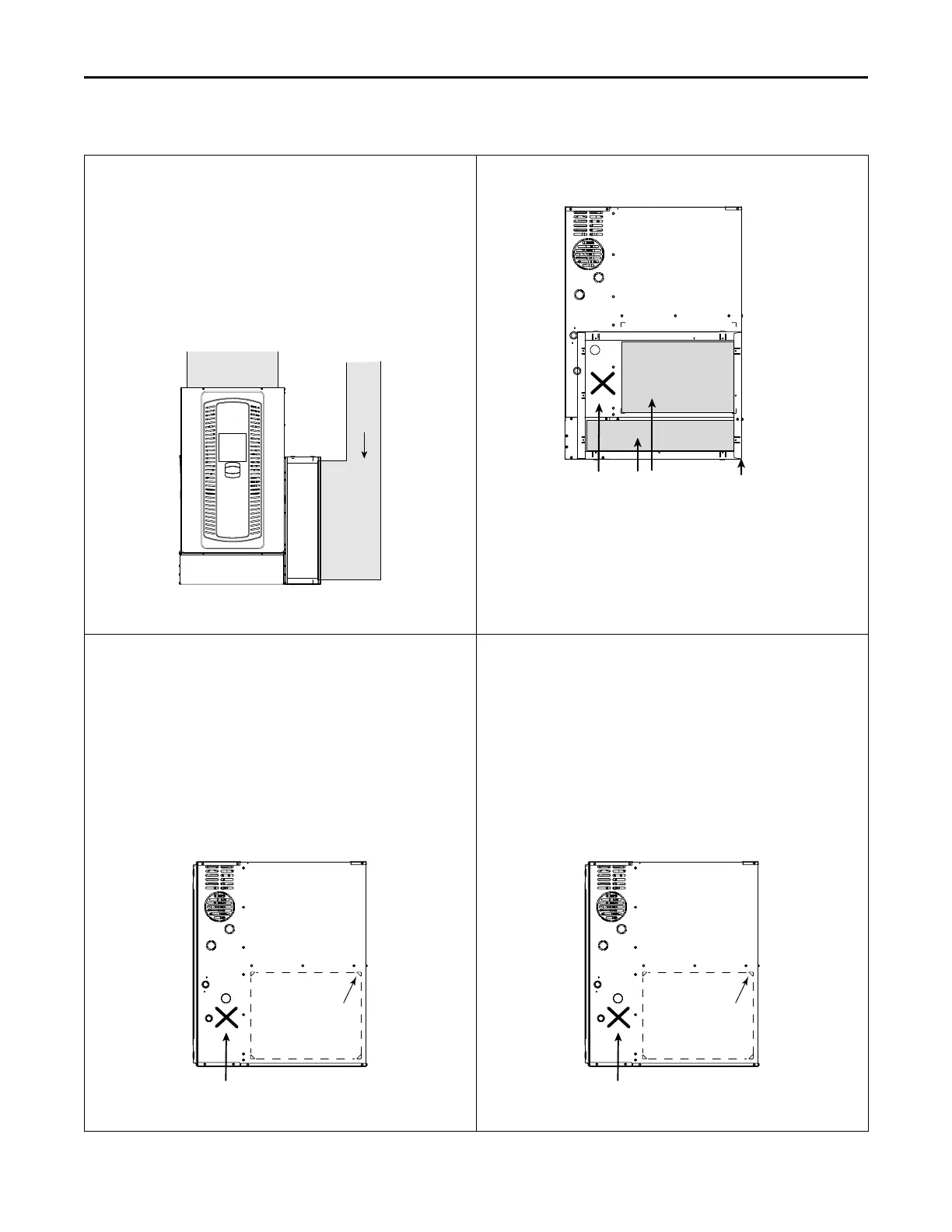

Table 5. Return Duct Connections (continued)
Upflow Modular Blower with Bottom and Side Returns
Mounted on a Ducted Pedestal with Side Return and Filter Box
Important: Make sure the thermostat wiring hole is sealed on the
cabinet side with the side return.
Important: Make sure not to cut the cabinet in the “No Cut” area.
Important: Remove Blower Assembly and Panel Loop before cutting
cabinet to avoid cutting wires.
Note: Use Optional BAYLIFT kit to lift modular blower. Follow kit
instructions.
Note: The modular blower bottom pedestal must be a minimum of 6”
in height.
Cabinet cutout when used with BAYLIFT
No Cut Area Cutouts
21” Filter Cabinet with BAYLIFT Kit shown
Flush with back of
modular blower cabinet
Refer to Step 1. Step 10. Step 11. Step 12. Step 13. Step 14. Step 15.
Step 4.
Upflow Modular Blower with Side Return
Important: Make sure the thermostat wiring hole is sealed on the
cabinet side with the side return.
Important: Make sure not to cut the cabinet in the “No Cut” area.
Important: Remove Blower Assembly and Panel Loop before cutting
cabinet to avoid cutting wires.
Note: If using a filter box, use a transition, if possible, to attach the
filter box to the modular blower cabinet.
Upflow Modular Blower with Two Side Returns
Important: One of the sides must have a transition to allow the
thermostat wiring to exit the cabinet.
Important: If a transition is not a viable option, a hole will need to be
drilled in the side of the cabinet for the thermostat wiring
to exit.
Important: Make sure not to cut the cabinet in the “No Cut” area.
Important: Remove Blower Assembly and Panel Loop before cutting
cabinet to avoid cutting wires.
Note: If using one transition, the thermostat wiring will exit on the
transition side.
Note: If using a filter boxes, use transitions, if possible, to attach the
filter boxes to the modular blower cabinet.
Use four corner guides
to create cutout
No Cut Area
Refer to Step 16. Step 17. Step 18. Step 19.
Use four corner guides
to create cutout
No Cut Area
Refer to Step 16. Step 17. Step 18. Step 19.
