Trane P0V0 Series User Manual

20
P0V0-SVX001-1A-EN

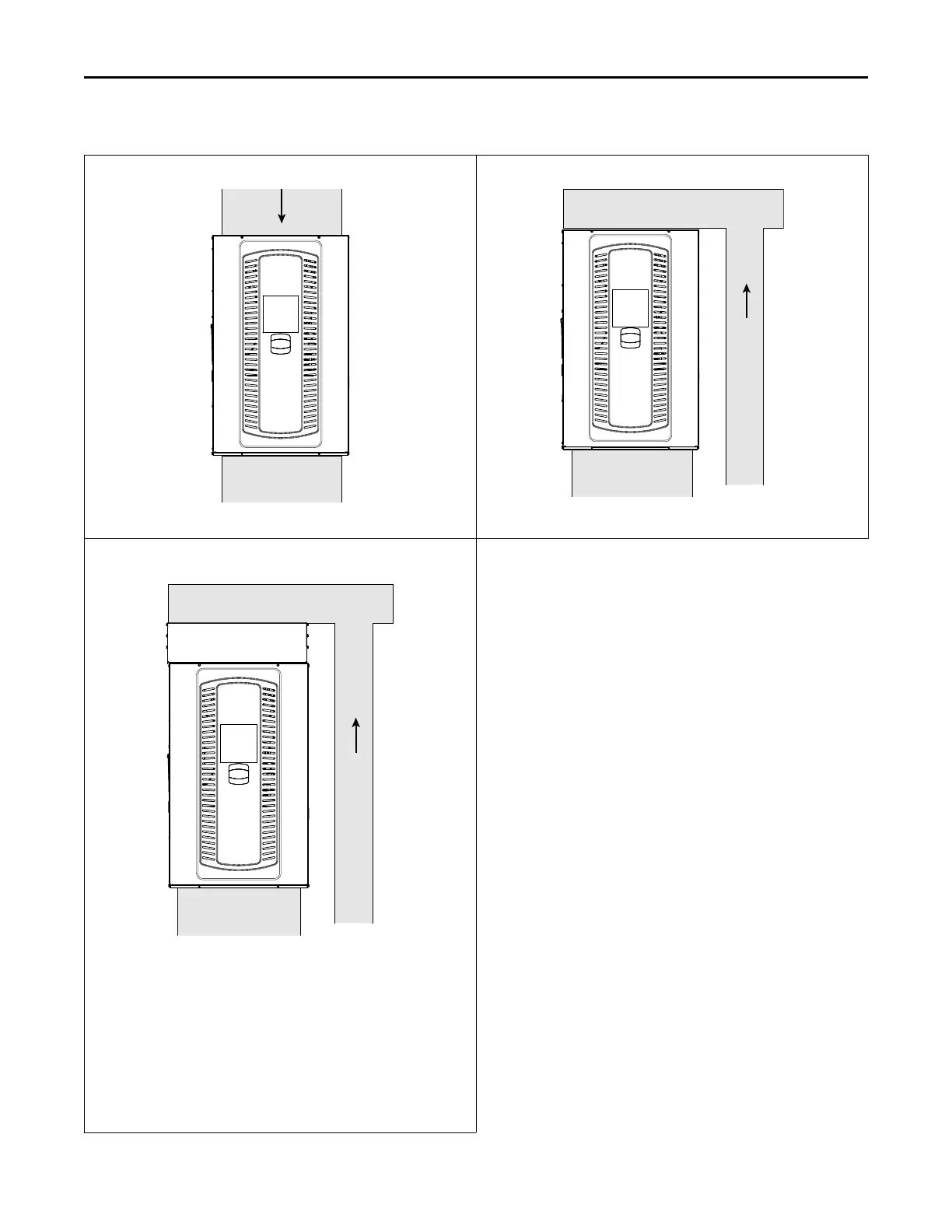

Table 5. Return Duct Connections (continued)
Downflow Modular Blower with Top Return Downflow Modular Blower with Top Return and Plenum
Refer to Step 20. Step 21. Step 3. Step 4.
Refer to Step 20. Step 22. Step 3. Step 4.
Downflow Modular Blower with Top Return and Plenum with
Filter Box
FILTER
Refer to Step 20. Step 23. Step 24. Step 4.
Installation Instructions
1. Remove the bottom plate.
2. Set the modular blower on the base inside closet.
3. Install remote filter.
4. Seal per local codes and requirements.
5. Set the modular blower on the filter box inside closet.
6. Must have grille present for air.
7. Set the modular blower on the ducted pedestal. The ducted
pedestal will use ducted air from a remote location.
8. Install filter at a remote location.
9. Set the modular blower on the filter box. The ducted pedestal will
use ducted air from a remote location.
10. Create ducting and set the modular blower in place.
11. Match the filter cabinet flush to the back and bottom sides of the
modular blower cabinet and secure in place with screws.
12. Mark the two areas to be cut out for the return air.
13. Cut out the two sections of the cabinet and BAYLIFT kit to be
removed.
14. Attach ducting to the filter box.
15. The ducted pedestal will use ducted air from a remote location.
16. Using guides, remove the cutout for the side return.
17. Create ducting and set the modular blower in place. Use screws to
attach ducting to the modular blower cabinet.
18. Seal bottom panel per local codes and requirements.
19. Seal all other panels per local codes and requirements.
20. Remove the top plate.
21. Attach the ducting to the top of the modular blower.
22. Attach the plenum ducting to the top of the modular blower.
23. Attach the filter box to the top of the modular blower.
24. Attach ducting.
GGeenneerraall IInnssttaallllaattiioonn
