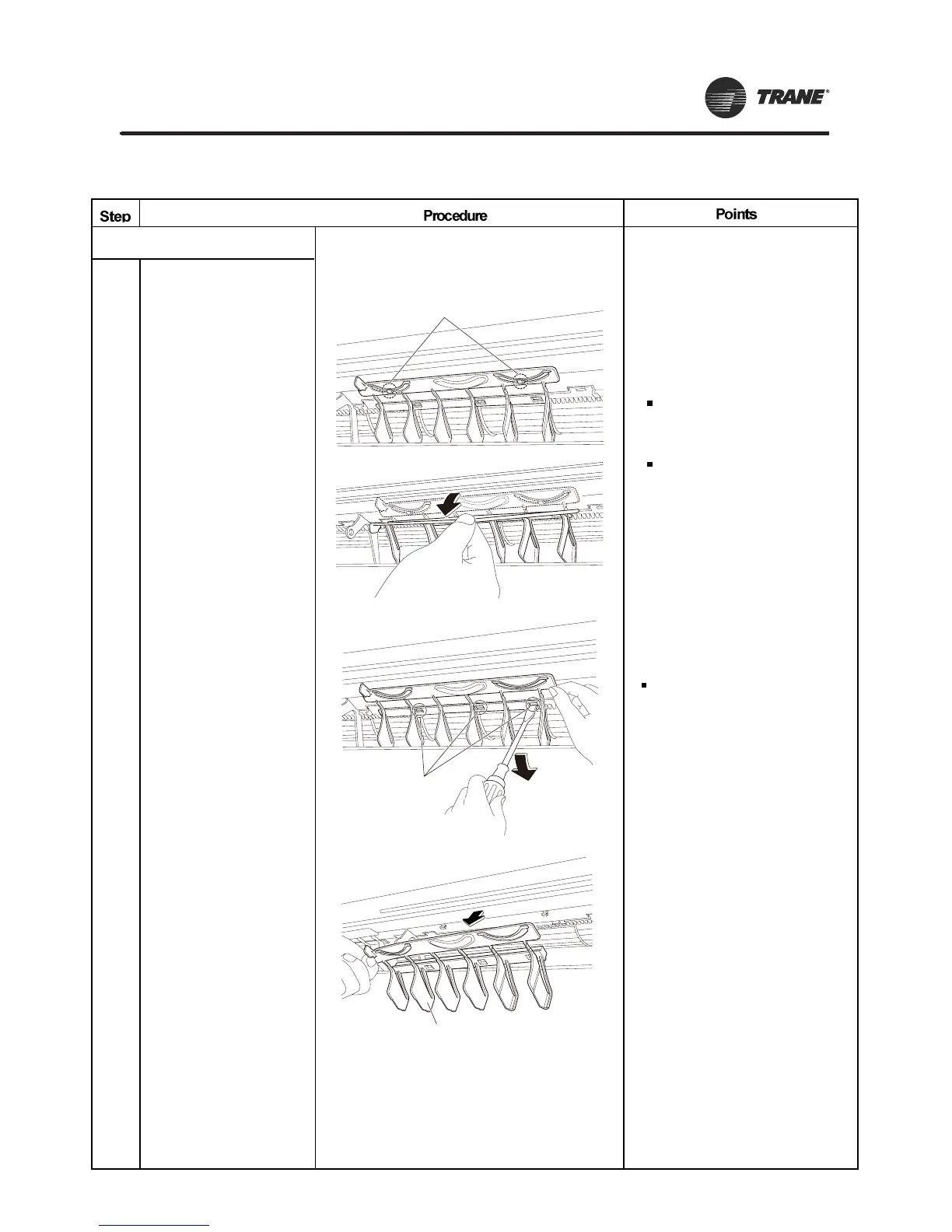

6. Remove the Vertical blade
A set of vertical blade has 6
fins as on ASSY.
(It is impossible to replace
only one fin.)
The set of vertical blades is
not marked for difference
between right and left.
1
Unfasten the hooks at
the upper 2 positions.
2
Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
3
Remove the vertical
blade.
Repeat the same procedure
to remove the vertical blade
on the other side.
Hook
Hook
Vertical blade
43
