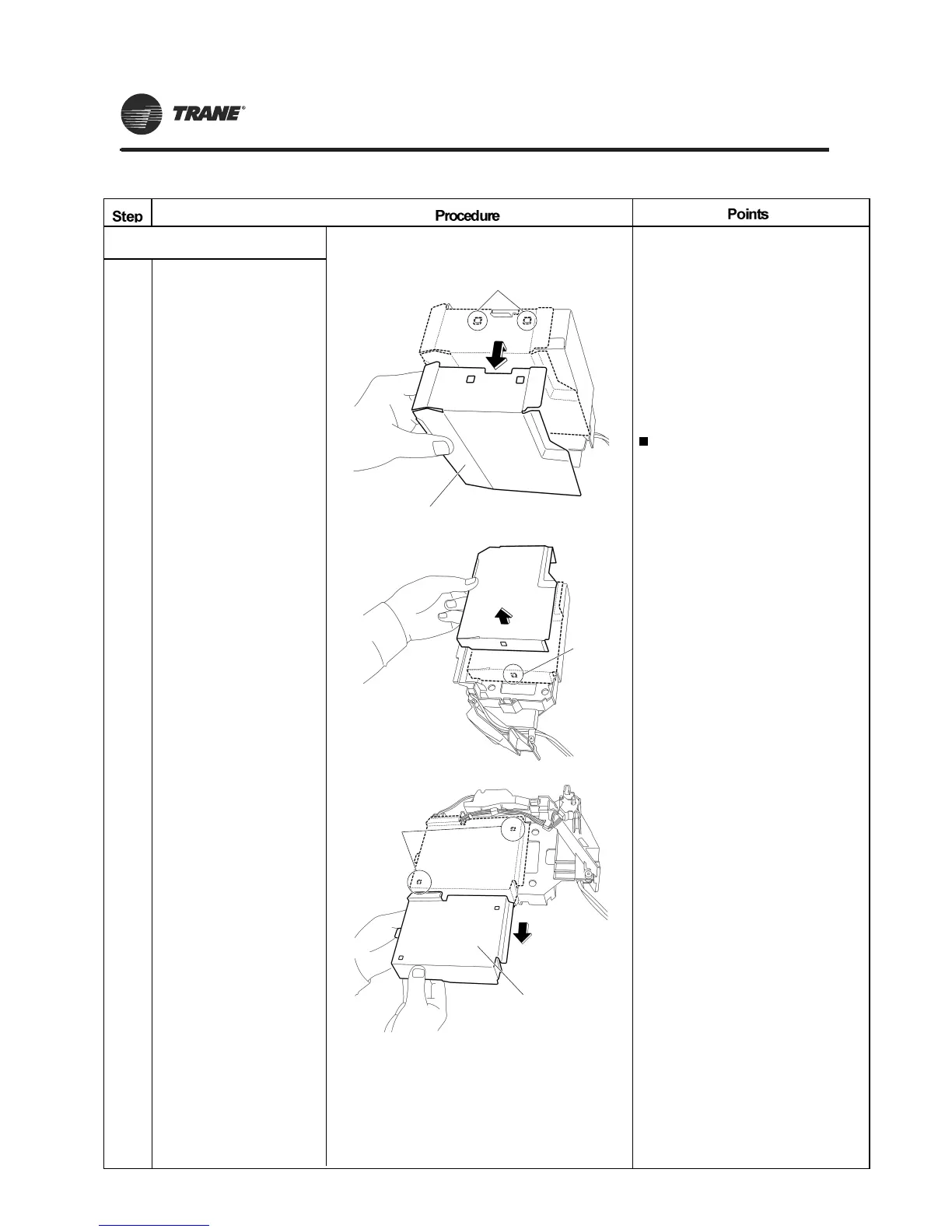

8. Remove the shield plate.
Remove the electrical box according
to the “Removal of Electrical Box”.
1
Unfasten the hooks at
the upper 2 positions of
the shield plate.
2
Unfasten the hook at
the lower position, and
remove the shield plate
(1).
3
Lift the shield plate (2)
and unfasten the 2
hooks.
4
Slide the shield plate
(2) and remove it.
Hook
shield plate (1)
Hook
Hook
Shield plate (2)
