2
DC fan motor
M4×16
1
Fan motor
Fan motor fixing frane
Electrical box

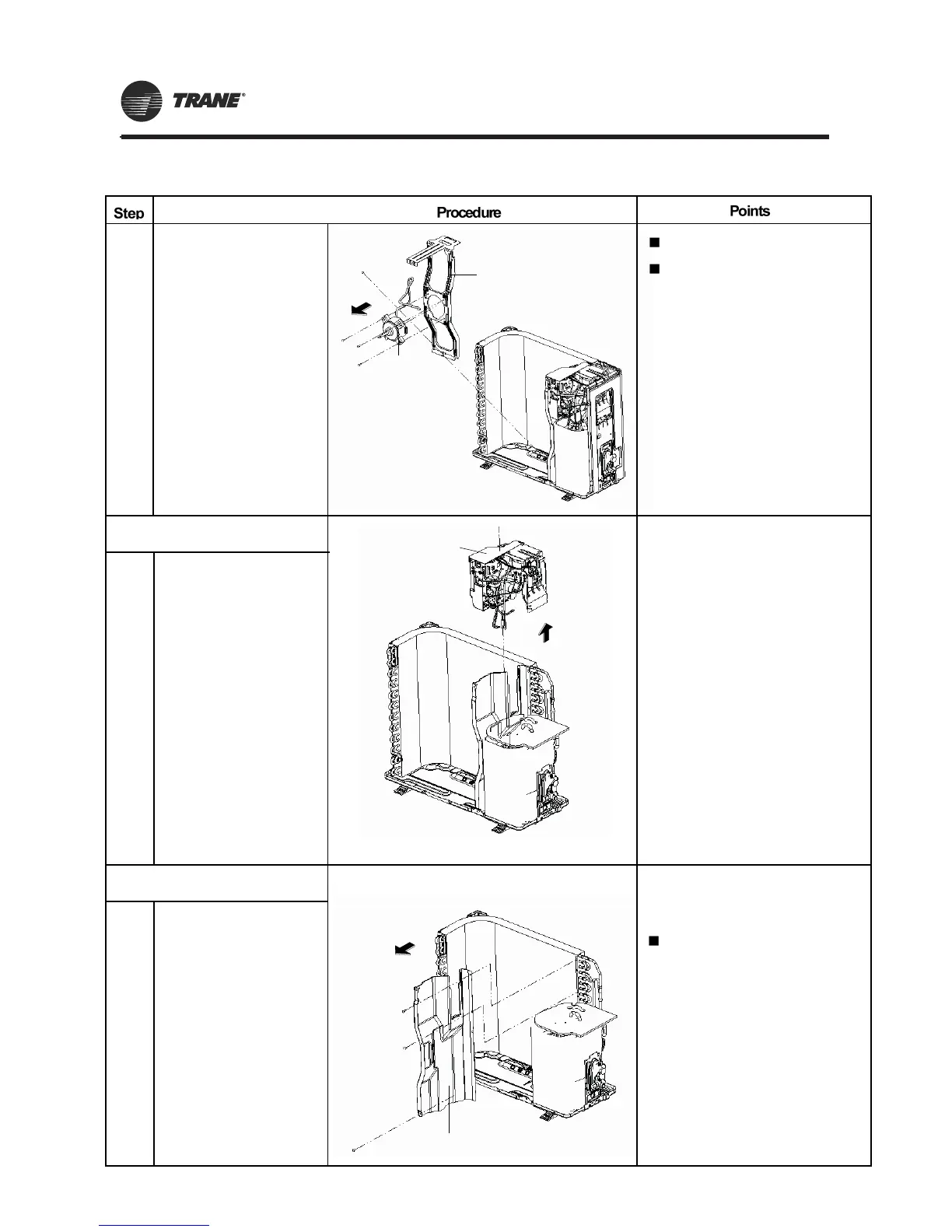

5.Remove the electrical box.
6.Remove the partition plate.
1
Loosen the 2 screws.
2
The partition plate has
a hook on the lower
side. Lift and pull the
partition plate to remove.
Partition plate
The partition plate is fixed to
the bottom frame with a hook.
Remove the 4 tapping screws
fixing the motor. Pull out the
lead-out wire and remove the
motor. Remove the 2 tapping
screws fixing the motor
support. Lift to remove
the motor support.
Remove the 2 screws fixing
the cover of electric box. Lift to
remove the cover. Remove the
screws fixing the electric box
subassembly. Loosen the wire
and disconnect the termina
Lift to remove the electric
box subassembly.
56
