Removal Procedure of Outdoor Unit
Warning Be sure to wait 10 minutes or more after turning
off all power supplies before disassembling work.
1. Features

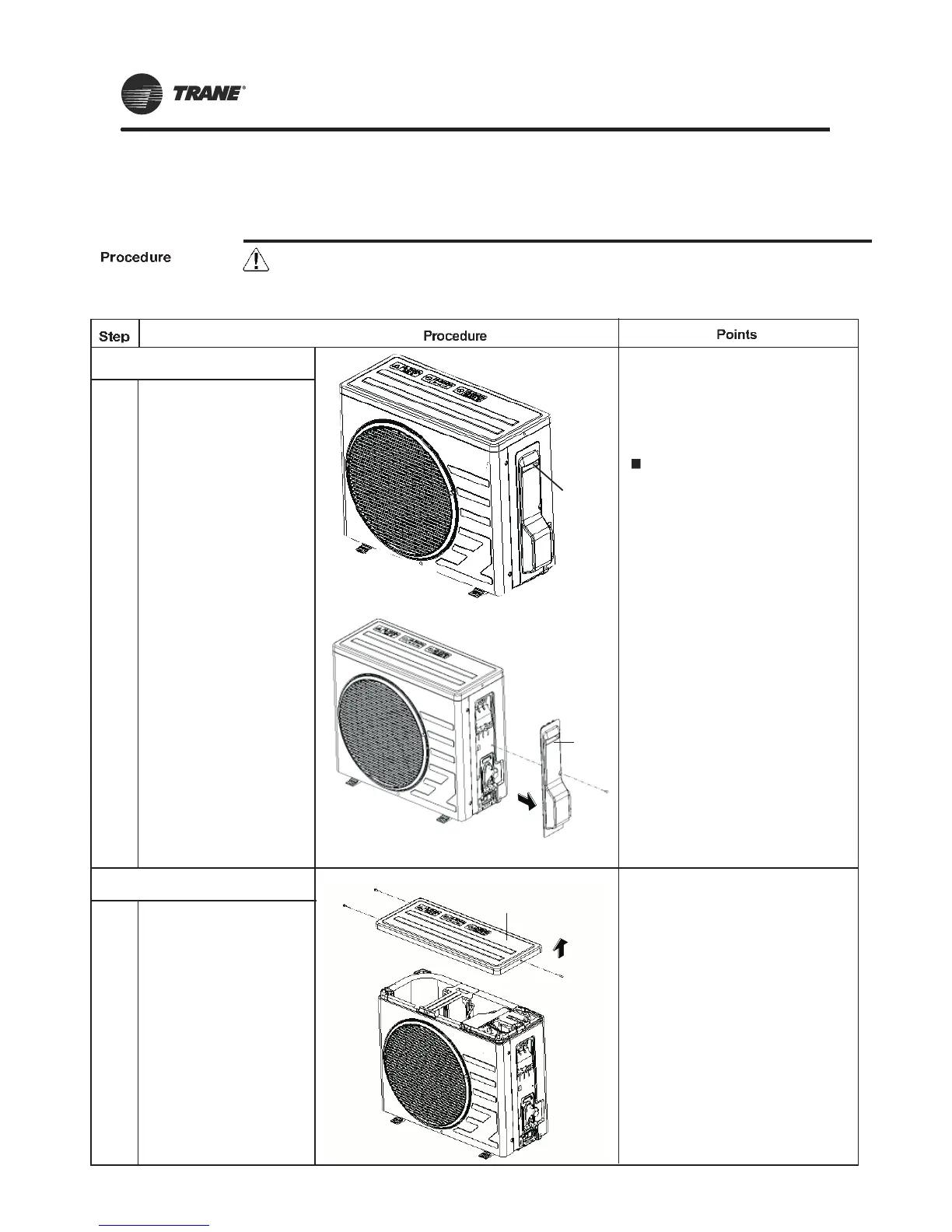

The stop valve cover has 6
hooks.
Loosen the screw of the
stop valve cover.
Pull down the stop valve
cover and remove
it.
1
Loosen the 3 screws
(front, right, left) and lift
the top panel.
1
Handle
Stop
valve
cover
2. Removing air filters
Top panel
54
