5

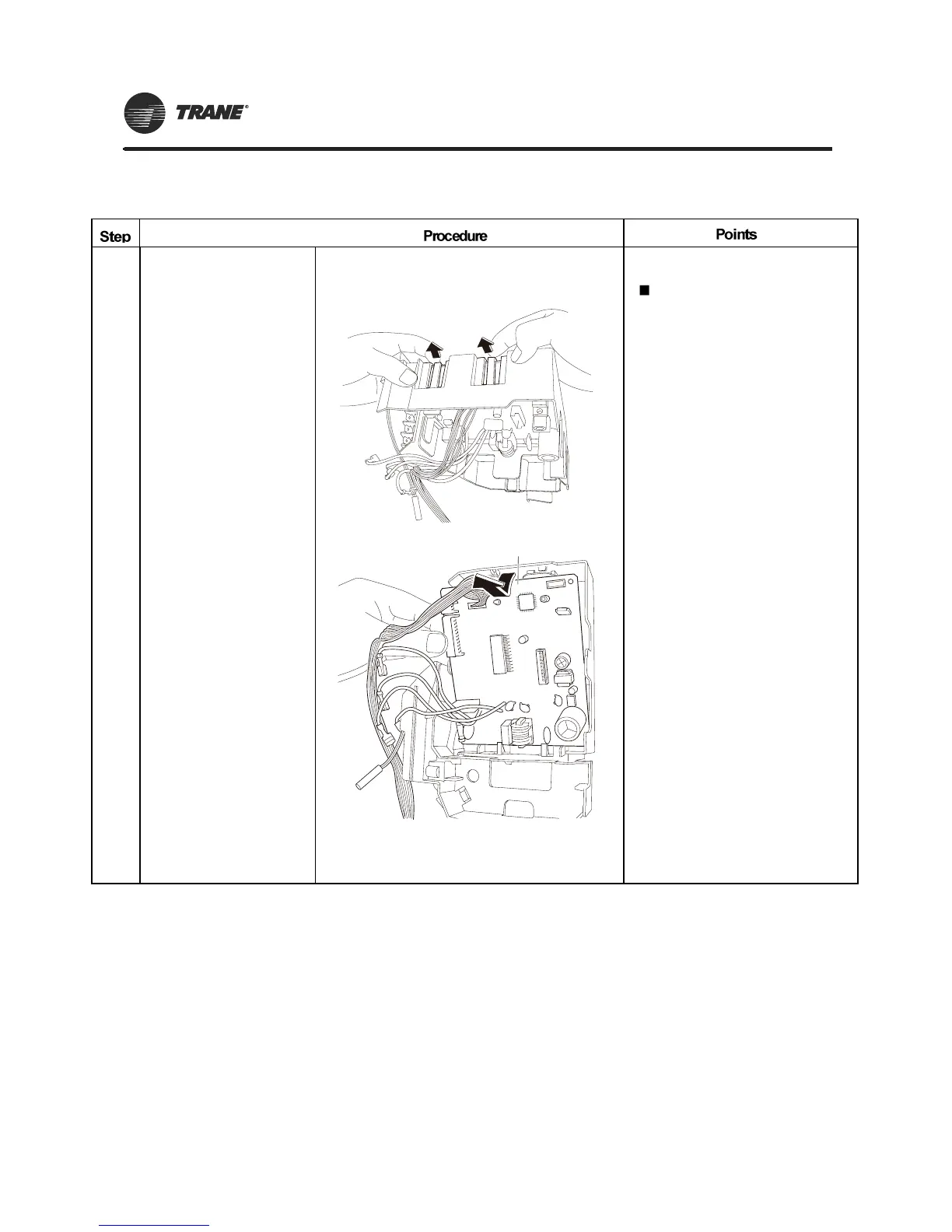

To remove the contr
ol
PCB, unfast
en the 2
hooks at t
he upper part
from the r
ear side.
6
Lift
up the upper part of
the contr
ol PCB, and
remo
ve it.
Control PCB
The control PCB is
integrated with the power
supply PCB.
48
47
49
Table of Contents
Warnings, Cautions and Notices
2
Environmental Concerns
2
Warnings: R410A Refrigerant under Higher Pressure than R22
3
Table of Contents
4
Specifications - 60Hz Heat Pump Models
5
Specifications - 60Hz Cooling Only Models
7
Specifications - 50Hz Heat Pump Models
9
Specifications - 50Hz Cooling Only Models
11
Piping Specifications
13
Capacity Variation Ratio According to Pipe Length
15
System Diagram
16
Indoor Unit
16
Outdoor Unit
16
Electrical Characteristics
17
Dimensions - Indoor Units
18
Dimensions - Outdoor Units
19
Capacity Tables
20
Wiring Diagrams - 4MYW5509A1 4TYK5509A1
28
Wiring Diagrams - 4MYW5512A1 - 4TYK5512A1
28
Wiring Diagrams - 4MYW5518A1 4TYK5518A1
29
Wiring Diagrams - 4MYW5524A1 4TYK5524A1
29
Wiring Diagrams - 4MXW5509A1 4TXK5509A1
30
Wiring Diagrams - 4MXW5512A1 4TXK5512A1
30
Wiring Diagrams - 4MXW5518A1 4TXK5518A1
31
Wiring Diagrams - 4MXW5524A1 4TXK5524A1
31
Air Velocity Distribution
32
Sound Level
33
Operating Functions
34
Operation of Remote Controller
34
Temperature Parameters
34
Fundamental Functions - Cool Mode
34
Dry Mode
35
Heat Mode
35
The Condition and Process of Defrosting
36
Fan Mode
36
Auto Mode
36
Mode Selection
36
Other Control
36
Temp Setting Button
37
Auto Key
37
Timer Control
37
Sleep Control
37
Indoor Fan Control
38
Swing Control
38
Common Protection Function in each Mode
38
Overload Protection
38
Compressor Discharge Temperature Protection
39
Communication Malfunction
39
Module Protection
39
Disassembly Procedures
40
Removal Procedure of Indoor Unit
40
External Features
40
Removing Air Filters
40
Opening and Shuttingfront Panel
41
Opening and Closing of Service Cover
42
Removal of Front Grille Assembly
42
Remove the Vertical Blade
43
Remove Electrical Box
44
Remove the Shield Plate
46
Disconnect the Refrigerant Piping
49
Remove the Indoor Unit
50
Remove Cross Flow Fan Fan Motor
52
Remove Ring of Bearing
52
Remove Cross Flow Fan and Motor Sub-Assy Screw
52
Remove Motor Sub-Assy
53
Remove Fan Motor
53
Removal Procedure of Outdoor Unit
54
Outdoor Unit Features
54
Removing Air Filters (Outdoor Unit)
54
Remove the Fan Motor
55
Remove the Electrical Box
56
Remove the Partition Plate
56
Remove the Sound Blanket
57
Remove the Partition Plate (Outdoor Unit)
57
Remove Compressor
58
Troubleshooting
59
Air Conditioner Cannot Start up
59
Troubleshooting Chart
60
Compressor Is too Hot
63
Malfunction Display Section
64
9, 12 MBH - 60 and 50 Hz (no LED Lights on Outdoor PCB)
64
18, 24 MBH - 60 and 50 Hz
65
