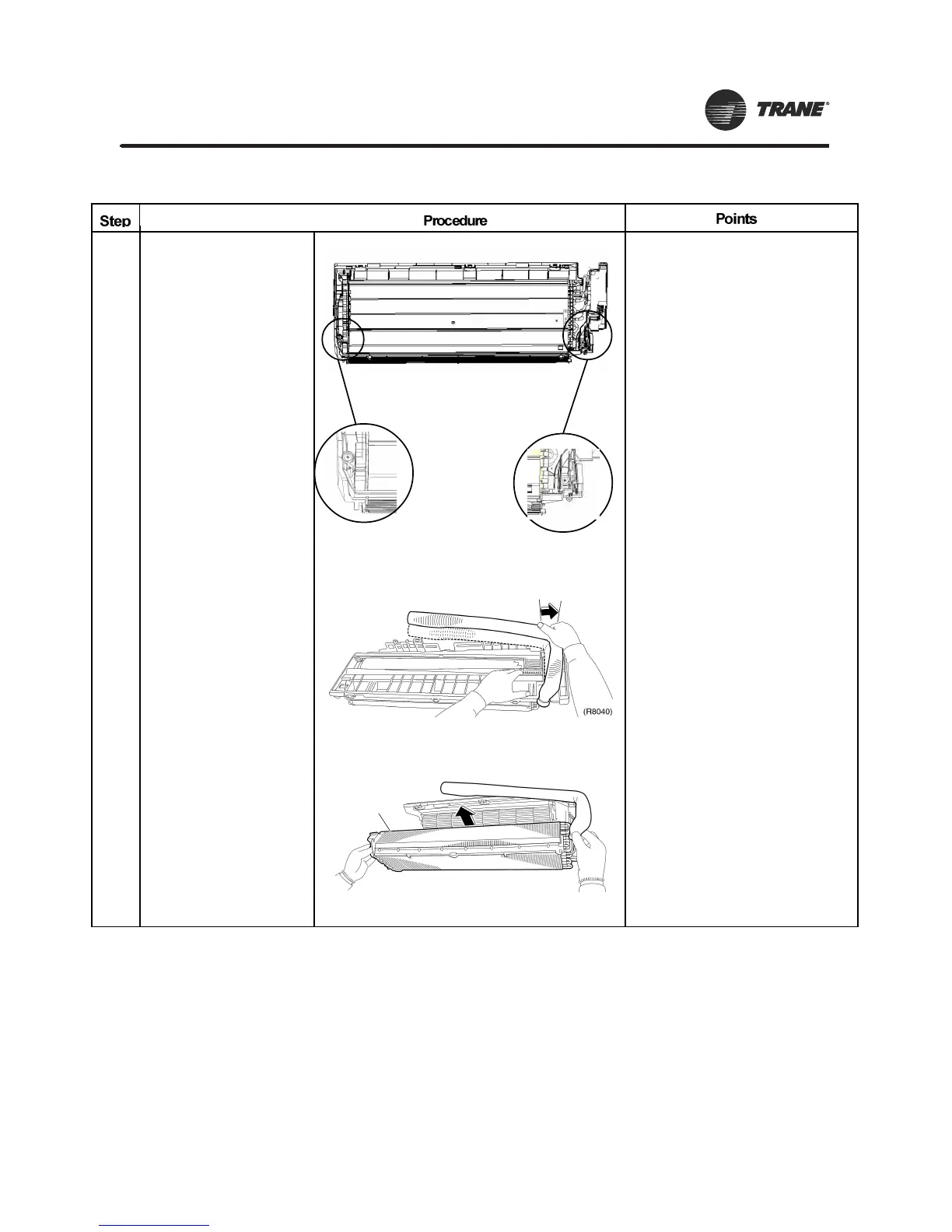

Loosen the 2 screws,
in the right and the left,
which fix the Evaporator
Assy.
3
4
Widen the auxiliary
piping to the extent of
10°~20°.
5
Pull the heat exchanger
to the front side to undo
the hooks completely,
and then lift it.
Auxiliary piping
Heat exchanger
