Trane R Series Installation, Operation And Maintenance

Controls Interface
124 RTAC-SVX01J-EN

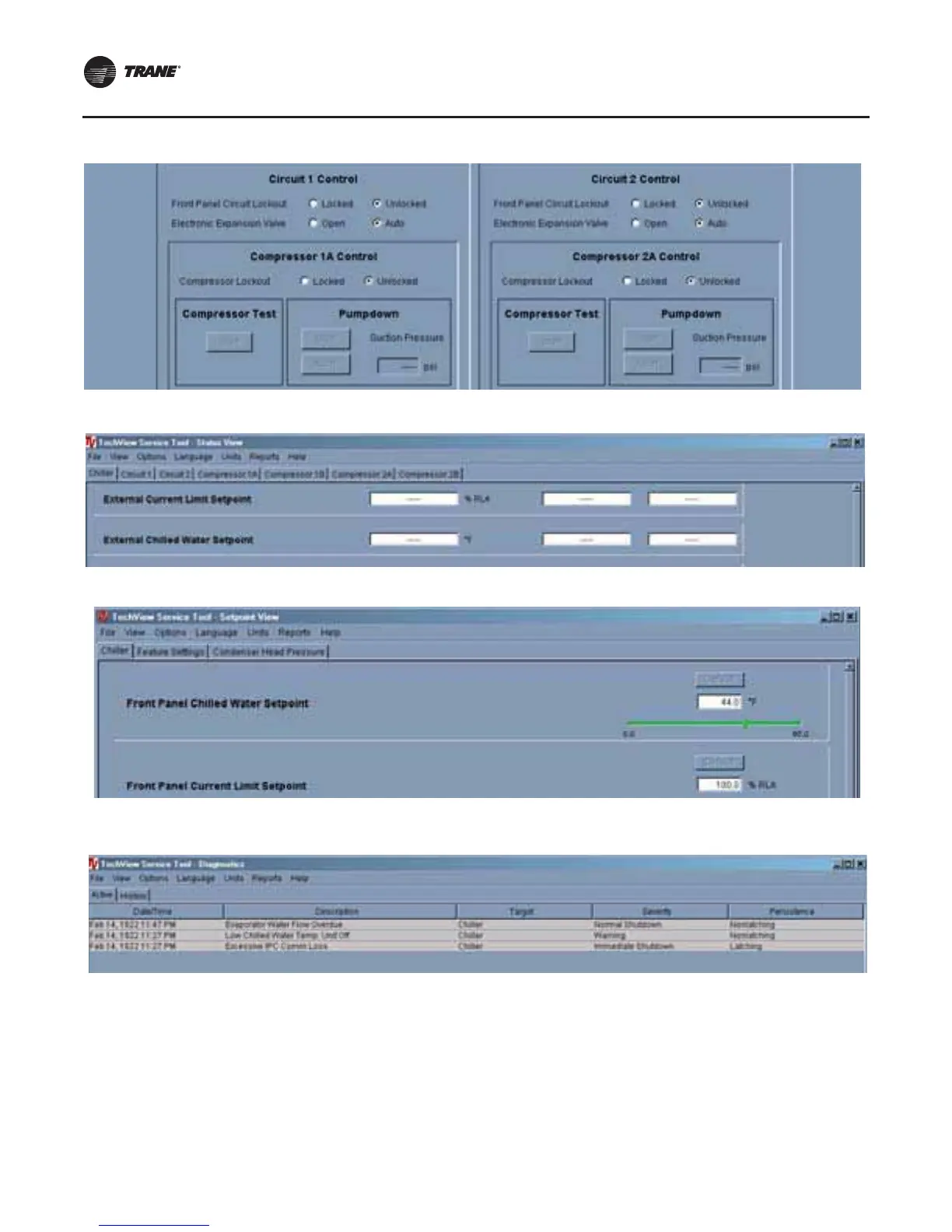

Figure 36. Compressor service view
Figure 37. Status view
Figure 38. Setpoint view
(a)
(a)Screenshot is representation only. Values shown may not correspond to actual min/max levels in Table 62, p. 119.
Figure 39. Diagnostic view
