RTAC-SVX01J-EN 23
Dimensions and Weights
Clearances
Provide enough space around the outdoor unit to allow the
installation and maintenance personnel unrestricted
access to all service points. Refer to submittal drawings for
the unit dimensions. A minimum of 4 feet (1.2 m) is
recommended for compressor service. Provide sufficient
clearance for the opening of control panel doors. See
Figure 5, p. 23 through Figure 9, p. 25 for minimum
clearances. In all cases, local codes which require
additional clearances will take precedence over these
recommendations.

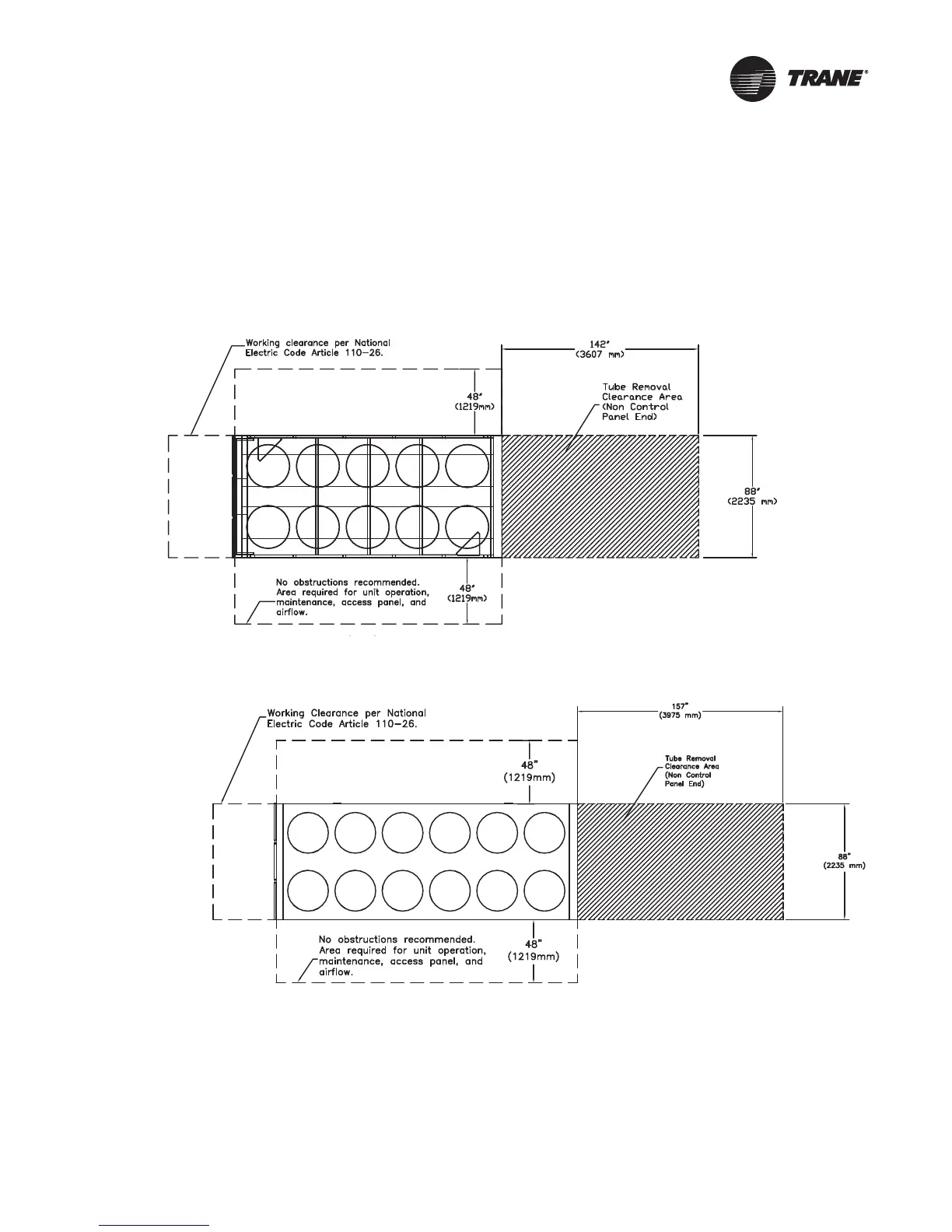

Figure 5. Recommended unit clearance — 15 foot bases
Figure 6. Recommended unit clearances 18-21 foot bases
