Dimensions and Weights
24 RTAC-SVX01J-EN

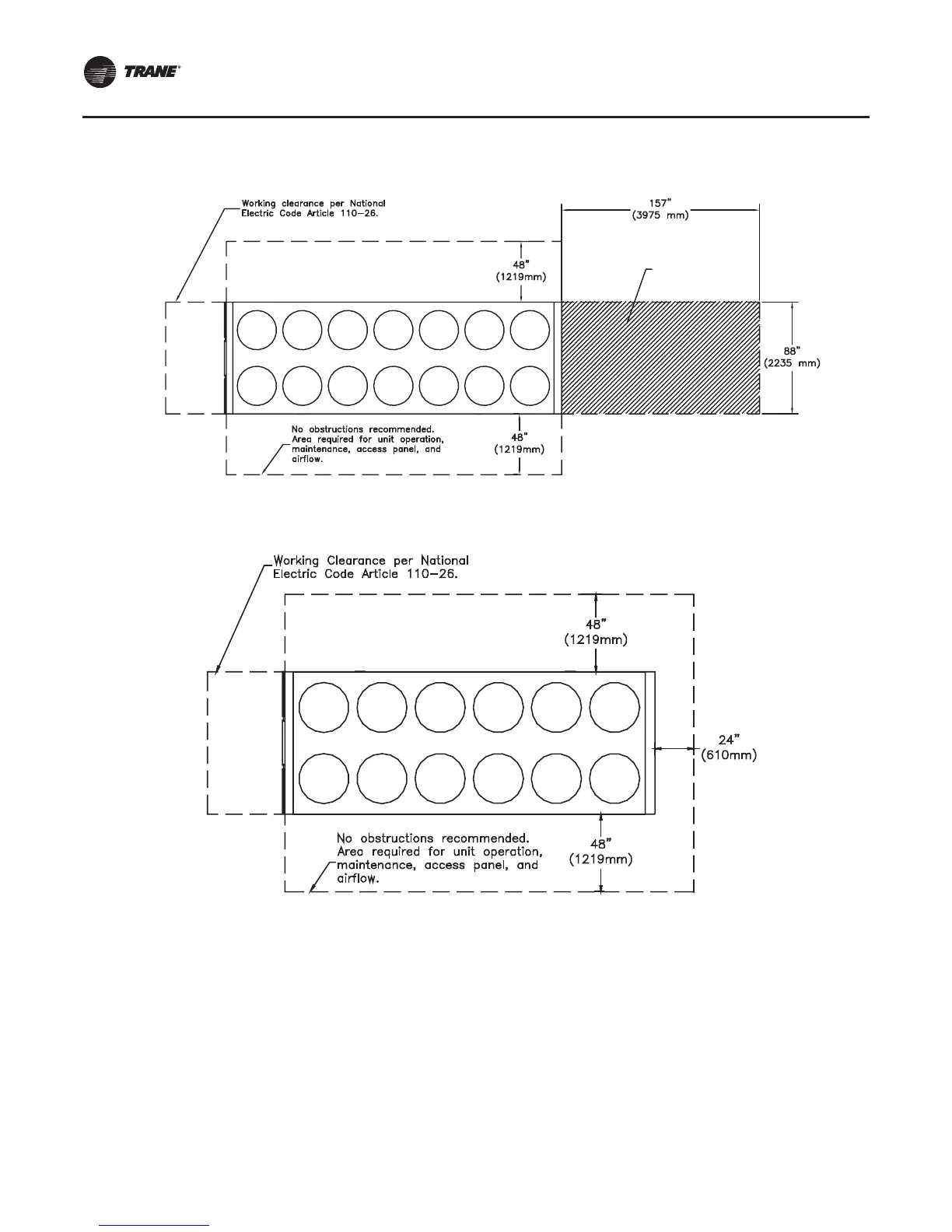

Figure 7. Recommended unit clearances 30-45 foot bases
Tube Removal
Clearance Area
(Non DynaView
Control Panel End)
Figure 8. Recommended remote evaporator unit clearances — 15-30 foot bases
