Unit Mounting

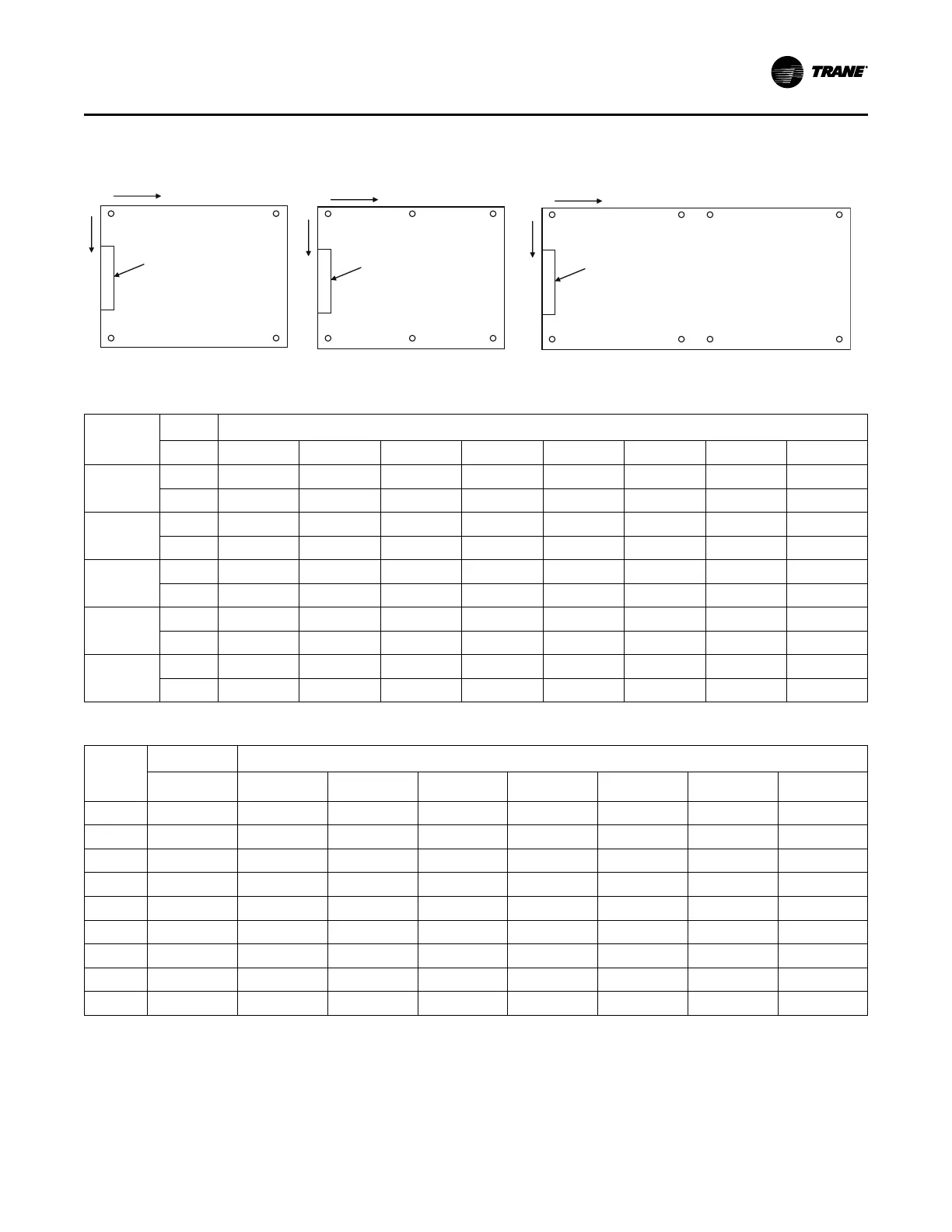

Figure 30. Mounting location
Control
Panel
80-120 Ton
1
2
3
4
5
6
7
8
Y
X
Control
Panel
Control
Panel
20-30 Ton
40-60 Ton
1
1
2
2
3
3
4
4
5
6
Y
Y
X
X
Table 7. Isolator mounting locations (in)
Unit Size
(tons)
Mounting Location
1 2 3 4 5 6 7 8
20/25/30
X 8.00 8.00 80.125 80.125 - - - -
Y 58.75 1.25 58.75 1.25 - - - -
40
X 8.00 8.00 44.125 44.125 80.25 80.25 - -
Y 87.125 1.25 87.125 1.25 87.125 1.25 - -
50/60
X 8.00 8.00 56.875 56.875 105.75 105.75 - -
Y 87.125 1.25 87.125 1.25 87.125 1.25 - -
80
X 8.00 8.00 80.125 80.125 108.125 108.125 168.25 168.25
Y 87.125 1.25 87.125 1.25 87.125 1.25 87.125 1.25
100/120
X 8.00 8.00 105.625 105.625 121.625 121.625 219.25 219.25
Y 87.125 1.25 87.125 1.25 87.125 1.25 87.125 1.25
Table 8. RAUJ point loading weights (lbs)
Unit
Size
(tons)
Mounting Location
1 2 3 4 5 6 7 8
20 475.5 383.3 403.2 311.0 — — — —
25 491.2 399.3 412.2 320.3 — — — —
30 491.2 399.3 412.2 320.3 — — — —
40 452.3 415.7 440.3 403.7 428.3 391.8 — —
50 365.5 331.0 427.8 393.3 700.1 650.3 — —
60 367.2 332.8 426.0 391.6 692.5 642.9 — —
80 798.3 462.1 786.7 450.5 785.1 448.9 772.4 436.1
100 871.1 609.5 881.0 616.2 882.6 432.1 892.5 436.8
120 988.2 614.7 948.3 587.4 941.8 583.0 901.8 555.8
