SS-SVX11K-EN
75

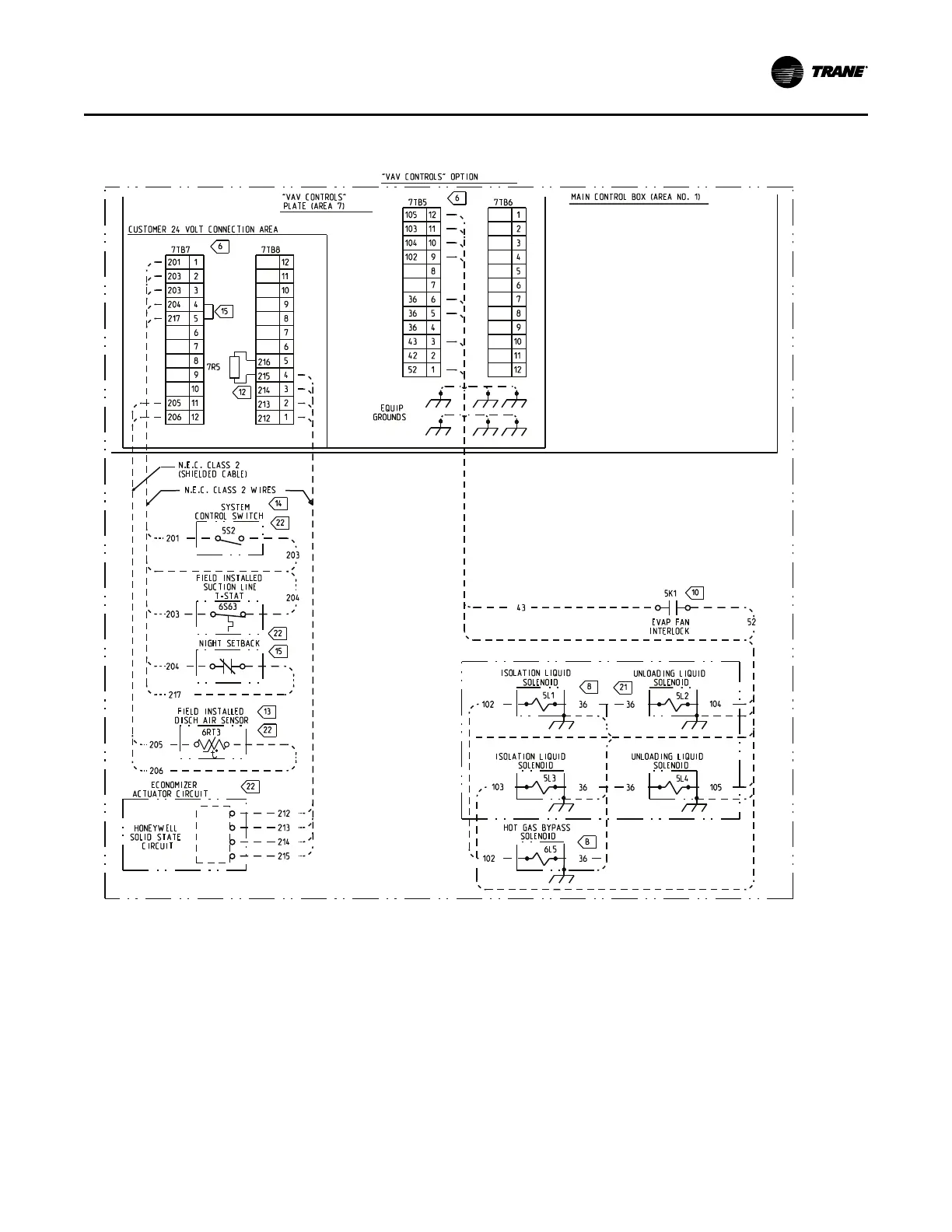

Figure 50. Field connection diagram RAUJ 20 to 60 tons — variable air volume control
2307-9122
NNoottee:: See wiring notes on Figure 47, p. 72.
IInnssttaallllaattiioonn EElleeccttrriiccaall
