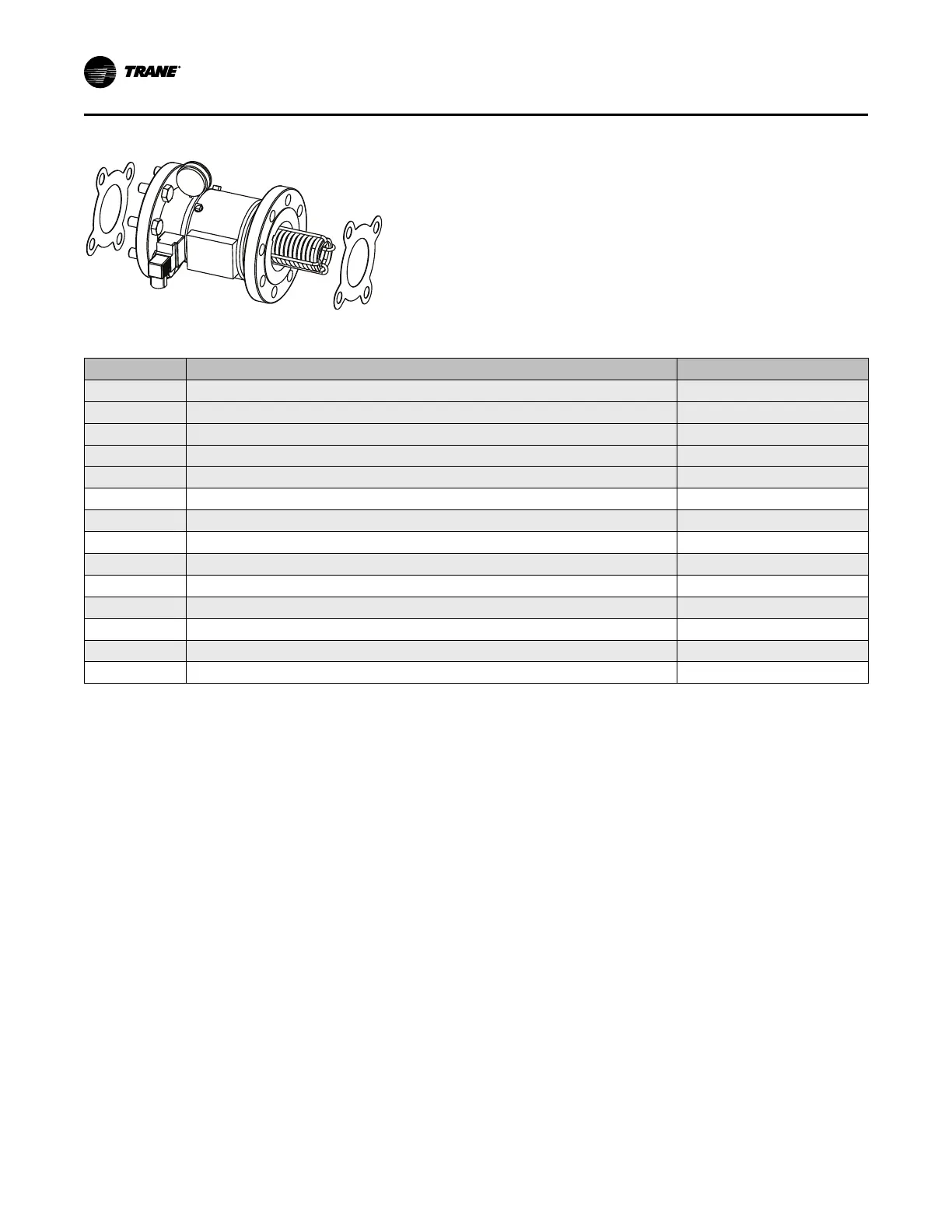

Figure 7. Three-inch (76.2 mm) RuptureGuard valve assembly kit contents
Table 1. Three-inch (76.2 mm) RuptureGuard valve assembly kit contents
Quantity Item Description
Received
1 3 IN. RUPTUREGUARD VALVE ASSEMBLY
1
· VALVE; RELIEF; 3 IN. RESEATABLE RELIEF
—
1
· CONTROL; HIGH-PRESSURE; 10 OP/6 CL
—
1
· EXCESS FLOW VALVE W/SLEEVE
—
1
· GAUGE; 0–60 PSI
—
2
GASKET; FLANGE, 0.031 THK X 5.00OD X 3.68 ID
8
SCREW; HEX, 5/8-11 X 2.25, HEX CAP
1
BAG; FLAT, 9W OPNG X 12.50 LG X 3MIL W/TRANE LOGO
1
LABEL; LOGOS, NAMEPLATE
1 LITERATURE CTV-SVX06F-EN
1
TAG; NOTE - PIPE THREAD SEALANT
1
GASKET; RUBBER; 0.125T X 5.25 OD X 3.75 ID
(a) (b)
4
WASHER; 0.375 ID X 0.875 OD X 0.083 THK
(a)(b)
4
SCREW; 3/8-16 X 1.75, HEX CAP
(a)(b)
(a)
This item will be used if the chiller flange has ONLY four holes.
(b)
If the casting has two different hole sizes in the flange, rubber gaskets MUST be used with the 3/8-in. (9.5-mm) fasteners.
