86
S9V2-SVX001-1A-EN

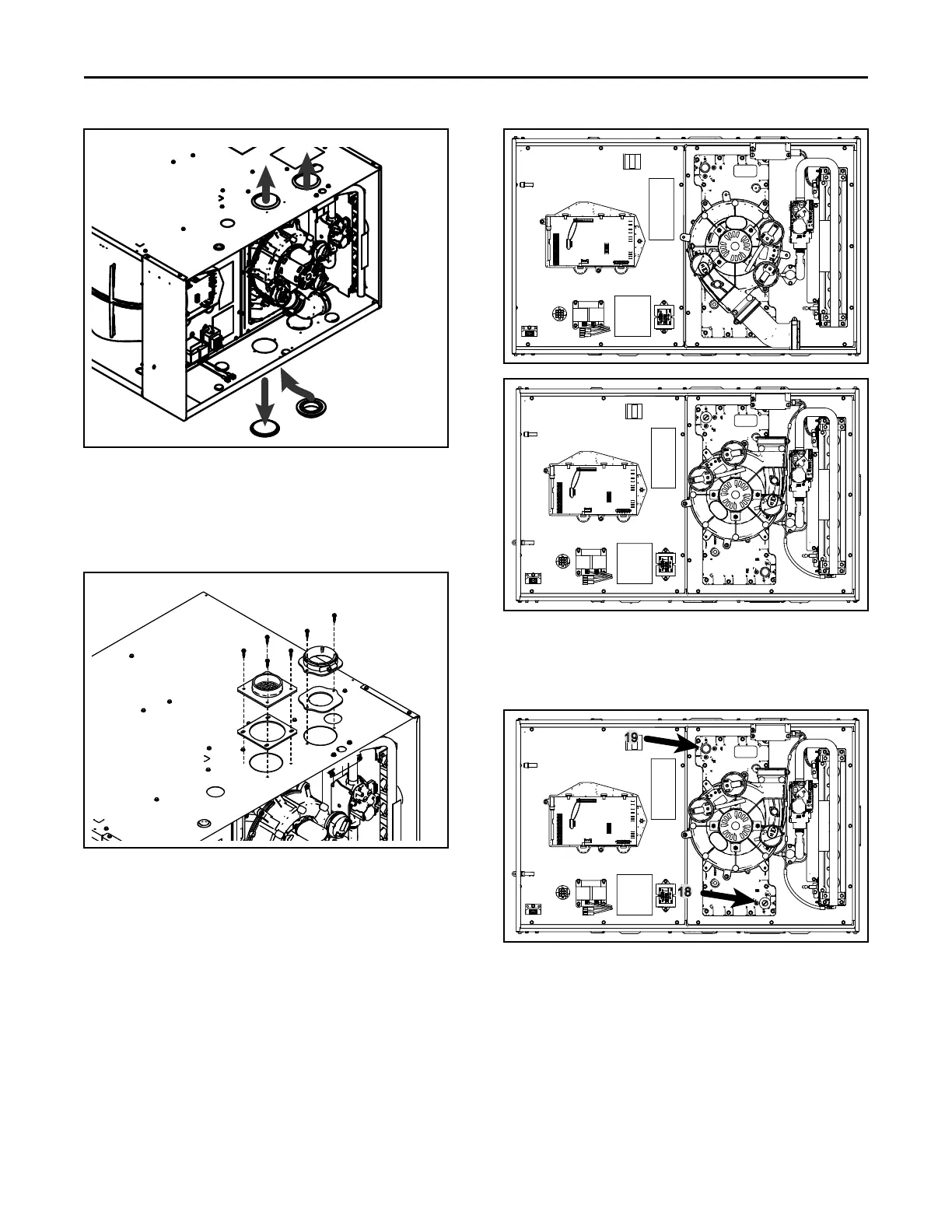

12. Attach the vent outlet gasket to the vent outlet.
13. Install vent outlet to top of cabinet using 2 screws
supplied in the doc pack.
14. Install vent inlet gasket and vent inlet using 4
screws supplied in the doc pack.
15. Remove three inducer screws.
16. Rotate the inducer so that the outlet is pointing
vertically.
17. Use the three inducer screws to reattach the
inducer to the cold header. Torque to 30 in.-lbs. Do
not overtighten.
18. Remove condensate drain plug from top right
location on cold header.
19. Place condensate drain plug onto the cold header
outlet located on the bottom left of the cold header.
20. Slide PVC through vent outlet adaptor and insert
into inducer outlet.
21. Twist to insure PVC is fully inserted.
22. Tighten the two clamps.
23. Install the combustion air inlet PVC pipe.
NNoottee:: The vent outlet adapter is used for strain relief
against the weight of the venting. The clamp
should be tightened after the internal connection
is made.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
