72
S9V2-VS-SVX001-1C-EN

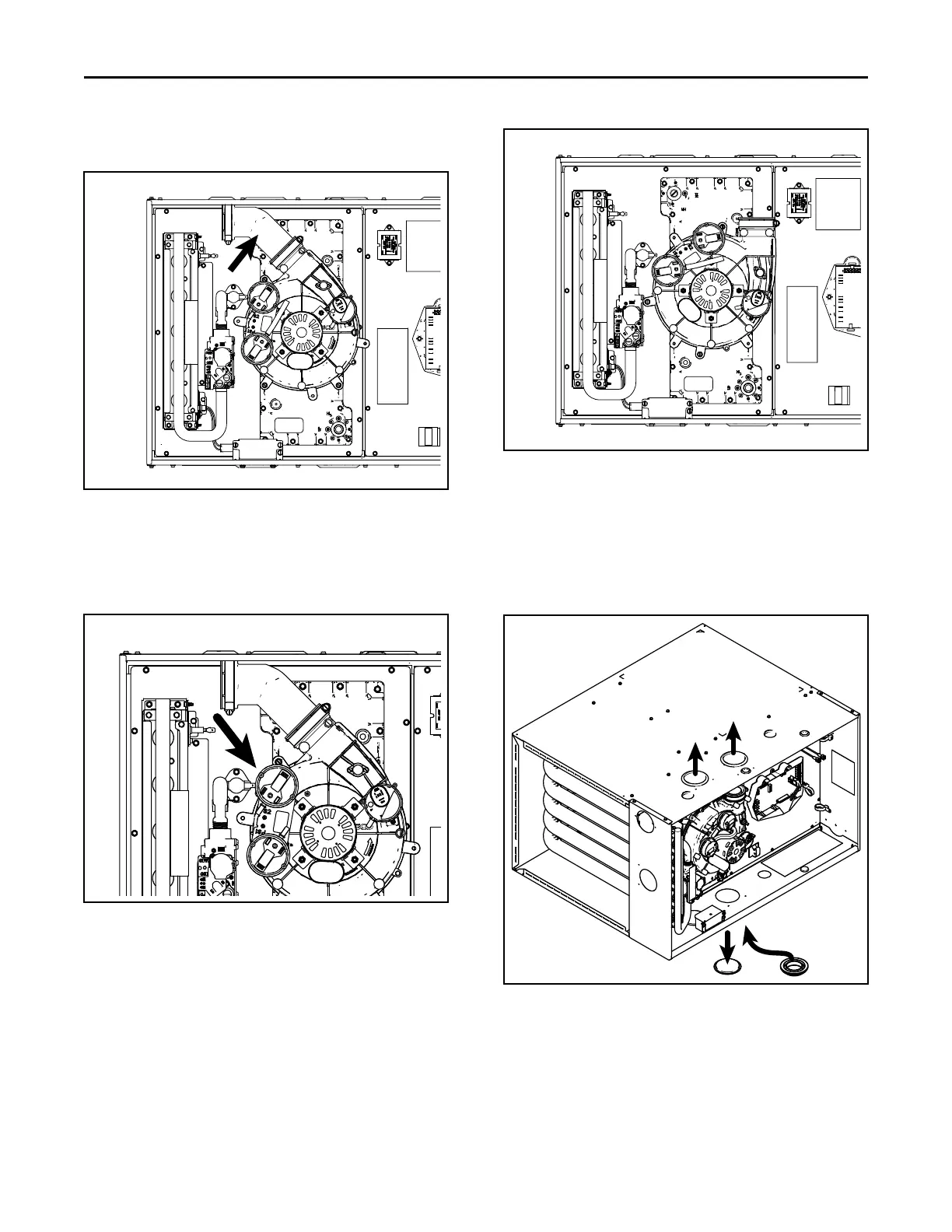

7. Loosen the clamp holding the 45° elbow. Remove
the elbow and discard.
8. Remove three inducer screws.
9. Rotate the inducer so that the outlet is pointing
vertically.
10. Use the three screws to reattach the inducer to the
cold header to 30 in.-lbs. Do not overtighten.
11. Remove 3” plug on left side of unit. To be used for
condensate trap.
12. Install condensate trap grommet.
13. Remove two 3” plugs on right side of cabinet. To be
used for combustion air exhaust and inlet.
14. Reuse the two 3” plugs to seal the two 3” default
openings on the top of the furnace.
15. Attach the vent outlet gasket to the vent outlet.
16. Install vent outlet to top of cabinet using 2 screws
supplied in the dock pack.
17. Install vent inlet gasket and vent inlet using 4
screws supplied in the dock pack.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
